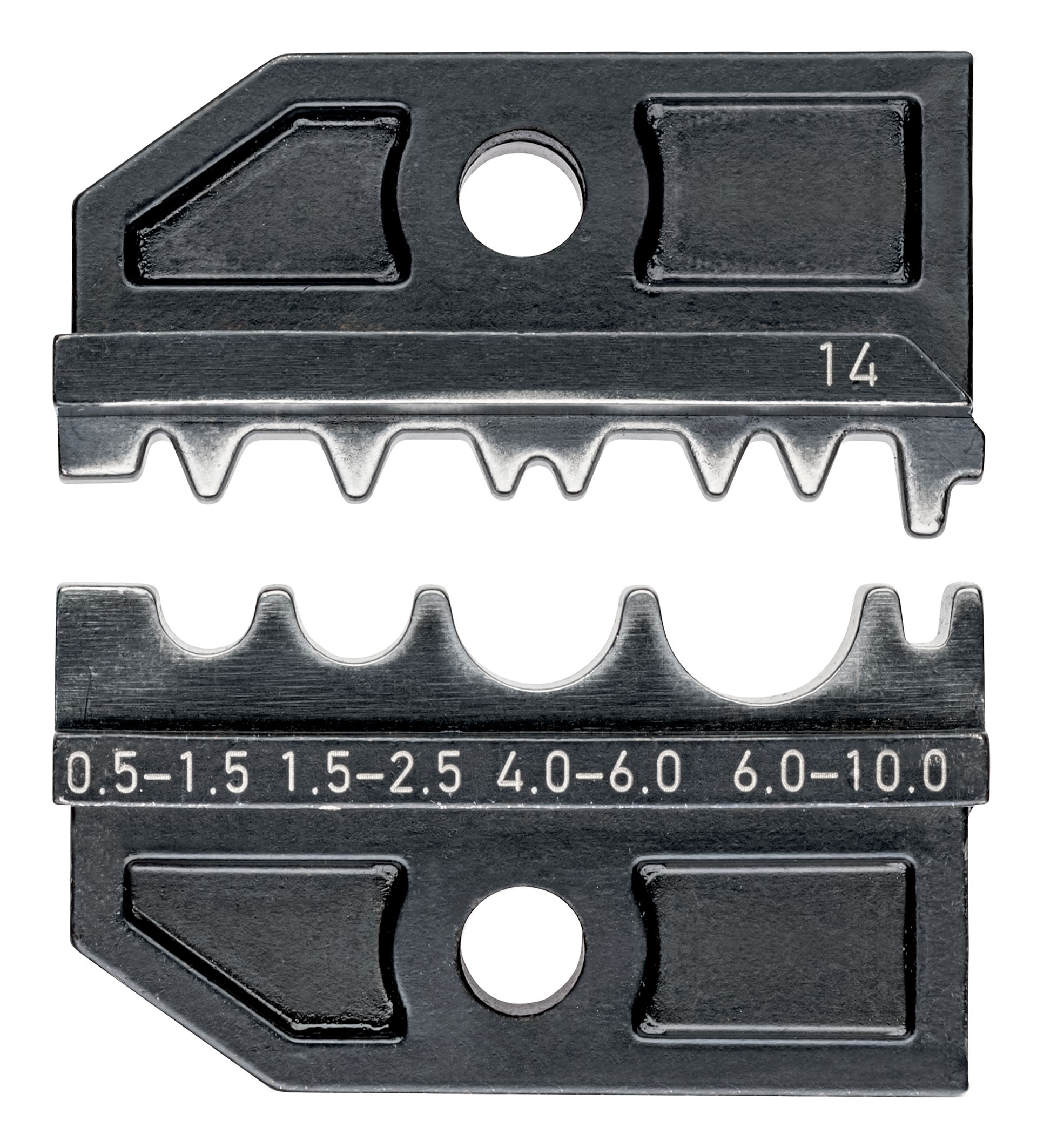

KNIPEX 97 49 14 Crimping die for non-insulated tube and crimp cable lugs and non-insulated butt and crimp connectors in accordance with DIN 46341
KNIPEX 97 49 14 Crimping die for non-insulated tube and crimp cable lugs and non-insulated butt and crimp connectors in accordance with DIN 46341
KNIPEX 97 49 14 Crimping die for non-insulated tube and crimp cable lugs and non-insulated butt and crimp connectors in accordance with DIN 46341 by KNIPEX is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £70.36 excl. VAT.
97 49 14 Crimping die Application: for non-insulated crimp terminals, tube and compression cable lugs in accordance with DIN 46234 and DIN 46235 and non-insulated crimp, butt and press connectors in accordance with DIN 46341 and DIN 46267 0.5-10 mm². - Application: for non-insulated cable connectors- Capacity in square millimetres: 0.5 — 10mm²- Number of crimp profiles: 4- AWG: 20 — 8
Product identifiers
SKU: 97 49 14
EAN: 4003773077756
GTIN: 4003773077756
Price: £ 70.36 Excl. VAT
Specifications
| AWG | 20 - 8 |
| RoHs | not applicable |
| Reach | does not contain SVHC |
| Width | 50 mm |
| Height | 17 mm |
| Length | 80 mm |
| Weight | 37 g |
| Profile | Mandrel-Crimp;W-Crimp |
