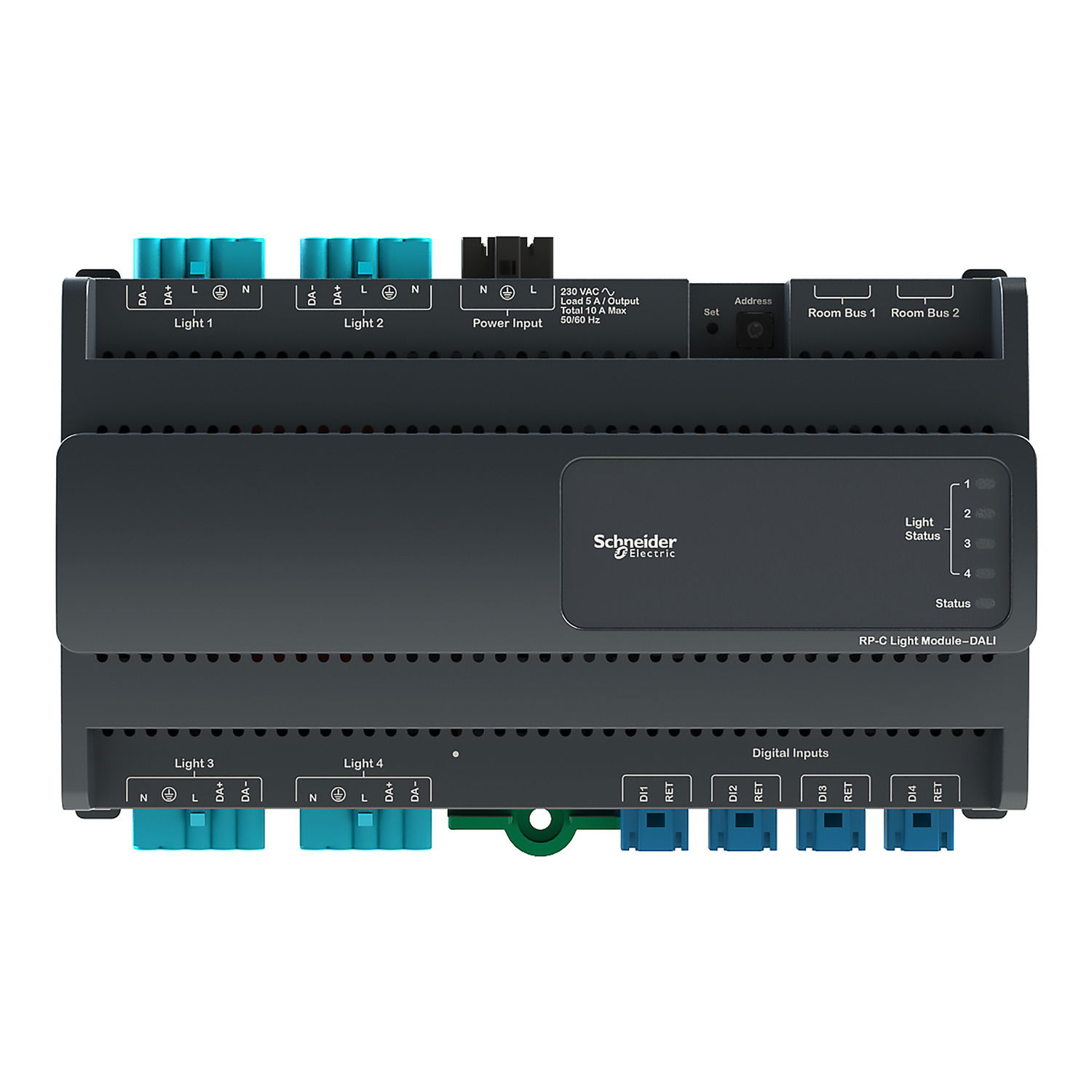

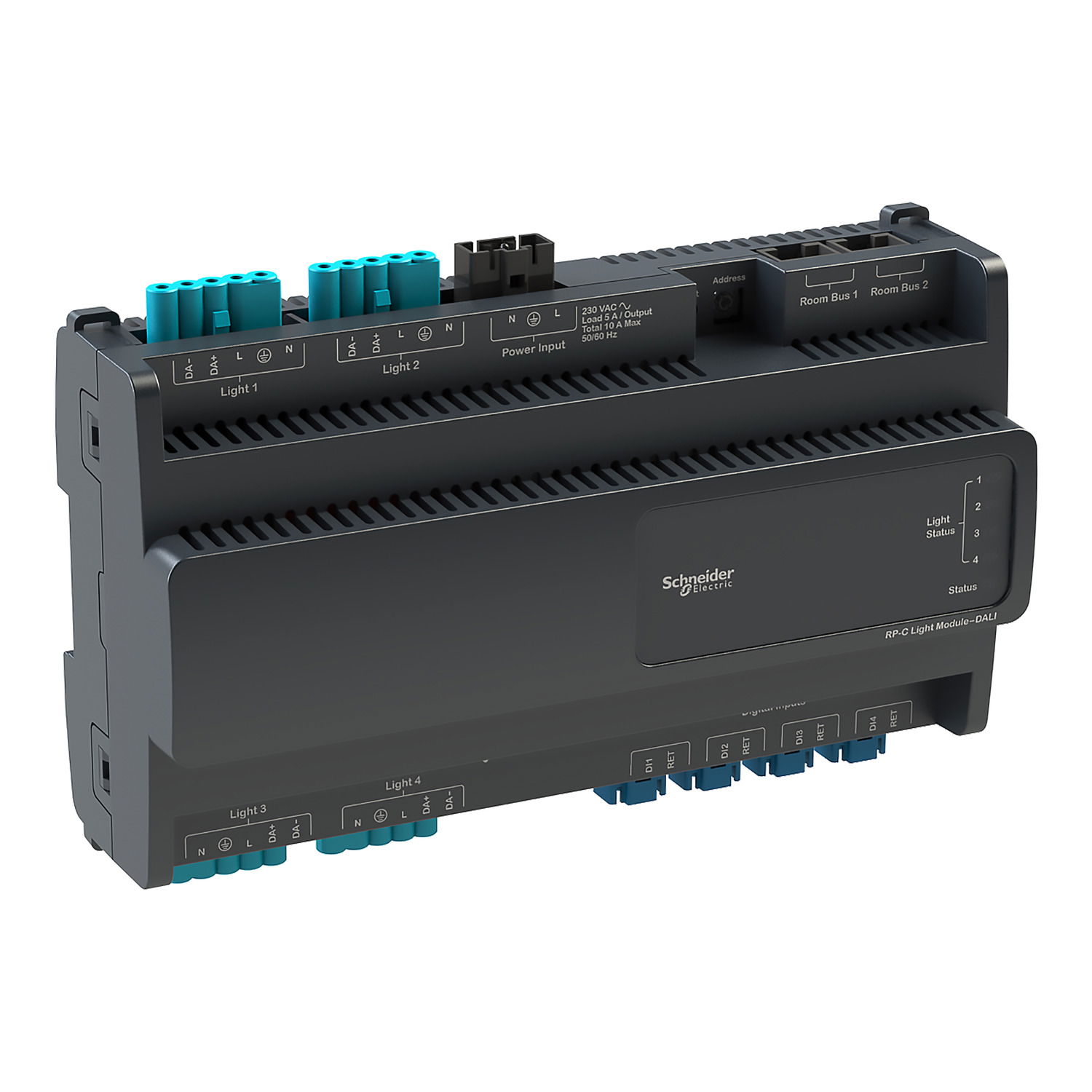

DALI multi-master expansion module with power distribution for use with RP-C Controller

Link copied
SKU
EAN
GTIN
MPN
SpaceLogic RP-C-EXT-DALI-M-PD module connects to the RP controller and provides I/O expansion and power supply for lighting control with DALI. The DALI light module enables power supply and control of lights equipped with DALI ballasts (DALI control gear). The DALI light module is a DALI-2 certified control device (application controller). Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. Plastic flame rating is UL94 V-0 and the ingress protection rating is IP20. This module is part of the RP Series expansion modules for connected room solution and can be combined with other modules from this product range.

Voltimum+ Loyalty Programme Loyalty points: 80

Price: £ 477.00 Excl. VAT

Specifications

Depth 64 mm
Width 198 mm
Height 110 mm
Contact type -
Smart control yes
Output voltage 10 V
Supply voltage 230 V
Max. contact load -
Reception frequency -
Suitable for cooling no
Max. power per channel -
Number of channels/zone -
Connection for external antenna no
Networkable via radiografic (standard) no

Documents

Declaration of Conformity (Sustainability)

SXWREDAMPD10001 REACh Regulation

Open

Instruction sheet

SpaceLogic™ RP-C-EXT-DALI-M-PD and RP-C-EXT-DALI Installation Sheet

Open

Product data sheet

Open

Declaration of Conformity (Sustainability)

SXWREDAMPD10001 EU RoHS Directive

Open

Declaration of conformity

CE-DOC-000071-01 SpaceLogic RP-C-EXT DALI M PD Declaration of conformity

Open

Environmental Disclosure

PEP SpaceLogic RP-C-EXT-DALI-M-PD module

Open

Circularity Profile

EoLI SpaceLogic RP-C-EXT-DALI-M-PD module

Open

CAD

SpaceLogic RP-C-EXT-DALI-M-PD CAD file

Open
