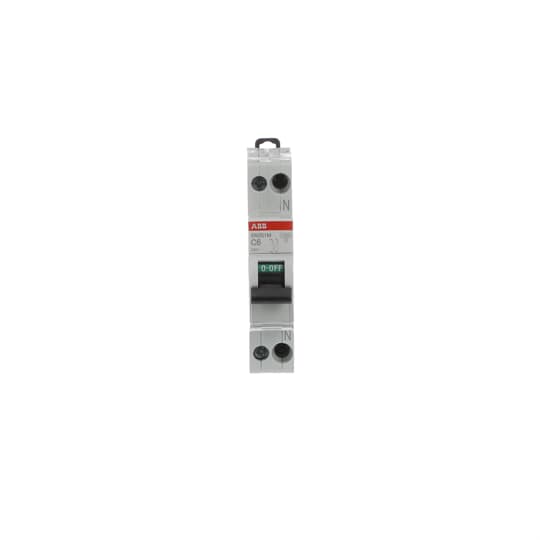

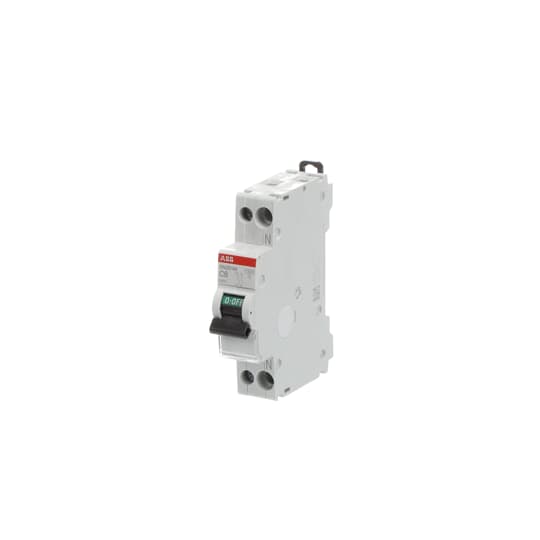

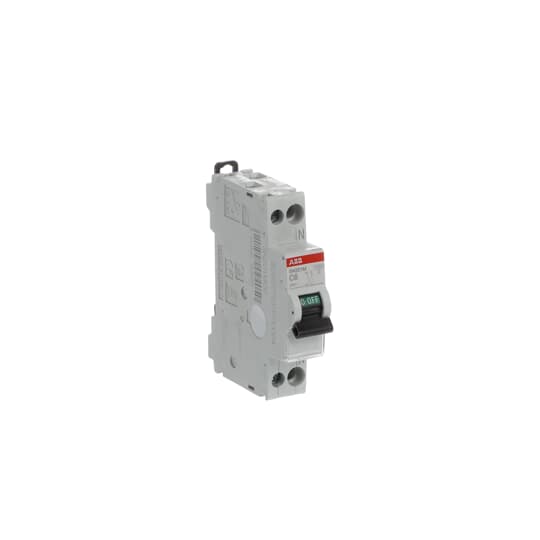

Miniature circuit breaker - SN201M - 1P+N - 6 A - C - (230 V) 10 kA
ABB

Miniature circuit breaker - SN201M - 1P+N - 6 A - C - (230 V) 10 kA

The SN201 series miniature circuit breaker is a 1P+N device in 1 module for the protection of circuits against overload and short circuit. Neutral is on the right

Product identifiers

SKU: 2CSS275101R0064
EAN: 8012542094050
GTIN: 8012542094050
MPN: SN201 M-C6

V+ Loyalty points:

19

Price: £ 44.00 Excl. VAT

Categories

Switchgear & Circuit Protection Circuit Breakers MCBs

Specifications

Frequency
Power loss 2.3
Voltage type AC
Rated current 6
Rated voltage
Built-in depth 69
Explosion-proof no
Pollution degree 2
Current limiting class 3
Number of poles (total) 2
Number of protected poles 1
Rated insulation voltage Ui 500
Width in number of modular spacings 1
Rated impulse withstand voltage Uimp 4
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V -
