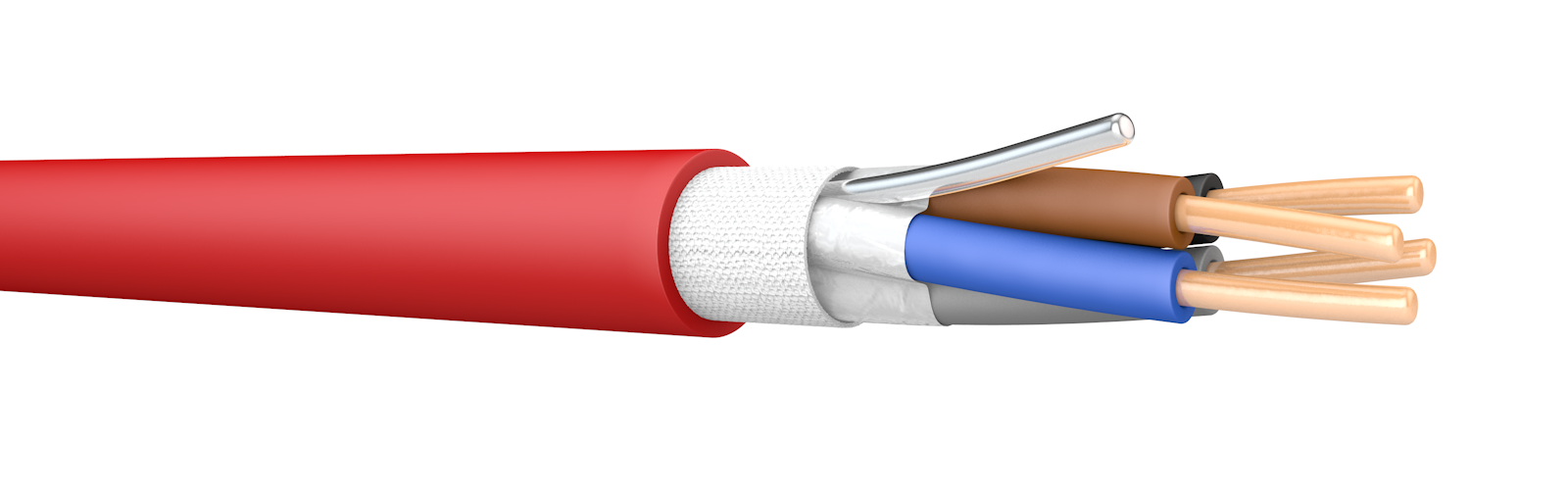

FPPLUS 4x1.5 100m Reel Red Fire Resistant Cable. BS 7629-1. 300/500 V

Name: FPPLUS 4x1.5 100m Reel Red Fire Resistant Cable. BS 7629-1. 300/500 V
Brand: Prysmian
SKU: 20146490
Availability: InStock

FPPLUS 4x1.5 100m Reel Red Fire Resistant Cable. BS 7629-1. 300/500 V by Prysmian is listed by 1 electrical wholesaler on Voltimum UK, including City Electrical Factors, and currently in stock. Trade price £5.14 excl. VAT.

Prysmian FP PLUS is the 'Enhanced' , hard skin, dressable fire resistant cable most commonly needed for fire alarm and emergency lighting circuits

Product identifiers

SKU: 20146490

EAN: 5019325296666

GTIN: 5019325296666

Price: £ 5.14 Excl. VAT

Specifications

Screen	yes
Weight	210
Drain wire	yes
Core colour	Several
Lead sheath	no
Cable geometry	Round
Number of cores	4
Conductor surface	Bare
Nominal voltage U	500
Conductor category	Class 1 = solid
Conductor material	Copper
Nominal voltage U0	300
Protective barrier	None
Shape of conductor	Round
Colour outer sheath	Red
Core identification	Colour
Material outer sheath	Polyolefin
Outer diameter approx.	12.5
Material core insulation	Polyolefin
With protective conductor	yes
Max. conductor temperature	70
Specification core insulation	Other
Conductor resistance at 20 °C	12.1
Nominal cross section conductor	1.5
Certified as airport lighting cable	no
Certified for shipboard application	no
Specification material outer sheath	Other
Low smoke according to EN IEC 61034-2	yes
Suitable for underground installation	no
Core identification according to HD 308 S2	yes
Oil resistant according to EN IEC 60811-404	no
Low temperature resistant according to EN 60811-504+505+506	no
Permitted cable outer temperature during assembling/handling

Documents

Datasheet for FPPLUS

FPPLUS.pdf
