Schneider Electric

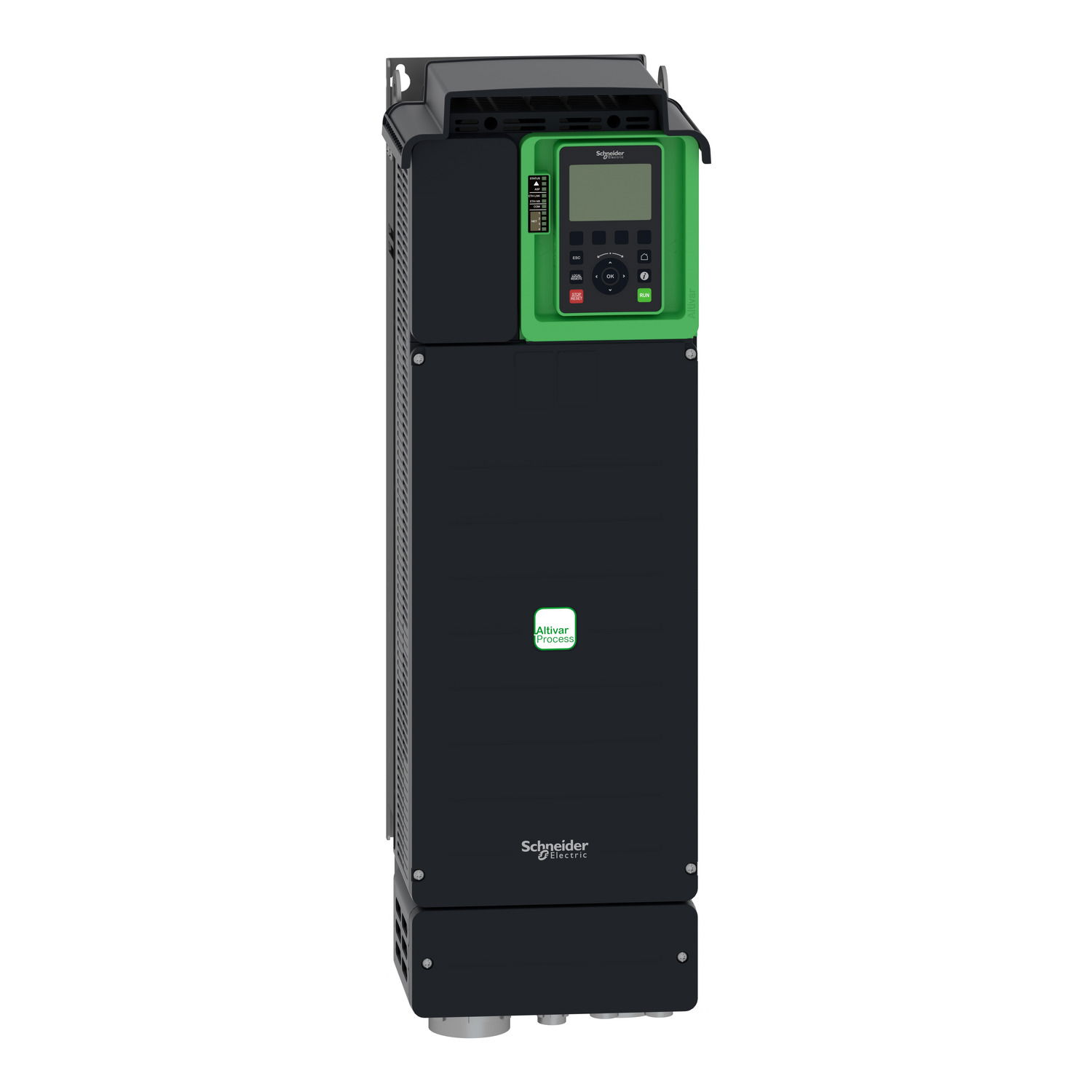

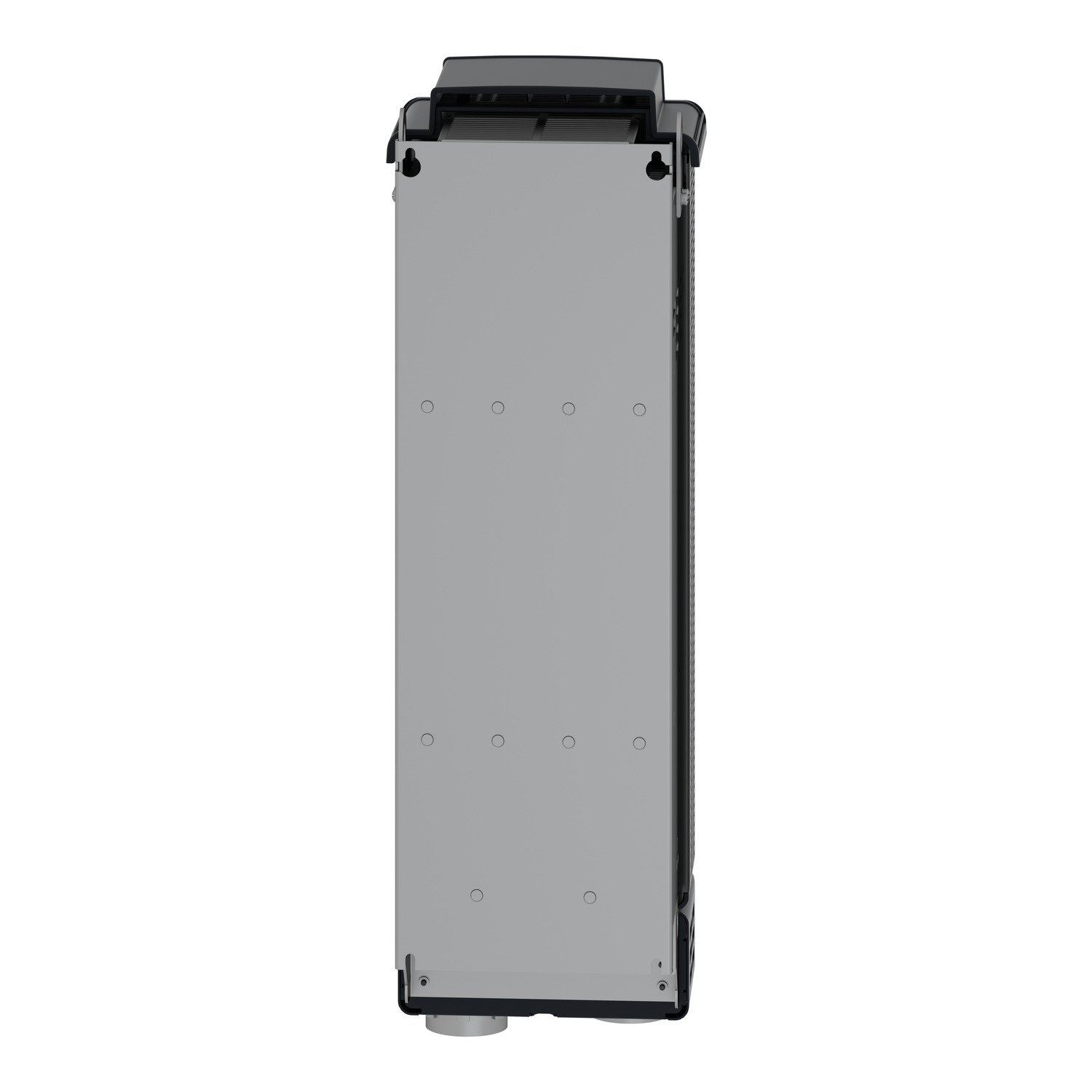

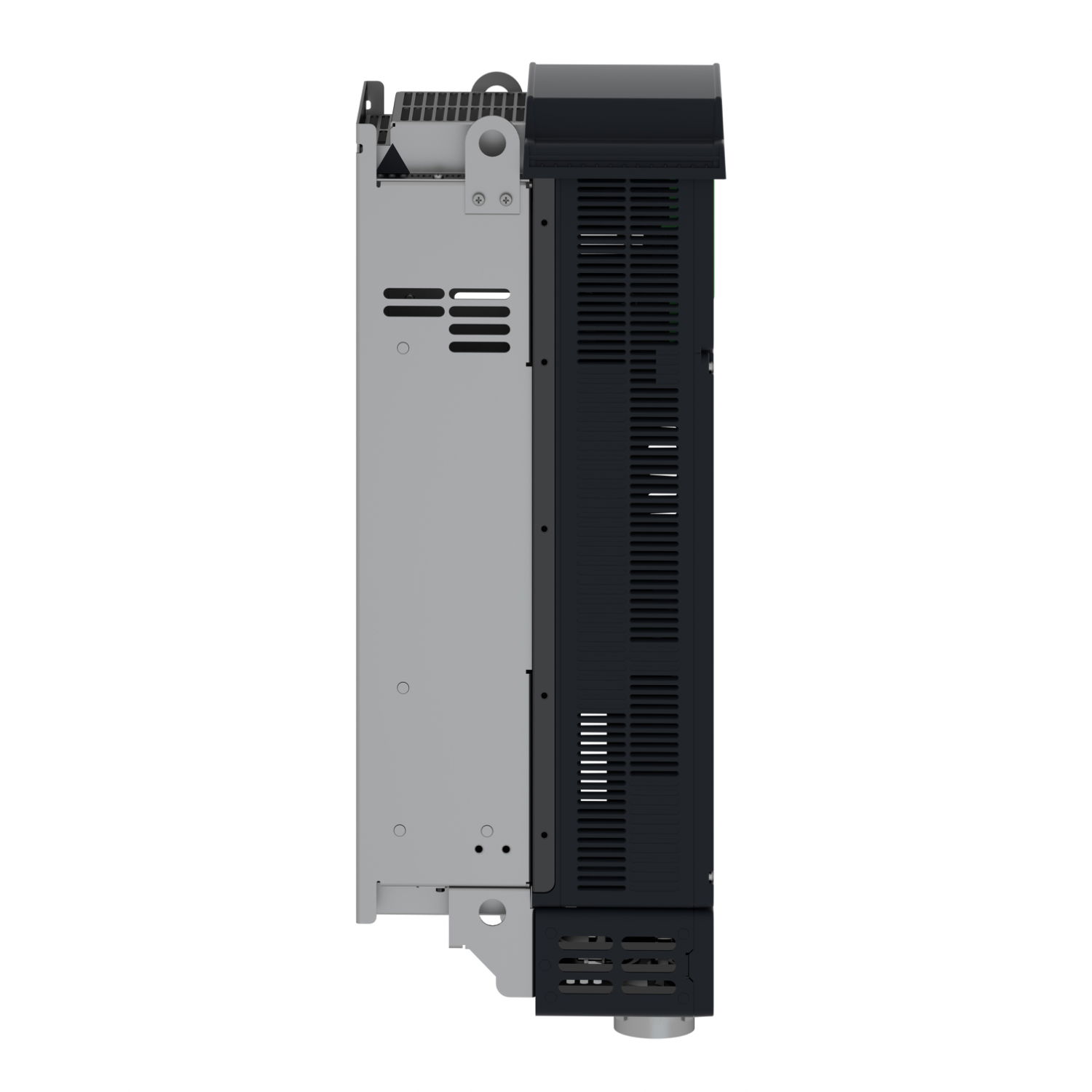

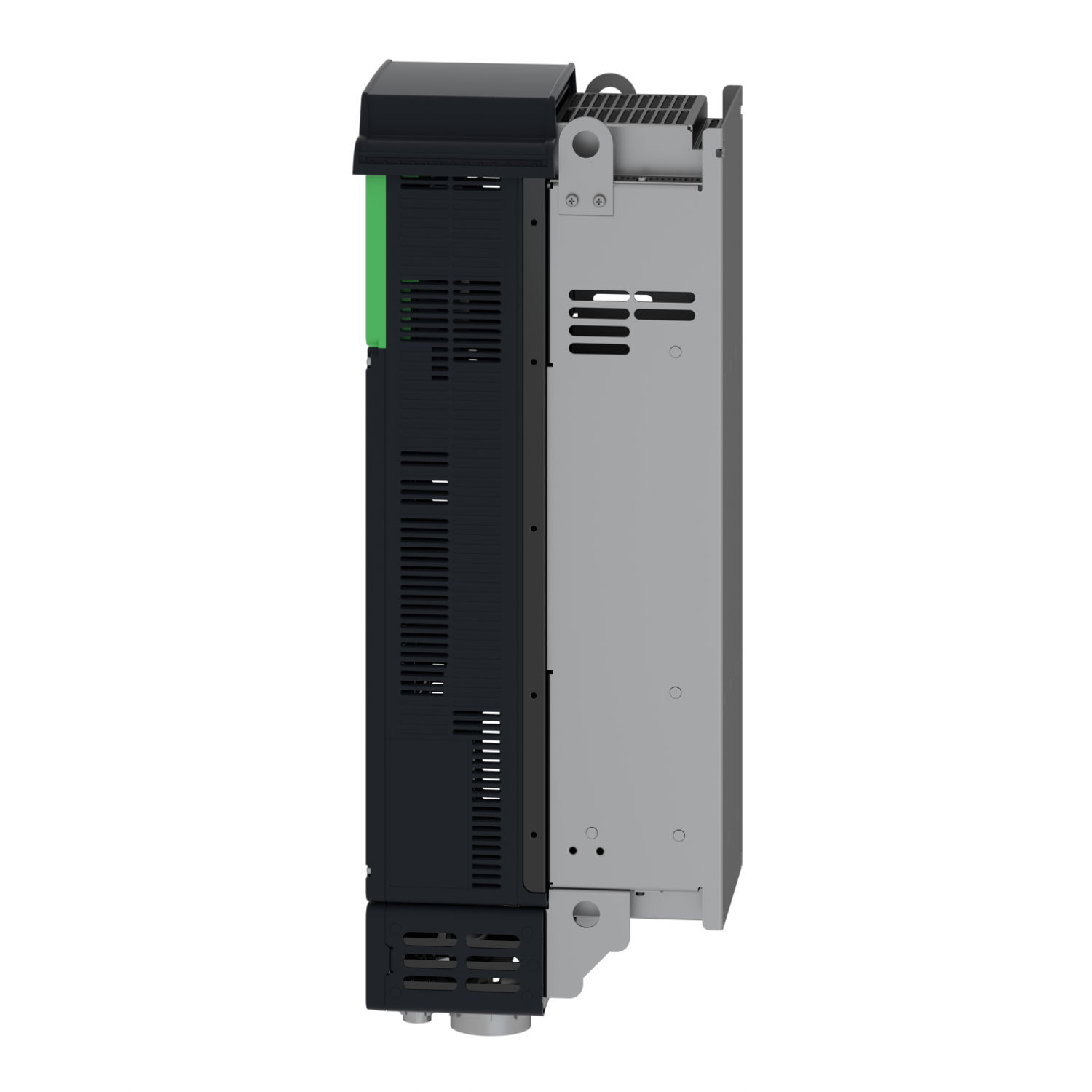

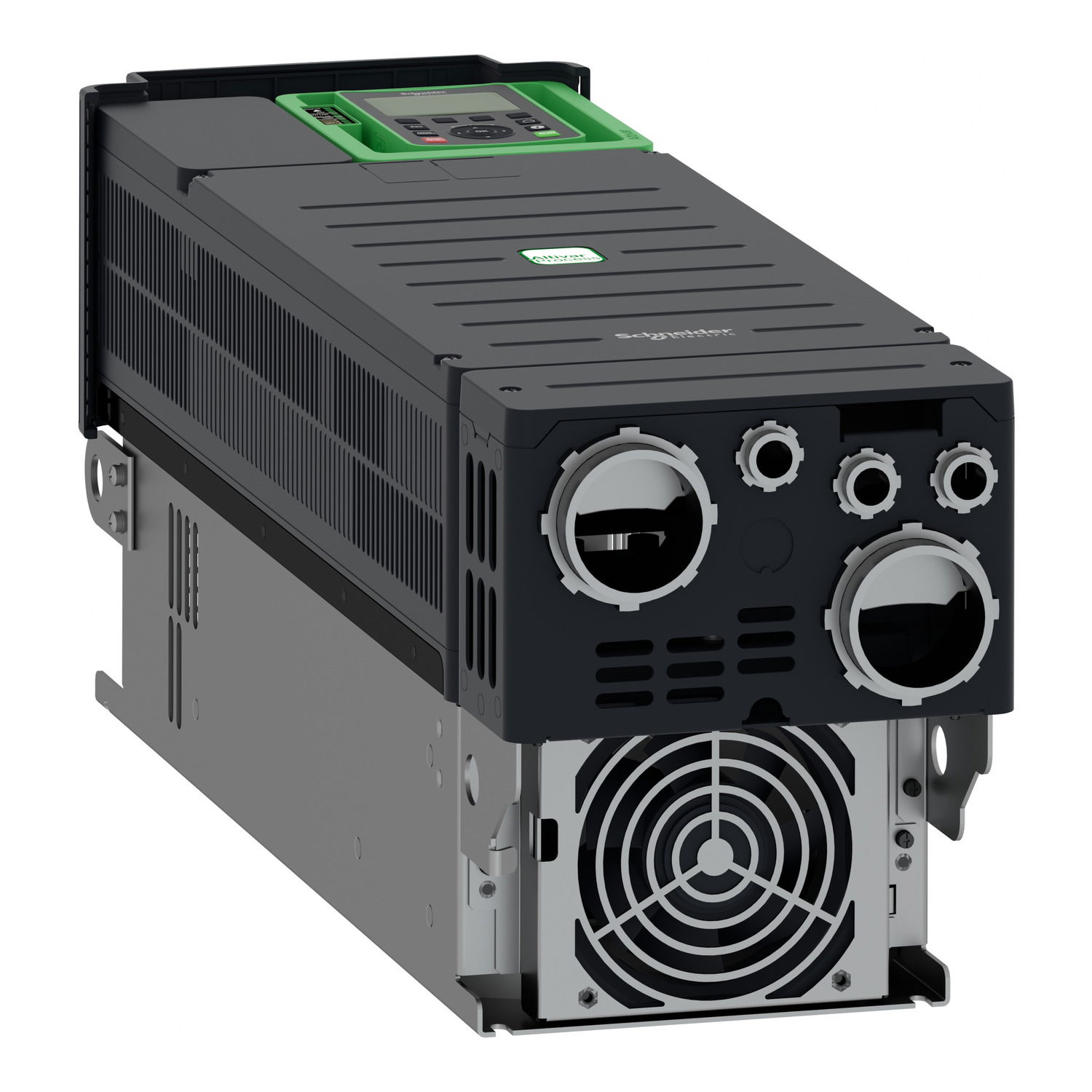

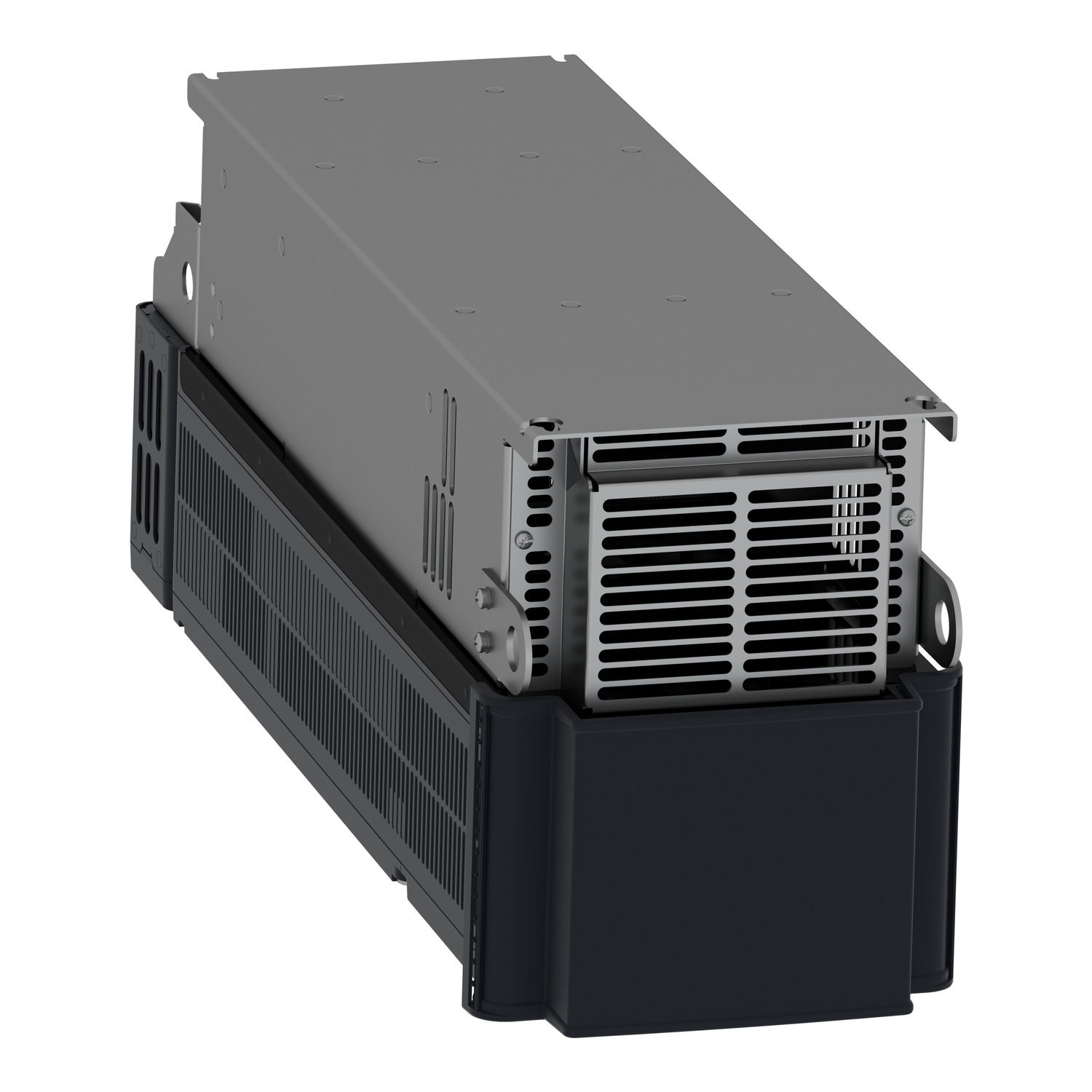

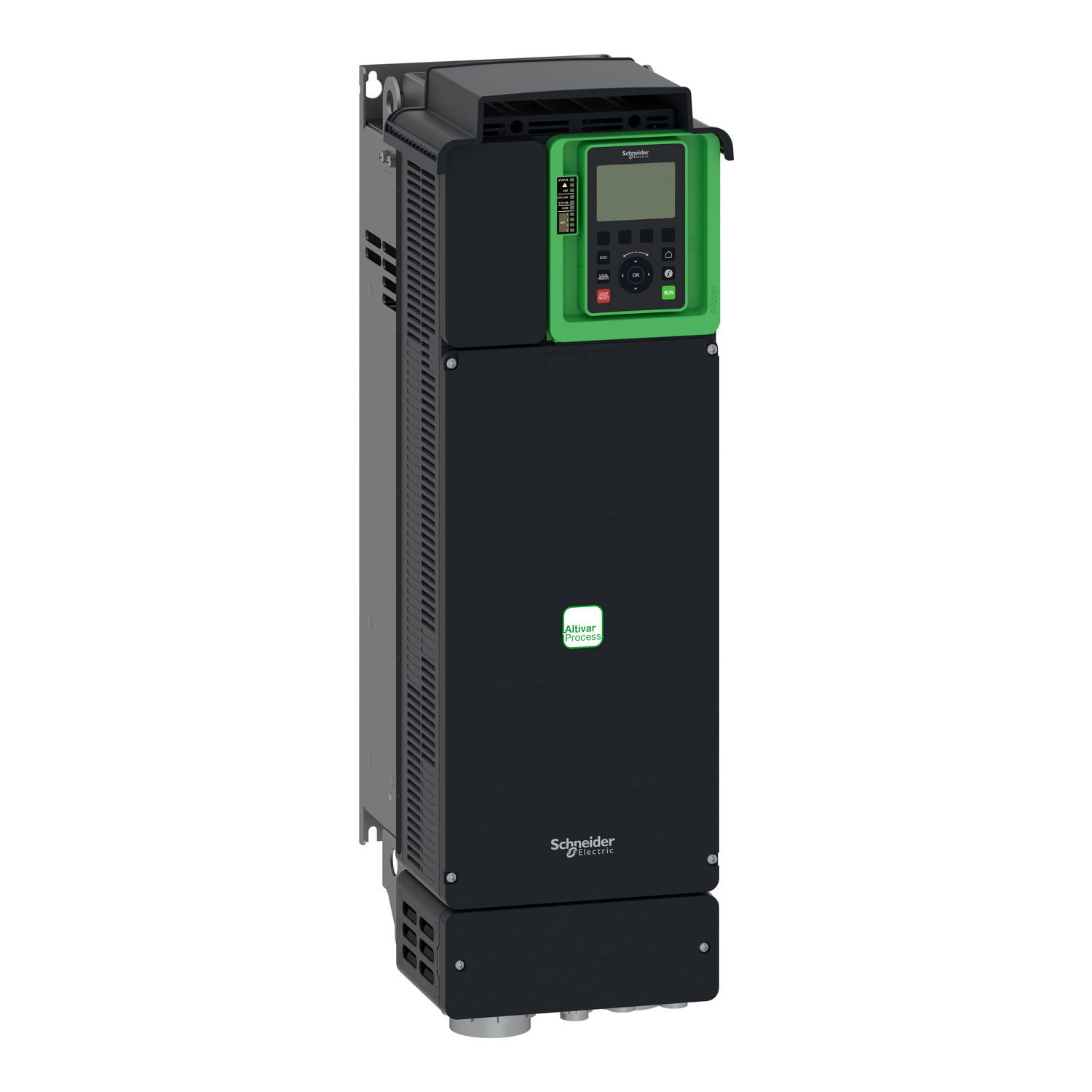

Variable speed drive ATV630 - 45kW/60HP - 380...480V - IP21/UL type 1

Link copied
SKU
EAN
GTIN
MPN

Variable speed drive ATV630 - 45kW/60HP - 380...480V - IP21/UL type 1 by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell, Rexel Group and 1 more. It is currently in stock at 3 of them. Trade prices range from £3,965.70 to £5,301.00 excl. VAT. Voltimum+ members earn 699 points per unit.

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 45kW / 60hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 37kW / 50hp for applications requiring significant overload (up to 150%). It weighs 28.7kg and its dimensions are, 226mm wide, 673mm high, 271mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

Voltimum+ Loyalty Programme Loyalty points: 699

Price range: £ 3,965.70 - £ 5,301.00 Excl. VAT

Categories

Switchgear & Circuit Protection Contactors & Motor Starters

ETIM group

Low-voltage industrial components

Specifications

Depth 271 mm
Width 226 mm
Height 673 mm
Mains voltage
Mains frequency 50/60 Hz
Power consumption -
Type of converter U converter
With PC connection no
With control element yes
Number of phases input 3
Number of phases output 3
Degree of protection (IP) IP21
Number of digital outputs 0
Number of analogue outputs 2
Number of HW-interfaces USB 0
Supporting protocol for CAN no
Supporting protocol for LON no
Number of HW-interfaces other 0
Integrated breaking resistance no
Number of HW-interfaces RS-422 0
Supporting protocol for BACnet no
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Supporting protocol for INTERBUS no
Supporting protocol for DeviceNet yes
Number of HW-interfaces serial TTY 0
Supporting protocol for PROFINET IO yes
Supporting protocol for Data-Highway no
Supporting protocol for INTERBUS-Safety no
Relative symmetric net voltage tolerance 10 %
Supporting protocol for other bus systems no
Number of HW-interfaces industrial Ethernet 1
Max. output at linear load at rated output voltage 45 kW
Max. output at quadratic load at rated output voltage 45 kW

Documents

Safety Data Sheet (SDS or MSDS)

Cylindral and coin type lithium batteries - Safety Data Sheet

Open

Declaration of Conformity (Sustainability)

ATV630D45N4 REACh Regulation

Open

User guide

ATV630-650 Installation manual

Open

Instruction sheet

1) Getting Started with ATV630/ATV650

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

ATV630D45N4 EU RoHS Directive

Open

Declaration of Conformity (Sustainability)

ATV630D45N4 China RoHS Regulation

Open
