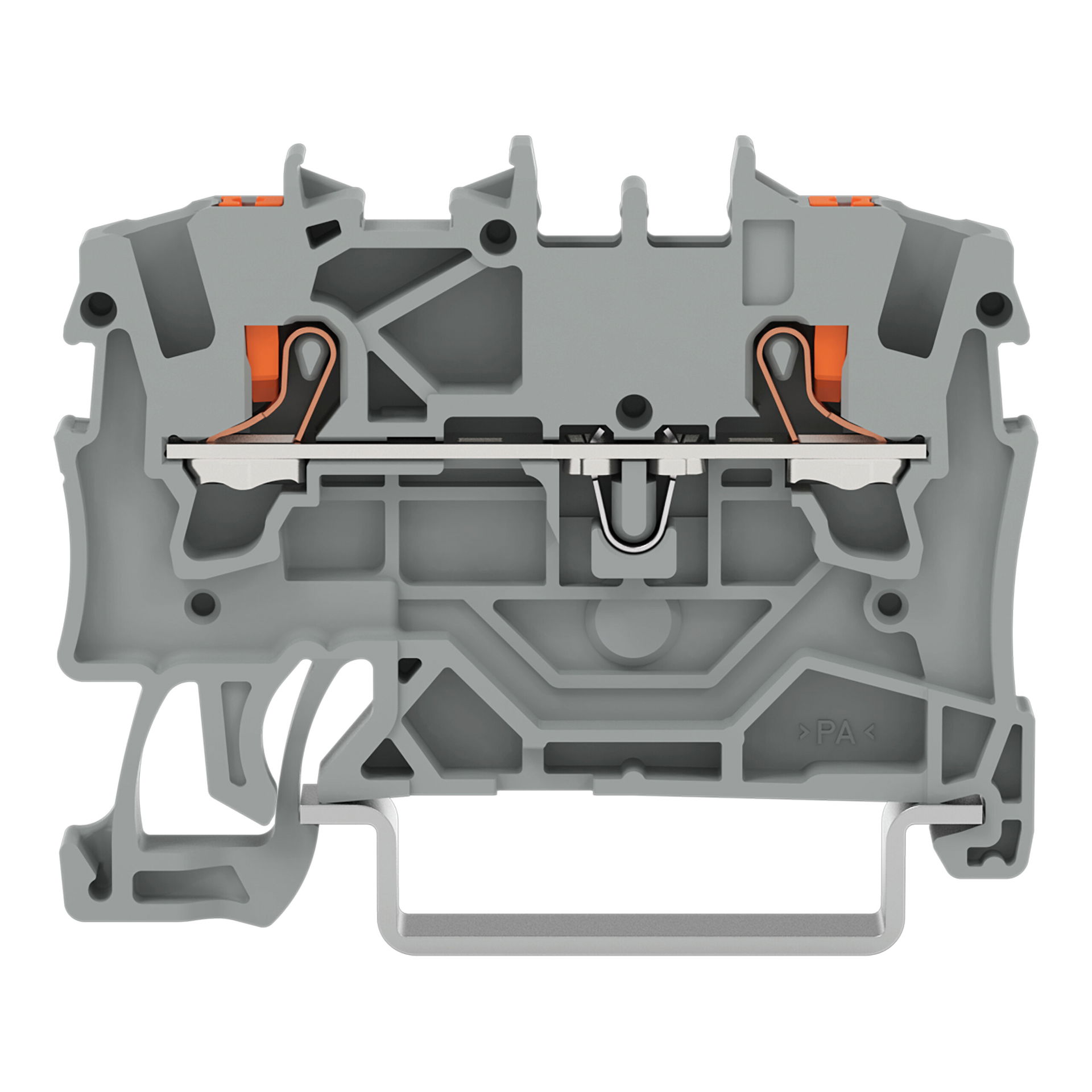

2-conductor through terminal block with push-button 1.5 mm² gray
Wago

2-conductor through terminal block with push-button 1.5 mm² gray

2-conductor through terminal block; with push-button; 1.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; gray

Product identifiers

SKU: 2201-1201
EAN: 4055143695152
GTIN: 4055143695152
MPN: 2201-1201

V+ Loyalty points:

1

Price: £ 0.67 Excl. VAT

Categories

Terminals, Connectors & Interconnects Terminal Blocks

Specifications

Depth 32.9
Width 4.2
Colour Grey
Height 48.5
EFNA0008 V0
Rated voltage 800
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 1
Operating temperature -60 - 105
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' yes
Type of electrical connection 1 Spring clamp connection
Number of clamp positions per level 2
Connectable conductor cross section multi-wired 0.25 - 1.5
Connectable conductor cross section fine-strand without cable end sleeve 0.25 - 2.5
