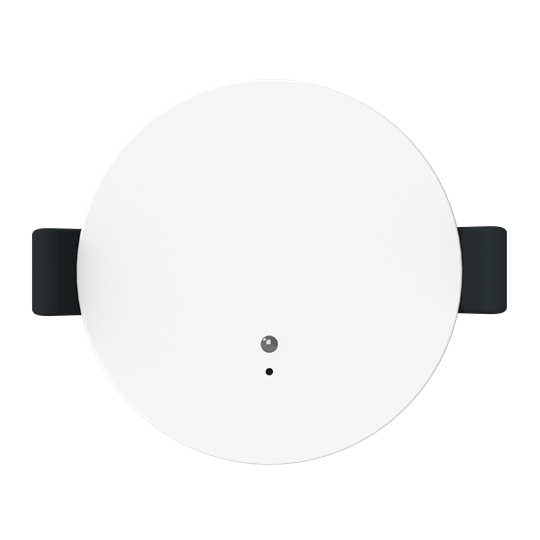

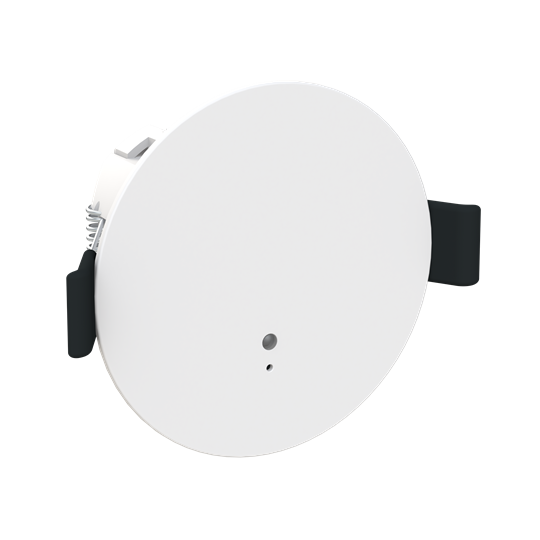

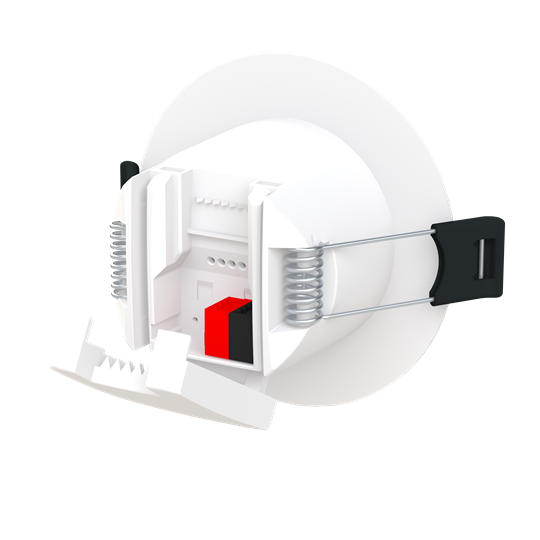

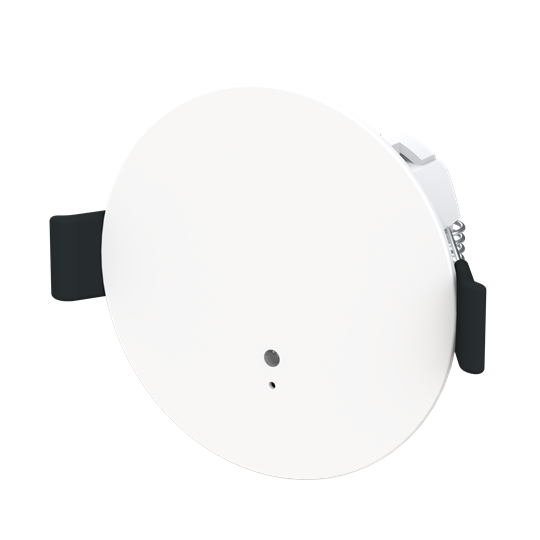

Busch-Watchdog HF KNX 360 ° Presence Detector KNX white matt

Movement Detector HF KNX, Basic, white, IP55 Detection Range (Circular): - Mounting height 2.5 m: Ø max. 10 m - Mounting height 3.0 m: Ø max. 12 m - Mounting height 4.0 m: Ø max. 10 m Technology: - 5.8 GHz HF (High Frequency) radar technology - Penetrates materials such as drywall, wood, and glass - 2 independent channels - Integrated KNX bus coupler Integrated Sensors: - Brightness sensor Functions: - Movement detector with 2 power-off stages - Integrated monitoring/surveillance function - Constant light switching with up to 2 independent channels - Brightness-dependent switching of two light circuits - KNX Data Secure Installation Options: - Recessed ceiling: Hole size Ø 68 mm - Surface mounting: With PMA/A1.xx-88x housing - British Standard box: PMA/K1.1-88x - VDE flush-mounted box: PMA/K2.xx-88x Please refer to the installation instructions for proper setup and optimal performance.
