TeSys SK control relay - 2 NO - <= 690 V - 48 V AC coil
TeSys SK control relay - 2 NO - <= 690 V - 48 V AC coil
TeSys SK control relay - 2 NO - <= 690 V - 48 V AC coil by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £42.31 to £42.73 excl. VAT. Voltimum+ members earn 5 points per unit.

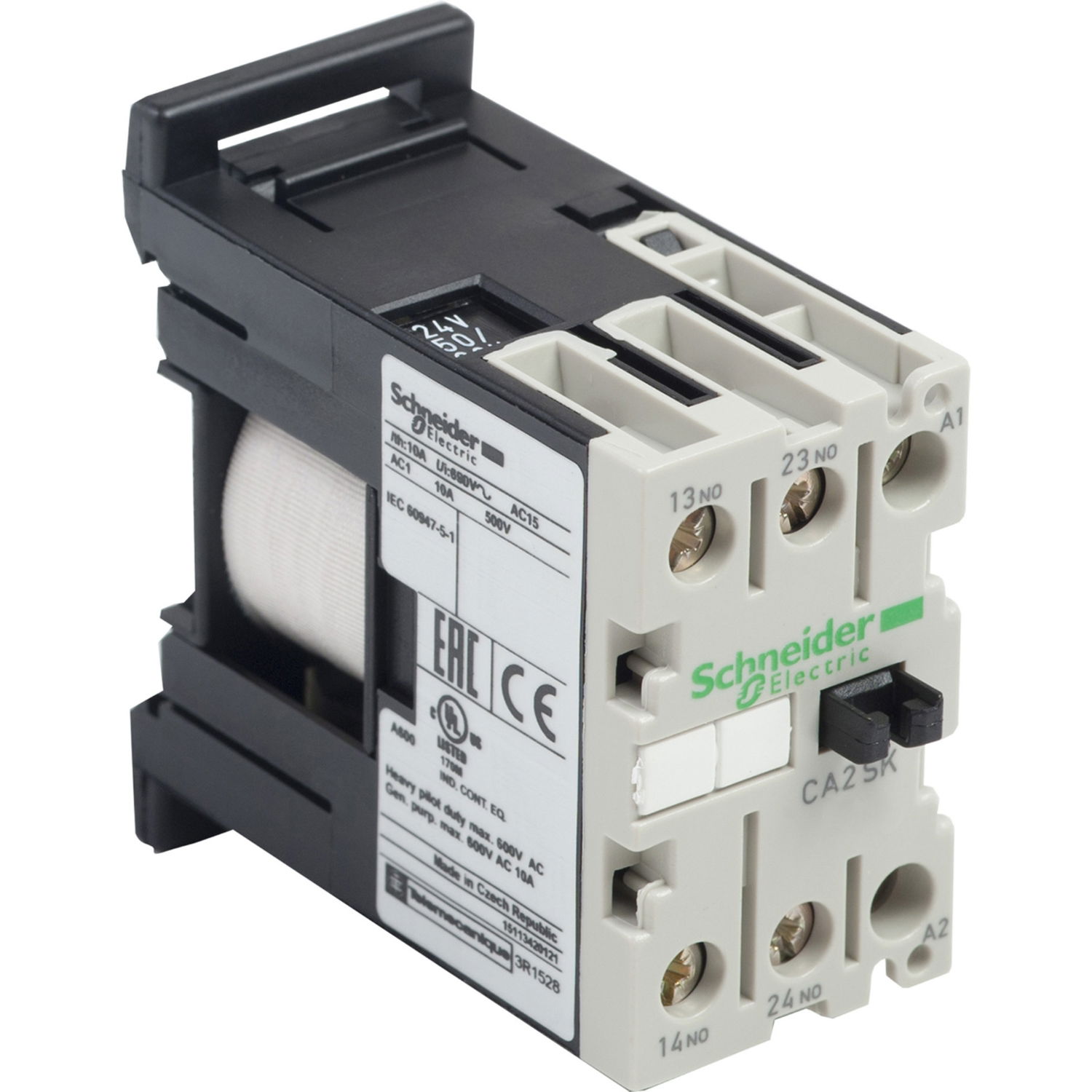

TeSys SK mini-control relay, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 48V 50/60Hz AC control circuit, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC), (RoHS/REACh).
Product identifiers
SKU: CA2SK20E7
EAN: 3389110564150
GTIN: 3389110564150
MPN: CA2SK20E7
Loyalty points:
5
Price range: £ 42.31 - £ 42.73 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 57 mm |
| Width | 45 mm |
| Height | 58 mm |
| Interface | no |
| Mounting method | DIN-rail/screw |
| With LED indication | no |
| Operating voltage DC | |
| Rated switch current | 0.005 A |
