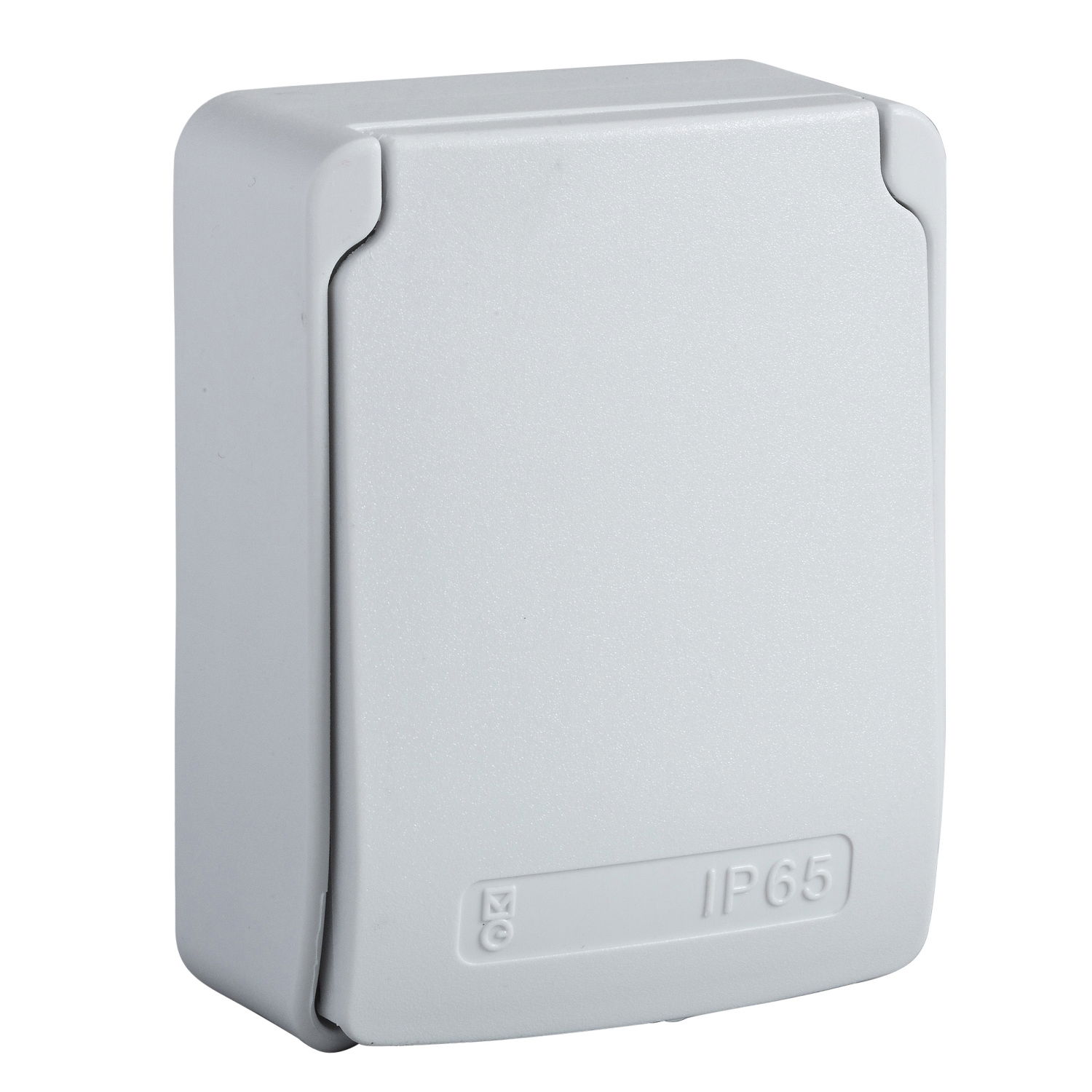

RJ 45 support 65 x 85 - with 2 adapters RJ45 Infra+ - IP65

Link copied
SKU
EAN
GTIN
MPN
Experience the Schneider Electric Mureva RJ45 support with a lid designed for 2 RJ45 adapters. It can be fitted directly on the Mureva enclosures or on wall-boxes. It has a degree of protection of IP65 and IK09, and is made of self-extinguished polymer with a fire resistance up to 850°C conforming to IEC 60895-2-11 standard. Its dimensions are (W) 65mm x (H) 85mm x (D) 45mm with a base dimension of 65x85mm. Its color is grey RAL 7035 and operates on a range of temperature betwwen -25°C to 40°C. Designed for an easy installation, the Mureva range offers a complete line of high performance industrial plugs and sockets for electrical distribution from 16A to 125A. It guarantees also a complete compatibility with Mureva enclosures providing a complete waterproof solution. The range is suitable for a wide range of environments, from business park to construction sites, building, agricultural sectors and beyond, being able to be used indoor as well as outdoor.

Voltimum+ Loyalty Programme Loyalty points: 11

Price: £ 66.00 Excl. VAT

Specifications

Colour Grey
Category -
RAL-number 7035
Device depth 45.2 mm
Device width 65 mm
Colour coding no
Device height 85 mm
Shielded buses no
With dust cover yes
Shielded housing no
With label space yes
Mechanical coding no
Type of fastening Screwing
With buses/couplings no
With terminal resistor no
Floor box/subfloor mounted no
Separate earthing connection no
Suitable for number of connectors 2
Mounting method shielding connection -
