Schneider Electric
Popularity Top 60% More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

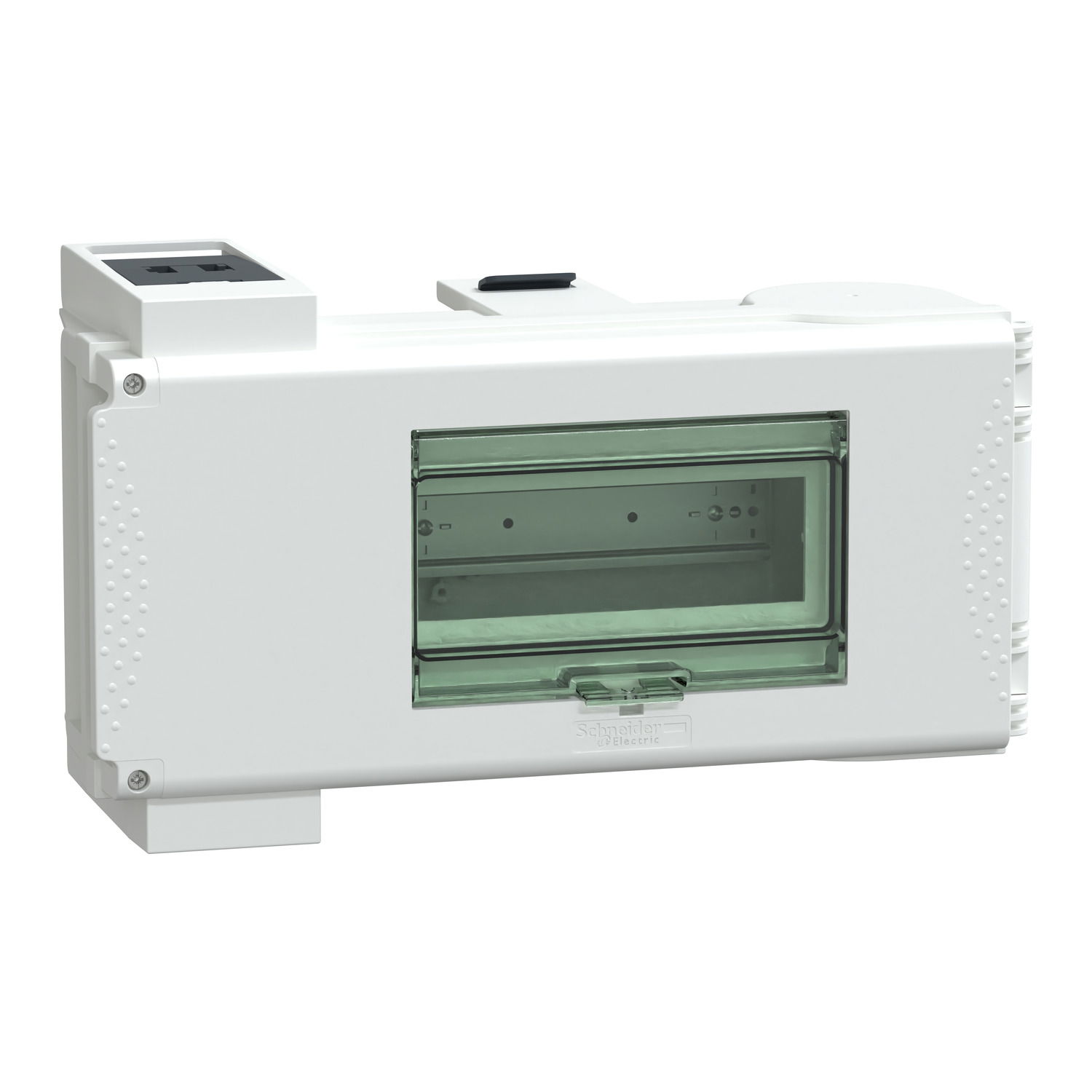

TAP OFF UNIT 63A 8 MODULES

Link copied
SKU
EAN
GTIN
MPN

TAP OFF UNIT 63A 8 MODULES by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including RS Components, RS Electrical Supplies and Rexel Group. It is currently in stock at 2 of them. Trade prices range from £83.68 to £248.99 excl. VAT. Voltimum+ members earn 29 points per unit.

Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TT, IT and TN-S earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 63A. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L+N+PE. It provided protection for miniature circuit breaker (MCB) (Circuit breaker to be ordered separately). It provided tap-off unit disconnection by right opening the door. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).

Voltimum+ Loyalty Programme Loyalty points: 29

Price range: £ 83.68 - £ 248.99 Excl. VAT

Specifications

Width 133 mm
Colour White
Height 220 mm
Length 444 mm
Protection None
RAL-number 9001
With locking no
Branch off type Pipe in-lead
Phase selection no
Rated voltage AC 50 Hz
Degree of protection (IP) IP55
Number of NEMA socket outlets 0
Number of conductors (without earthing) 4

Documents

Declaration of Conformity (Sustainability)

KSB63SM48 REACh Regulation

Open

Instruction sheet

KSB...SM... - TAP-OFF UNIT - Instruction Sheet

Open

Product data sheet

Open

Catalog

Canalis KSA 100 to 1000 A

Open

Declaration of Conformity (Sustainability)

KSB63SM48 EU RoHS Directive

Open

Declaration of conformity

Canalis KSB / UK Declaration of conformity / BS EN 61439-6

Open

Environmental Disclosure

Canalis KSA 250A

Open

CAD

Open
