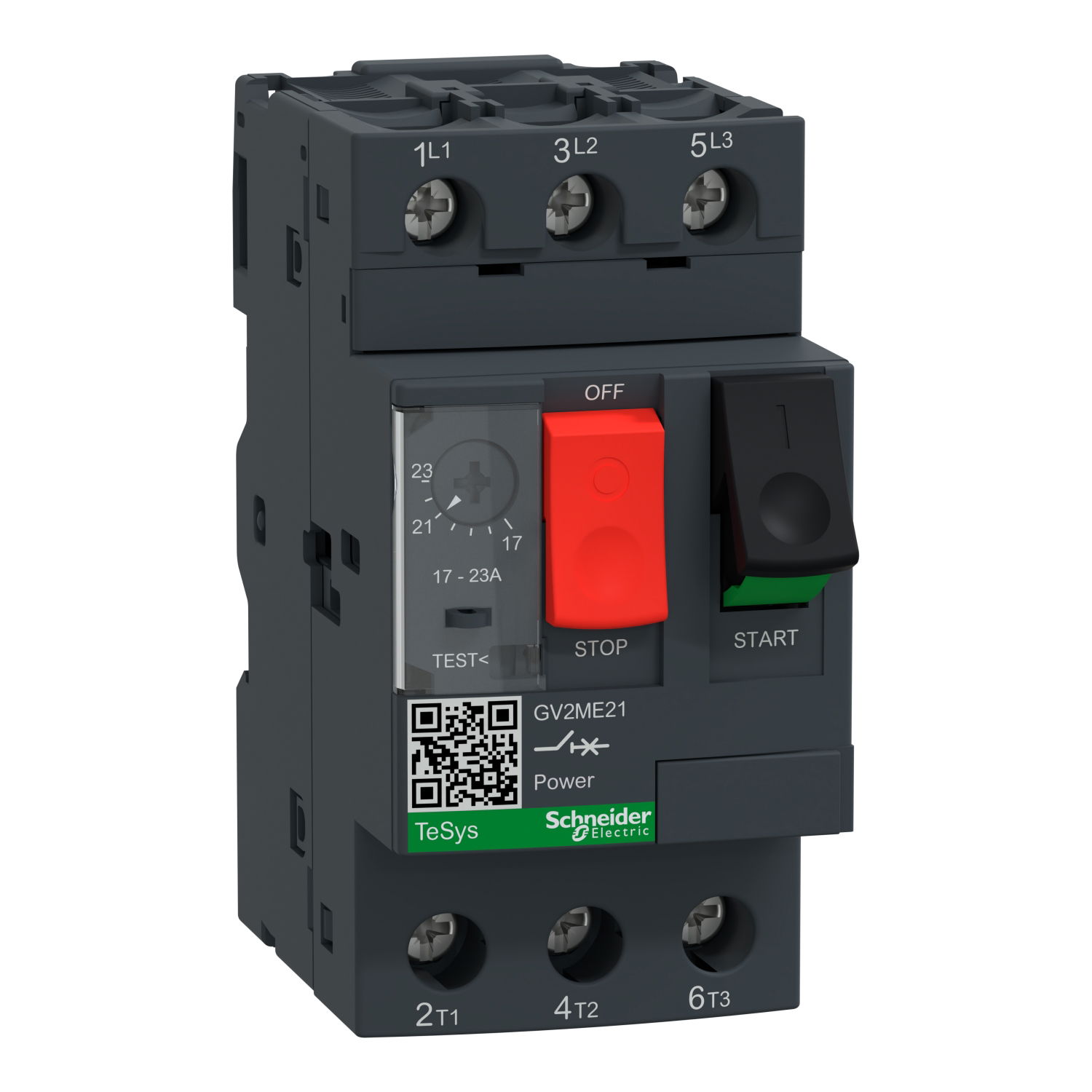

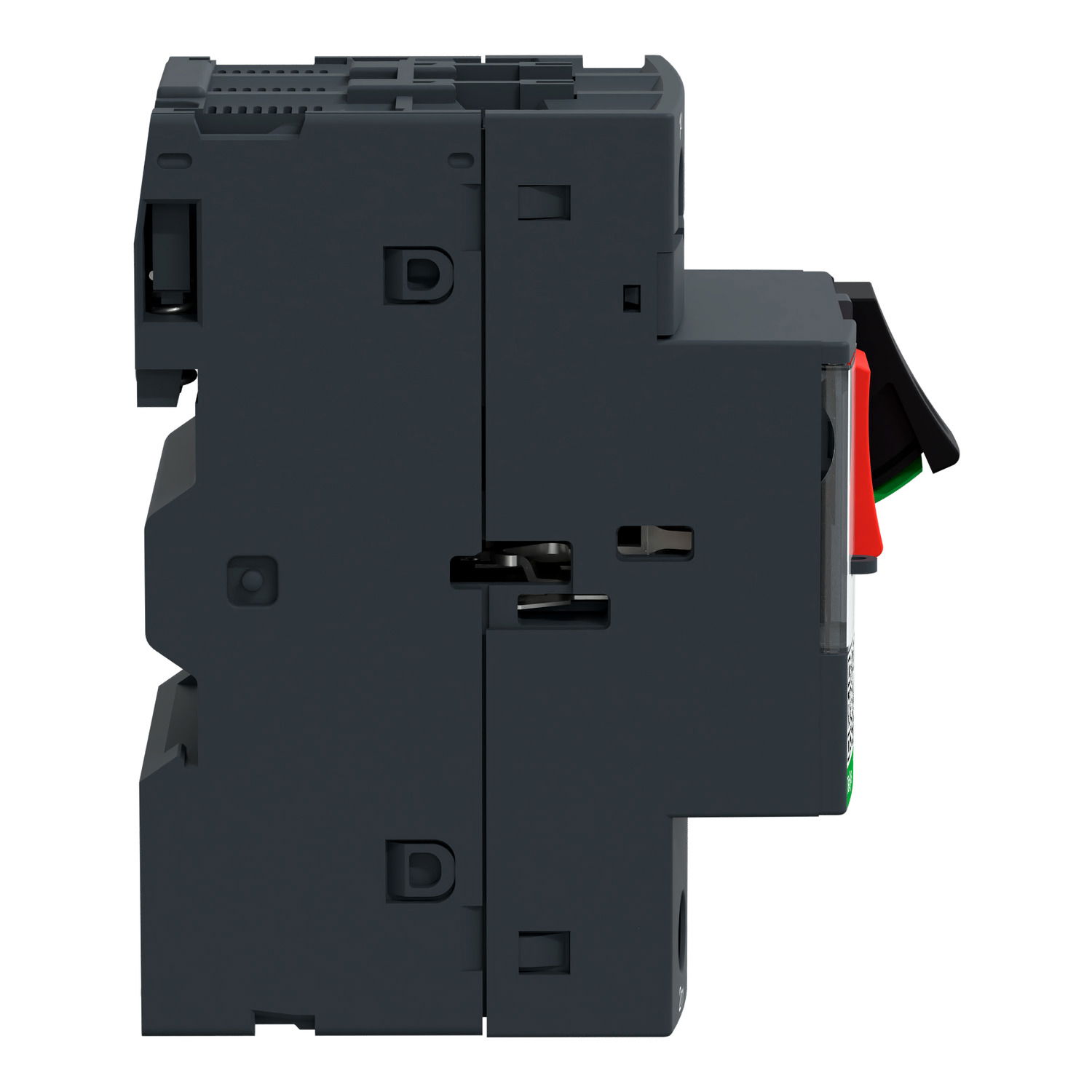

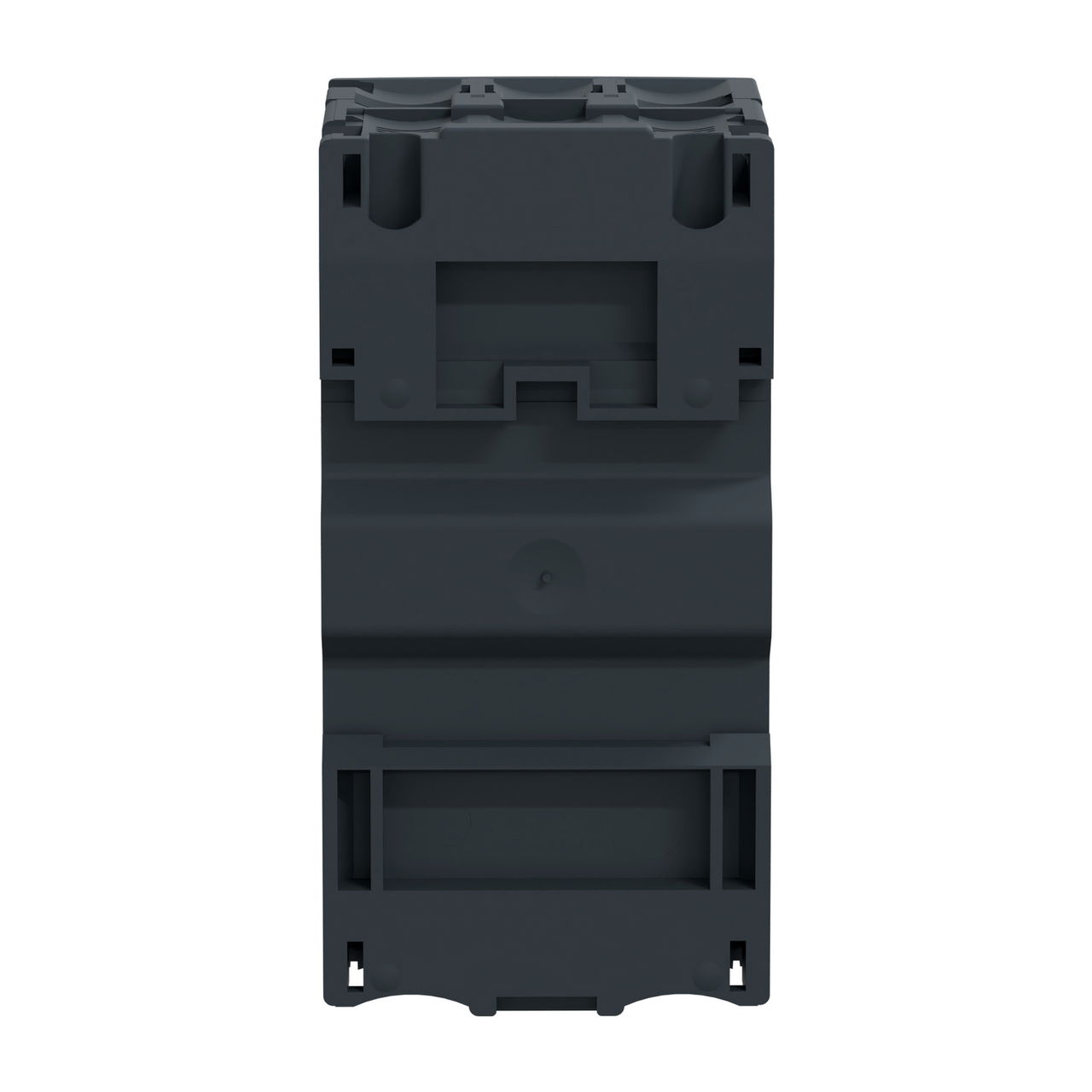

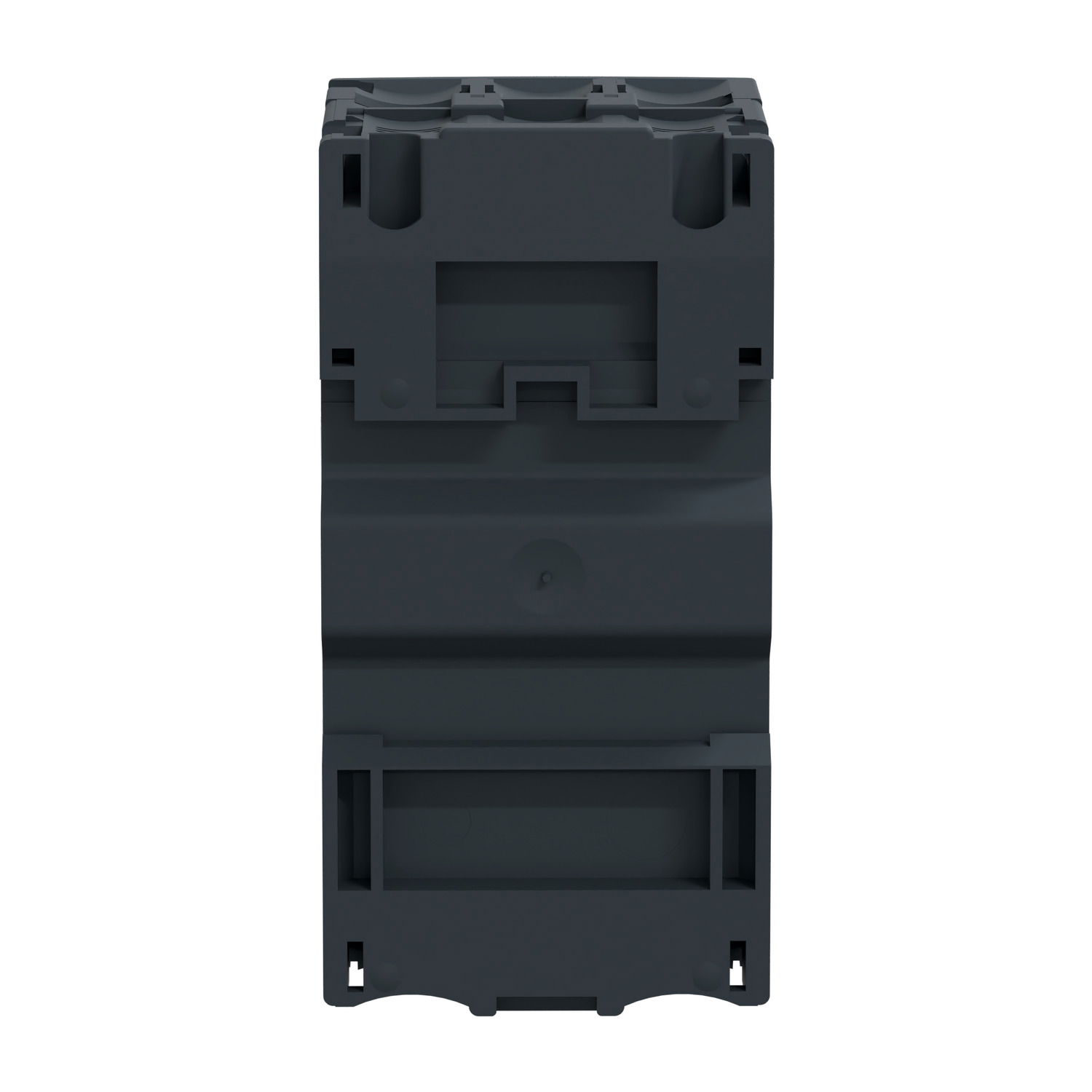

Motor circuit breaker, TeSys GV2, 3P, 17-23 A, thermal magnetic, screw clamp terminals

Link copied
SKU
EAN
GTIN
MPN

Motor circuit breaker, TeSys GV2, 3P, 17-23 A, thermal magnetic, screw clamp terminals by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at all of them. Trade prices range from £60.67 to £98.82 excl. VAT. Voltimum+ members earn 12 points per unit.

TeSys GV motor circuit breaker, 3 poles (3P), 23A/690V, for 3-phase motor applications 9kW@400V. It provides a thermal-magnetic protection with a thermal setting range 17-23A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX),

Voltimum+ Loyalty Programme Loyalty points: 12

Price range: £ 60.67 - £ 98.82 Excl. VAT

Specifications

Depth 78.2 mm
Width 45 mm
Height 89 mm
Power loss 2.5 W
Number of poles 3
Device construction Complete device in housing
Switch off technique Thermomagnetic
Phase failure sensitive yes
Type of control element Push button
Rated permanent current Iu 23 A
With integrated auxiliary switch no
Rated operation power at AC-3, 230 V 5.5 kW
With integrated under voltage release no
Adjustment range undelayed short-circuit release

Documents

Declaration of Conformity (Sustainability)

GV2ME21 REACh Regulation

Open

User guide

TeSys Power - Deca Motor Circuit Breakers Frame 2 - Use in Explosive Atmospheres

Open

Instruction sheet

GV2 ME.. Motor circuit-breakers - IS on the box - Instruction Sheet

Open

Product data sheet

Open

Technical illustration

Illustration: Wiring Diagram for GV2ME--

Open

Technical illustration

Illustration: Wiring Diagram for GV2ME--

Open

Technical illustration

Illustration: Wiring Diagram for GV2ME--

Open

Technical illustration

Illustration: Wiring Diagram for GV2ME--

Open
