STRAIGHT LENGTH 63 A

Link copied
SKU
EAN
GTIN
MPN

STRAIGHT LENGTH 63 A by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £330.48 excl. VAT. Voltimum+ members earn 38 points per unit.

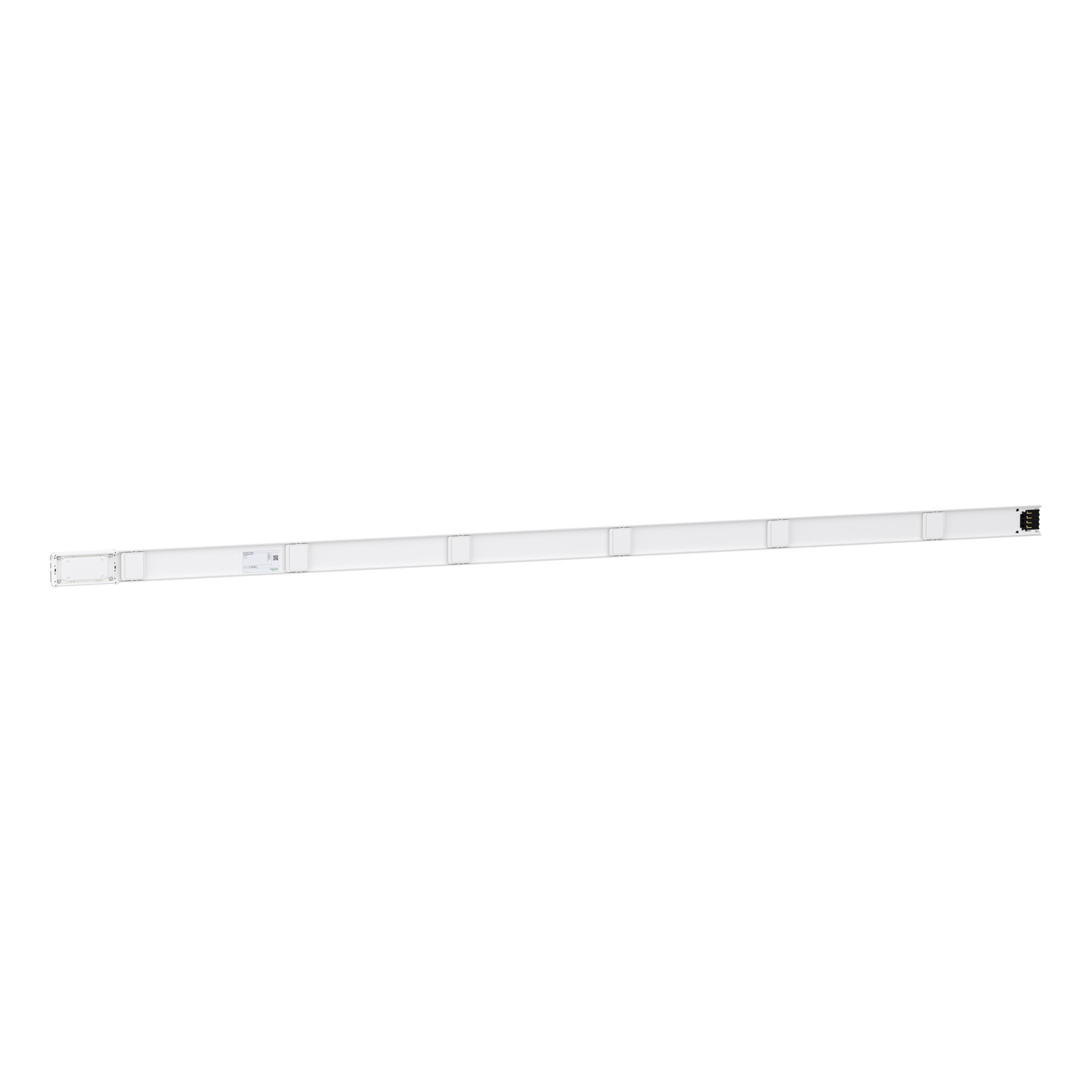

This product is a standard straight distribution length for Canalis KN offer. It consists of a 3m 63A Distribution element equipped with 6 outlets. The rated operational current is 63A at 35 ℃. The operational voltage is from 230VAC to 500VAC 50/60Hz. The busbar trunking polarity is 3L+N+PE or 3L+PEN. The length is 3m. It is designed for receiving 6 outlets. The colour is white RAL 9001. All run components are delivered with a jointing unit. It provides IP55 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with EN/IEC 61439-6 standard. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).

Voltimum+ Loyalty Programme Loyalty points: 38

Price: £ 330.48 Excl. VAT

Specifications

Model Single
Width 27.5 mm
Colour White
Height 92 mm
Length 3000 mm
Flexible no
RAL-number 9001
Number of poles 4
Rated voltage AC 50 Hz
Degree of protection (IP) IP55
Number of conductors (without earthing) 4

Documents

Declaration of Conformity (Sustainability)

KNA63ED4306 REACh Regulation

Open

Instruction sheet

KNA...ED. - STRAIGHT LENGTH - Instruction Sheet

Open

Product data sheet

Open

Catalog

Canalis KN 40 to 160A

Open

Catalog

Canalis KN 40 to 160A

Open

Declaration of Conformity (Sustainability)

KNA63ED4306 EU RoHS Directive

Open

Declaration of conformity

Canalis KN / UK Declaration of conformity / BS EN 61439-6

Open

Environmental Disclosure

PEP - Canalis KNA 40A to 160A

Open
