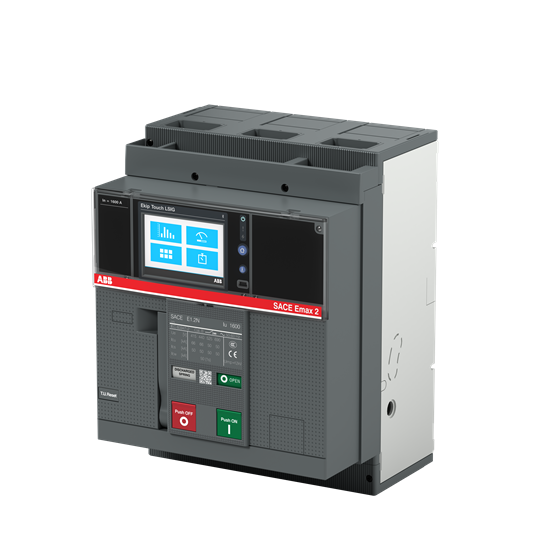

E1.2B 1250 Ekip Touch LSIG 3p F F

Name: E1.2B 1250 Ekip Touch LSIG 3p F F
Brand: ABB
SKU: 1SDA070826R1
Availability: InStock

E1.2B 1250 Ekip Touch LSIG 3p F F by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £6,139.25 excl. VAT. Voltimum+ members earn 2683 points per unit.

C.BREAKER SACE EMAX2 E1.2B 1250 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 1250 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED

Product identifiers

SKU: 1SDA070826R1

EAN: 8015644746766

GTIN: 8015644746766

MPN: E1.2B 1250 Ekip Touch LSIG 3p F F

Loyalty points: 2683

Price: £ 6,139.25 Excl. VAT

Specifications

Power loss	122
Rated voltage
Number of poles	3
Device construction	Built-in device fixed built-in technique
Motor drive optional	yes
Motor drive integrated	no
Type of control element	Push button
Degree of protection (IP)	IP30
Rated permanent current Iu	1250
With switched-off indicator	yes
Overload release current setting
Integrated earth fault protection	yes
Complete device with protection unit	yes
With integrated under voltage release	no
DIN rail (top hat rail) mounting optional	no
Suitable for DIN rail (top hat rail) mounting	no
Type of electrical connection of main circuit	Bolt connection
Position of connection for main current circuit	Back side
Adjustment range undelayed short-circuit release
Number of auxiliary contacts as change-over contact	4
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Adjustment range short-term delayed short-circuit release
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz	42
