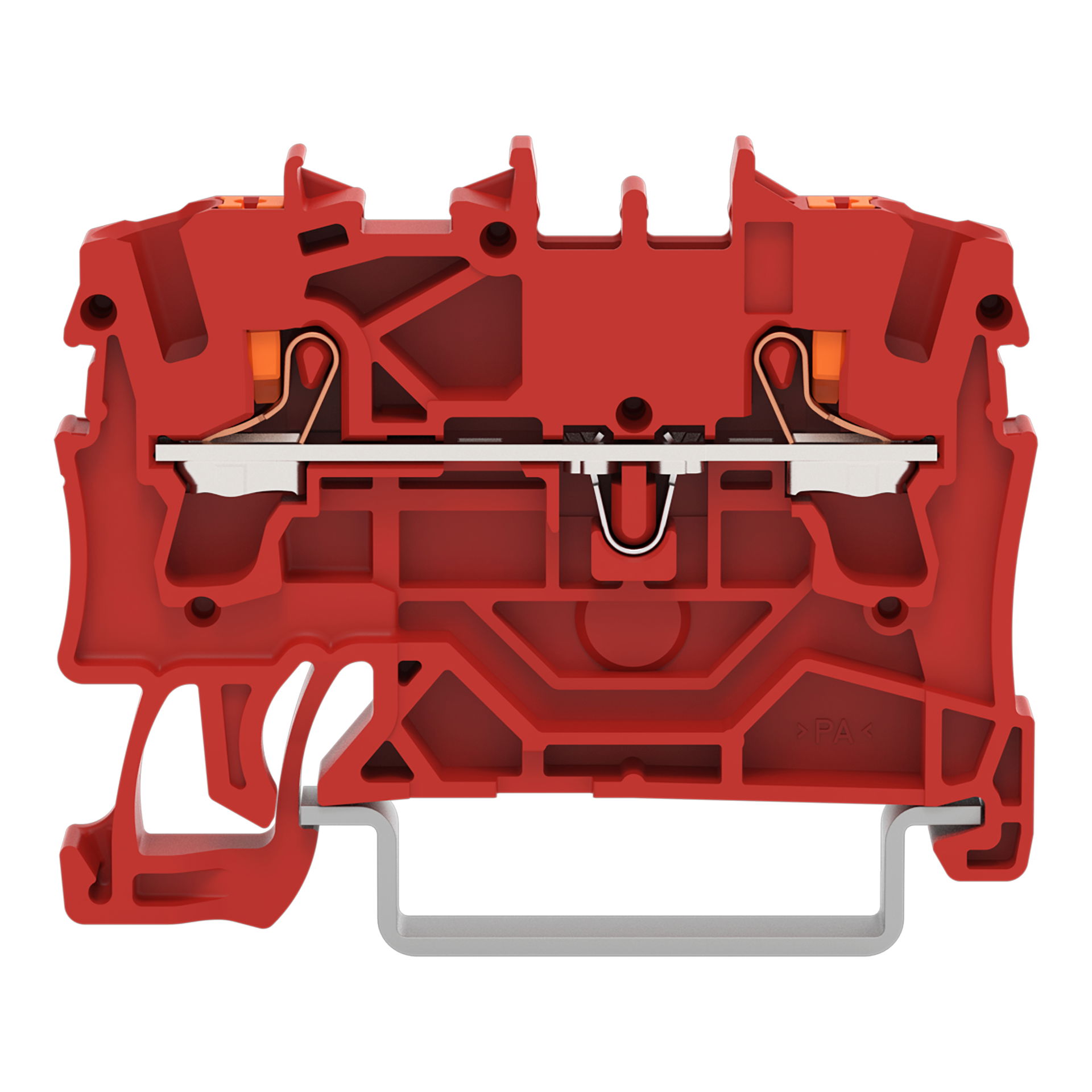

2-conductor through terminal block with push-button 2.5 mm² red
Wago

2-conductor through terminal block with push-button 2.5 mm² red

2-conductor through terminal block; with push-button; 2.5 mm²; with test port; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; red

Product identifiers

SKU: 2202-1203
EAN: 4055143848657
GTIN: 4055143848657
MPN: 2202-1203

V+ Loyalty points:

1

Price range: £ 0.80 - £ 0.82 Excl. VAT

Categories

Terminals, Connectors & Interconnects Terminal Blocks

Specifications

Depth 32.9
Width 5.2
Colour Red
Height 48.5
EFNA0008 V0
Rated voltage 800
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 1
Operating temperature 105 - 105
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' yes
Type of electrical connection 1 Spring clamp connection
Number of clamp positions per level 2
Connectable conductor cross section multi-wired 0.25 - 2.5
Connectable conductor cross section fine-strand without cable end sleeve 0.25 - 4
