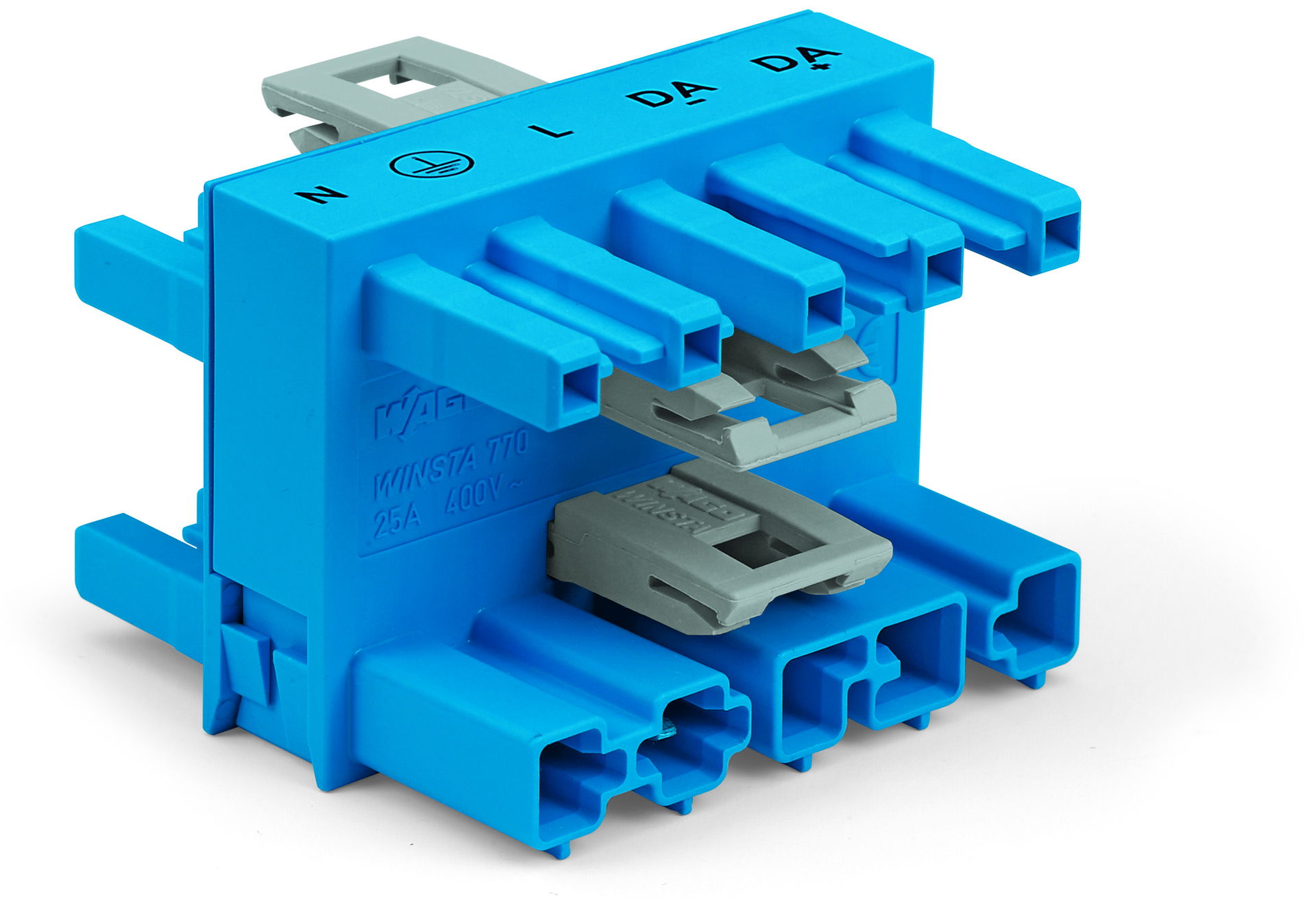

3-way distribution connector 5-pole Cod. I blue

Name: 3-way distribution connector 5-pole Cod. I blue
Brand: Wago
SKU: 770-618
Availability: InStock

3-way distribution connector; 5-pole; Cod. I; 1 input; 3 outputs; blue

Product identifiers

SKU: 770-618

EAN: 4050821394778

GTIN: 4050821394778

MPN: 770-618

Price range: £ 13.06 - £ 25.00 Excl. VAT

Specifications

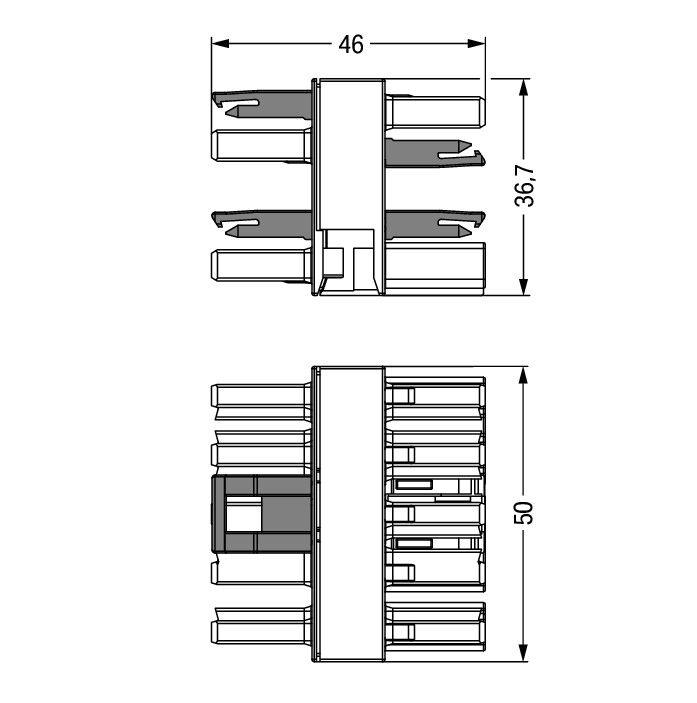

Width	50
Height	36.7
Length	46
Fire load	0.18861
Halogen free	yes
Phase pickup	-
Rated current	25
Rated voltage	400
Number of poles	5
Type of locking	Integrated in plug-in connector
Contact material	CuSn
Housing material	Polyamide (PA)
Number of inputs	5
Pollution degree	3
Mechanical coding	yes
Number of outputs	15
Pole codification	Other
Rated surge voltage	6
Type of distributor	H-distributor
Mounting possibility	With separate adapter
Continuity resistance	1
Degree of protection (IP)	IP20
Rated current to luminaire	25
Surface treatment contacts	Tinned
Colour coding/contact insert	Blue
Type of integrated switching	None
RAL-number coding/contact insert	-
Colour of the separate adapter piece	-
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
