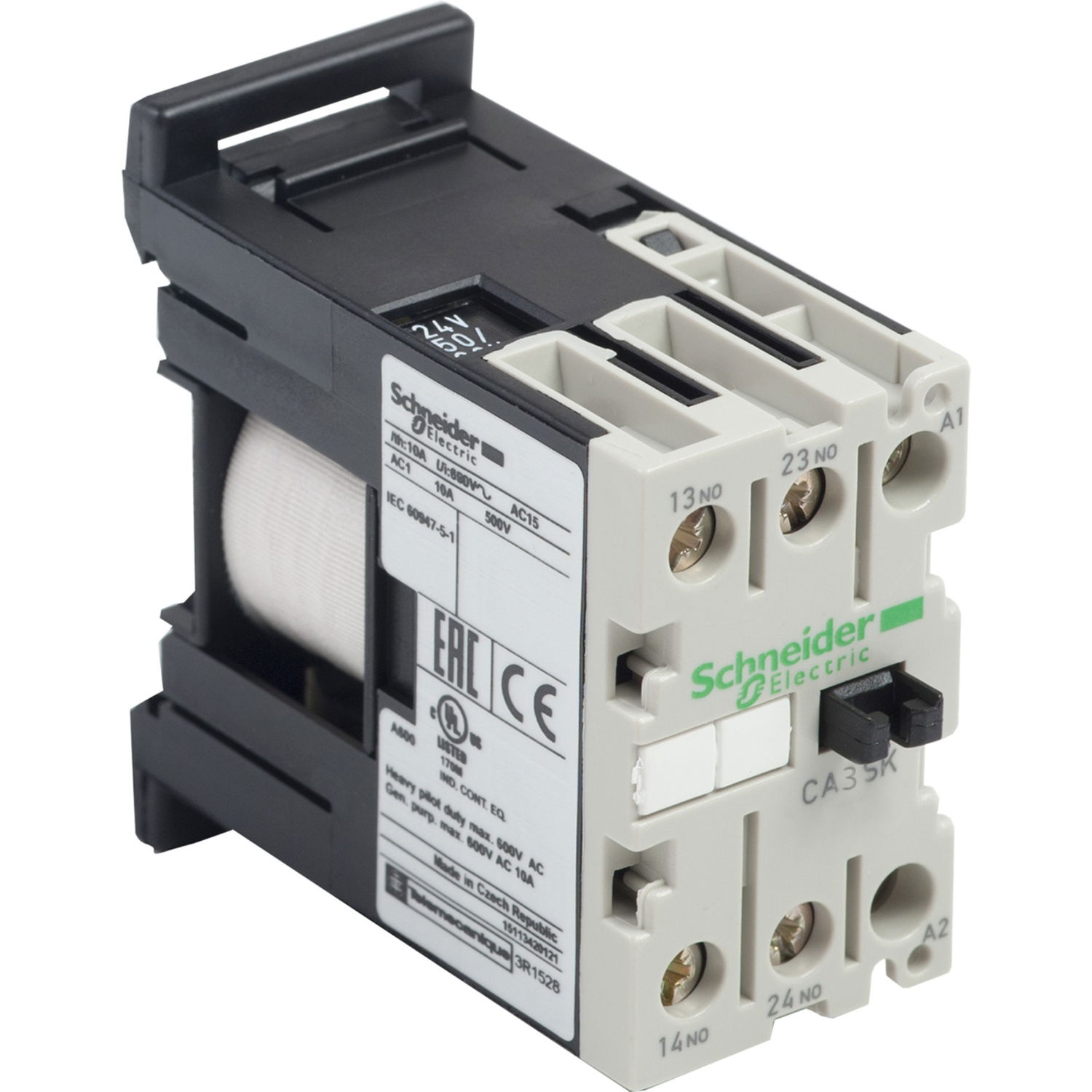

TeSys SK control relay - 2 NO - <= 690 V - 24 V DC standard coil

Link copied
SKU
EAN
GTIN
MPN

TeSys SK control relay - 2 NO - <= 690 V - 24 V DC standard coil by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 4 of them. Trade prices range from £38.67 to £67.26 excl. VAT. Voltimum+ members earn 8 points per unit.

TeSys SK mini-control relay, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC), (RoHS/REACh).

Voltimum+ Loyalty Programme Loyalty points: 8

Price range: £ 38.67 - £ 67.26 Excl. VAT

Specifications

Depth 57 mm
Width 45 mm
Height 58 mm
Interface no
Mounting method DIN-rail/screw
With LED indication no
Operating voltage DC
Rated switch current 0.005 A
Operating voltage AC 50 Hz
Voltage type for actuating DC
Rated control supply voltage DC
Connection type auxiliary circuit Screw connection
Rated control supply voltage AC 50 Hz
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0
Number of auxiliary contacts as normally closed contact, delayed switching 0

Documents

Declaration of Conformity (Sustainability)

CA3SK20BD REACh Regulation

Open

Instruction sheet

TeSys SK - LC1/LP1SK - CA2/CA3SK Mini contactors and auxiliary contactors - Instruction sheet

Open

Product data sheet

Open

Catalog

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

Open

Declaration of Conformity (Sustainability)

CA3SK20BD EU RoHS Directive

Open

Declaration of conformity

UKCA Declaration TeSys SK_CA.SK

Open

Environmental Disclosure

PEP_TeSys LC1K09-K16

Open

Circularity Profile

TeSys K 9A AC3 CONTACTOR

Open
