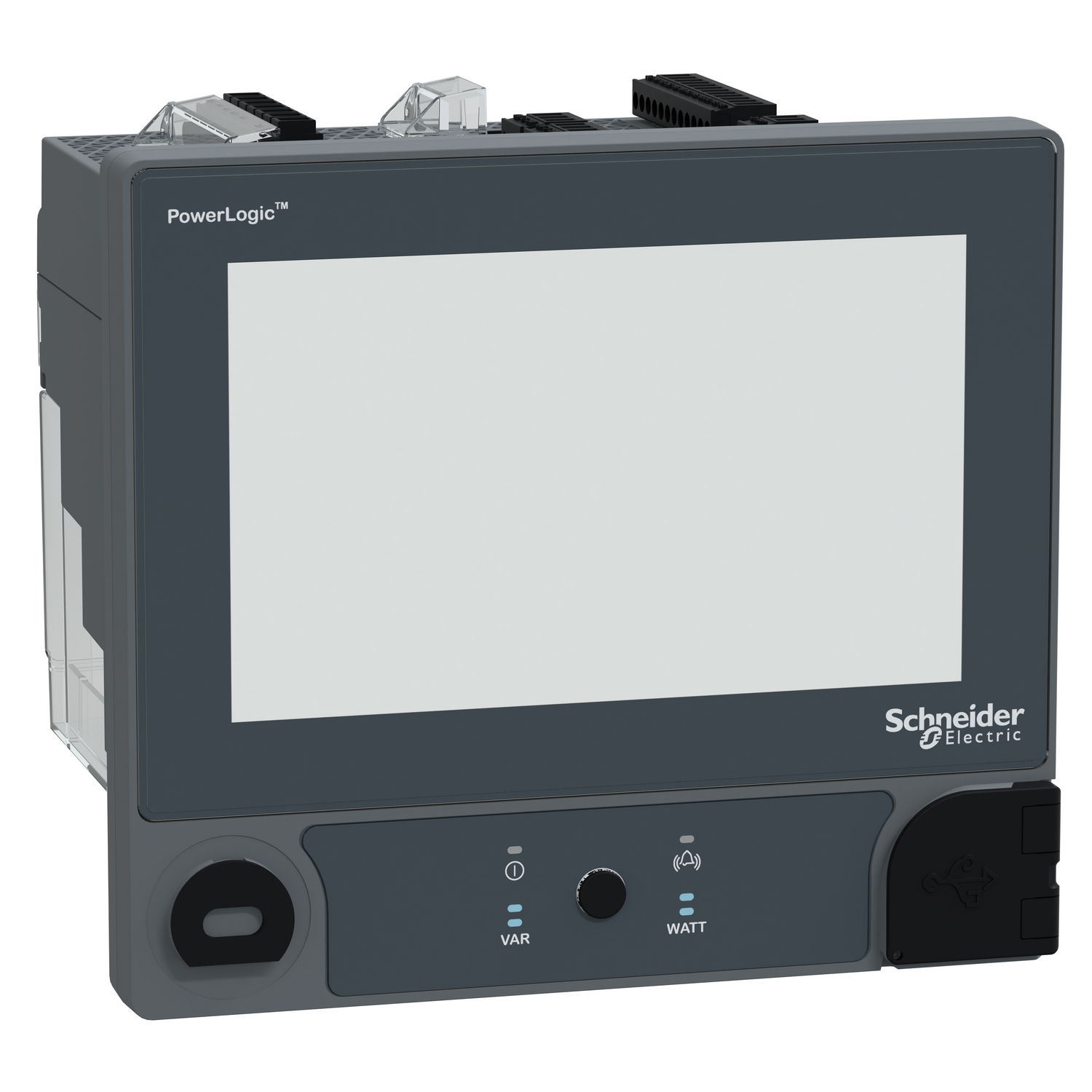

PowerLogicâ„¢ ION9000 meter, DIN mount, 192 mm display, B2B adapter, HW kit
Schneider Electric

PowerLogicâ„¢ ION9000 meter, DIN mount, 192 mm display, B2B adapter, HW kit

The PowerLogic ION9000 is your 24/7 power quality expert, providing information, not just data. A comprehensive, industry-leading Power Quality Instrument (PQI-A) certified to IEC 62586-1/-2 ensures reliable, precision performance that is perfect for both supply and demand side applications. Third-party lab verified accuracy to Class 0.1S (ANSI C12.20, IEC 62053-22). Highly customizable and modular, ION technology programmability and field installable option modules can satisfy any solution, protecting your investment now and into the future. Providing power quality analysis according to both EN 50160 and IEEE 519, and patented Disturbance Direction Detection, you become a PQ expert and will be able to respond rapidly to system events. Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol, ability to enable/disable communication ports, and 50 user configurable accounts. With 2 GB of memory to support 50 data logs, 50+ user-definable alarms, disturbance and transient waveforms. 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 8 digital inputs, 4 digital outputs and 2 relay outputs, plus the ability to add up to 4 option modules. Option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Ability to capture power quality events as short as 20 µs and record both waveforms and 1/2-cycle RMS concurrently on any event. Voltage inputs of 100 to 690 V between phases; Current inputs of 1 A, 5 A; current class 2, 10, 20 A; Frequency of 20-450 Hz. Wide control power range of 90 to 480 VAC or 110 to 480 VDC. DIN rail mounting with remote display and panel mounting (with back to back adapter), plus 2 display options, further enhance the flexibility and adaptability of the ION9000.

Product identifiers

SKU: METSEION92040
EAN: 3606481352316
GTIN: 3606481352316
MPN: METSEION92040

V+ Loyalty points: 5235

Price: £ 13,991.61 Excl. VAT

Categories

Measuring instruments and tester

Features

Depth
135.3 mm
Width
160 mm
Height
160 mm
Display
None
Remote display
TRUE
Supply voltage DC
Sampling frequency
61440 Hz
Data transfer via PQDif
TRUE
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
With firmware signature
FALSE
Nominal voltage (Un) L-L
Nominal voltage (Un) N-L
Number of digital inputs
8
With transient detection
TRUE
Number of analogue inputs
0
Number of digital outputs
6
Number of analogue outputs
0
Supporting protocol for MQTT
FALSE
Display resolution (vertical)
480 px
Measuring range for frequency
Voltage type (supply voltage)
AC/DC
Number of Ethernet connections
2
Supporting protocol for Modbus
TRUE
With audit logging (audit log)
TRUE
Display resolution (horizontal)
800 px
Supporting protocol for PROFIBUS
FALSE
Flicker according to IEC 61000-4-15
TRUE
Supporting protocol for PROFINET IO
FALSE
Number of current measurement inputs
5
Number of voltage measurement inputs
4
Data evaluation according to EN 50160
TRUE
Degree of protection (IP), front side
Other
Supporting protocol for OPC UA PubSub
FALSE
With Role Based Access Control (RBAC)
TRUE
Fault record transmission via COMTRADE
TRUE
Web server with HTTPS transfer protocol
TRUE
Supporting protocol for other bus systems
TRUE
Accuracy class according to IEC 61000-4-30
A
Sampling frequency for transient detection
0.05 MHz
Supporting protocol for IEC 61850 Ethernet
TRUE
With logging of security events (security event log)
TRUE
Accuracy class active energy according to IEC 62053-22
0.1S
Accuracy class reactive energy according to IEC 62053-23
0.5S
Measurement of harmonics in frequency range 2 kHz - 9 kHz
TRUE
Measurement of harmonics in frequency range 9 kHz - 150 kHz
FALSE
