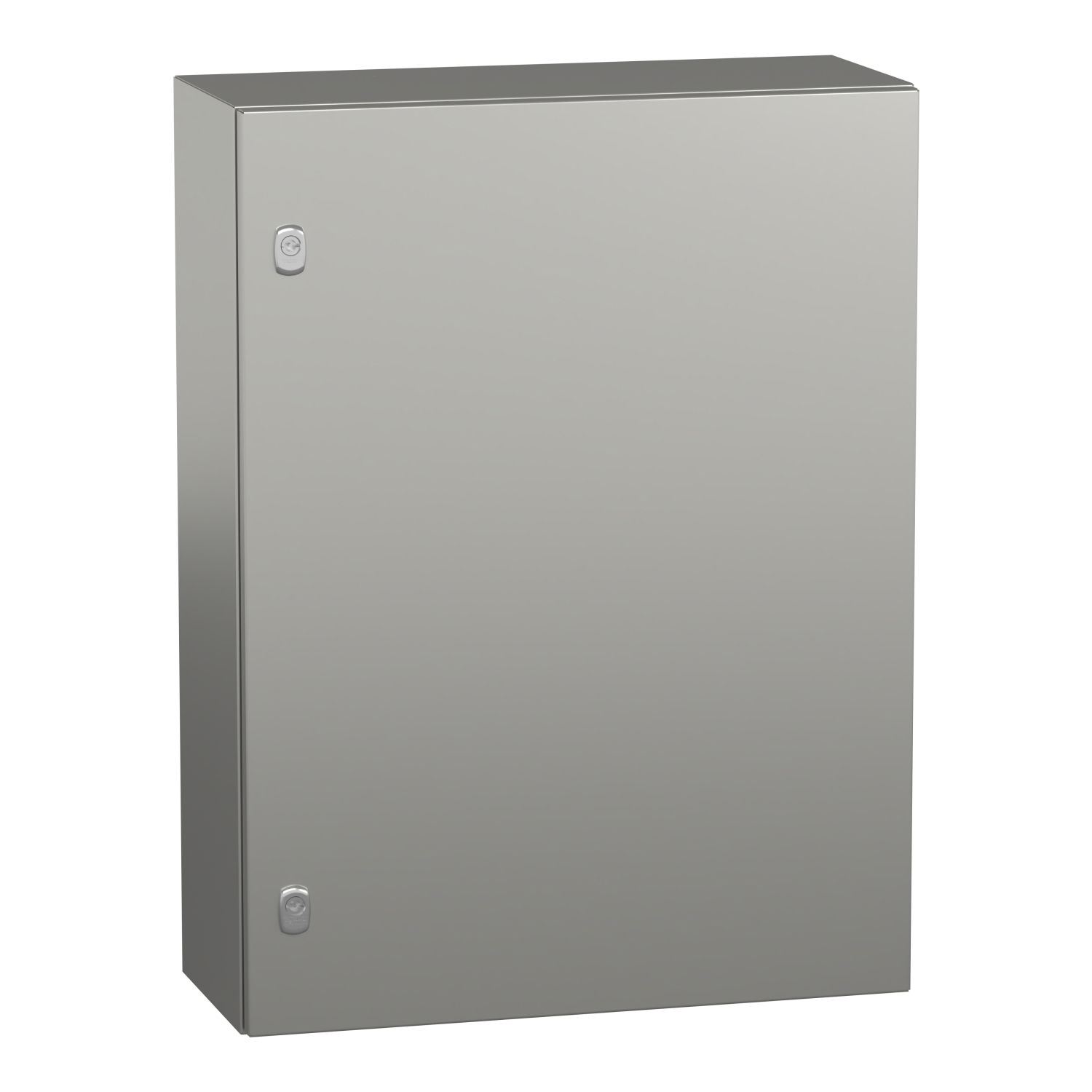

"PanelSet S3X stainless 316L, Scotch Brite® finish, H800xW600xD250 mm."

"PanelSet S3X stainless 316L, Scotch Brite® finish, H800xW600xD250 mm."

"PanelSet S3X stainless steel 316L wall-mounting enclosure is designed for multi-purpose applications and offers resistance to corrosion" "It has a nominal height, width and depth of 800mm, 600mm and 250mm respectively" "This enclosure is certified to CAN/CSA 22 and UL 508 type A standards and has a high resistance to dust and water with an IP66 rating (IEC60529)" "The enclosure is composed of a body, a plain door and two locks" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a two lock points lock with a 3mm double-bar insert" "The door can be removed for maintenance purposes" "The body and door are finished with Scotch-Brite® brushed surface finish and the lock is chromium plated" "The net weight of the enclosure is 22,58kg"

Product identifiers

SKU: NSYS3X8625H
EAN: 3606480155307
GTIN: 3606480155307
MPN: NSYS3X8625H

Voltimum+ Loyalty Programme Loyalty points: 189

Price: £ 1,408.46 Excl. VAT

Videos

How to video

Specifications

Depth 250 mm
Width 600 mm
Colour Stainless steel
Height 800 mm
Material Stainless steel
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Stainless steel 316 (V4A)
Surface finishing Other
With mounting plate no
With ventilation door no
Floor standing wall model no
Suitable for wall built-in no
Degree of protection (NEMA) 12
Suitable for metrical mounting yes
Max. permissible load of the door(s) according to IEC 62208 50 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
