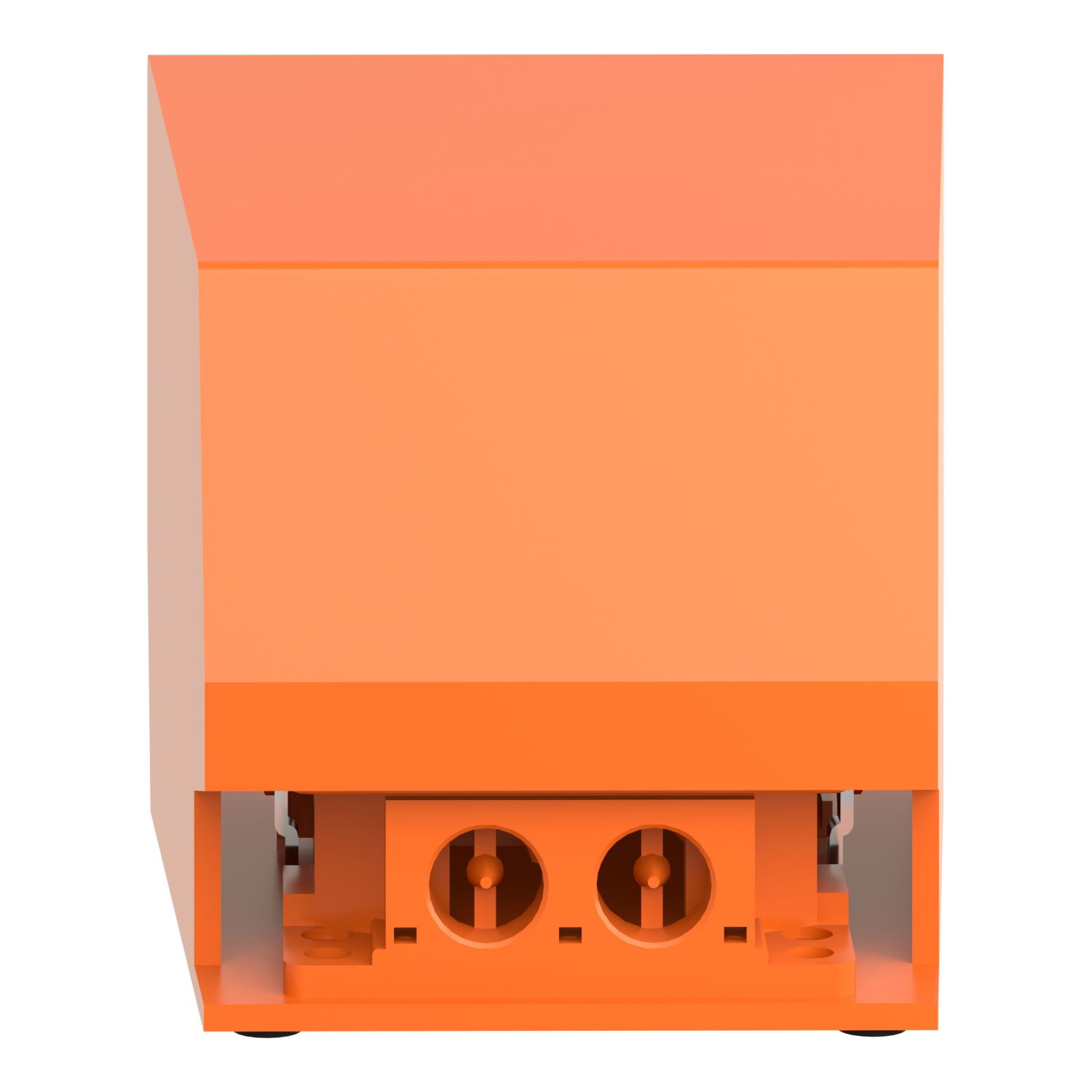

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO – Image 2 of 13

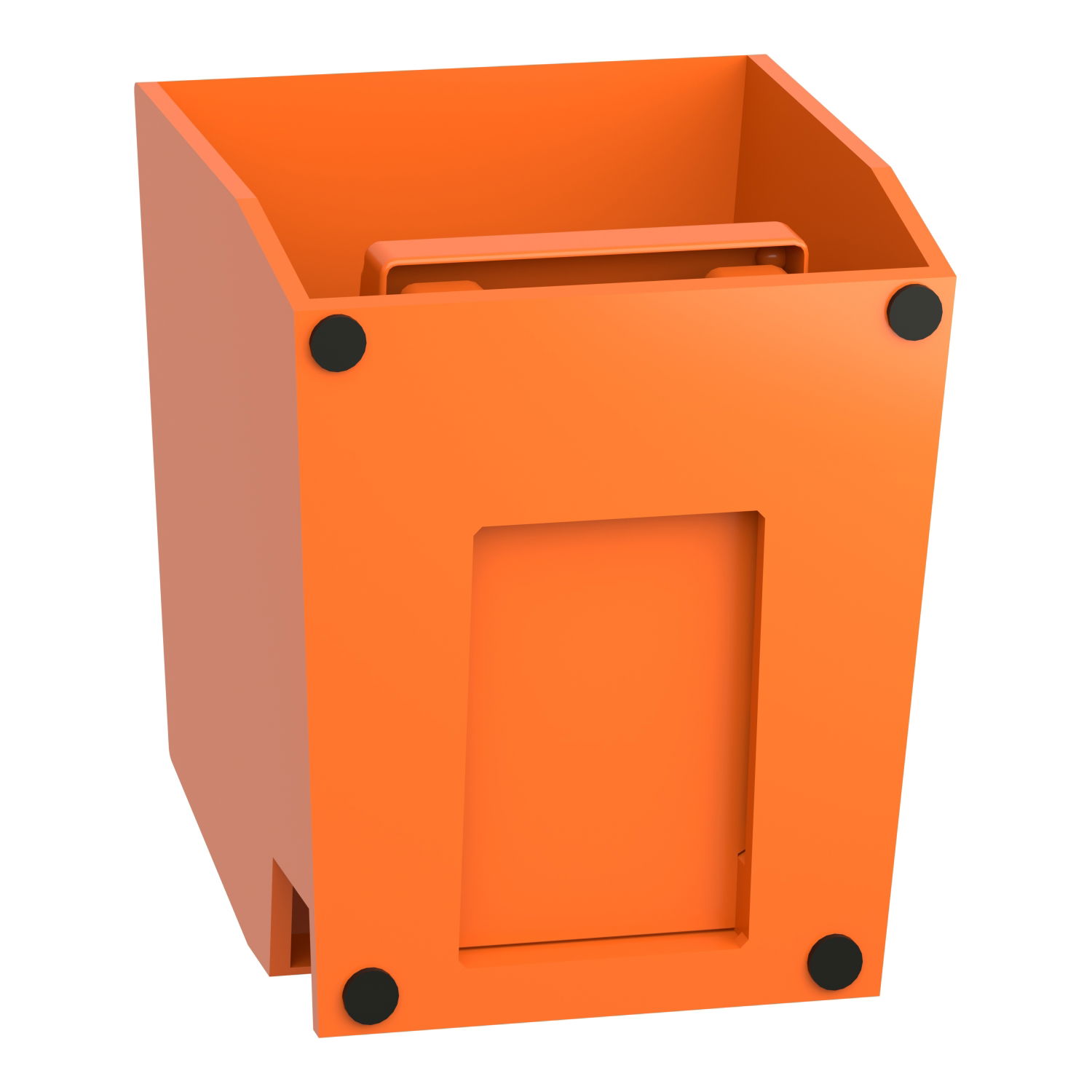

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO – Image 3 of 13

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO – Image 4 of 13

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO – Image 5 of 13

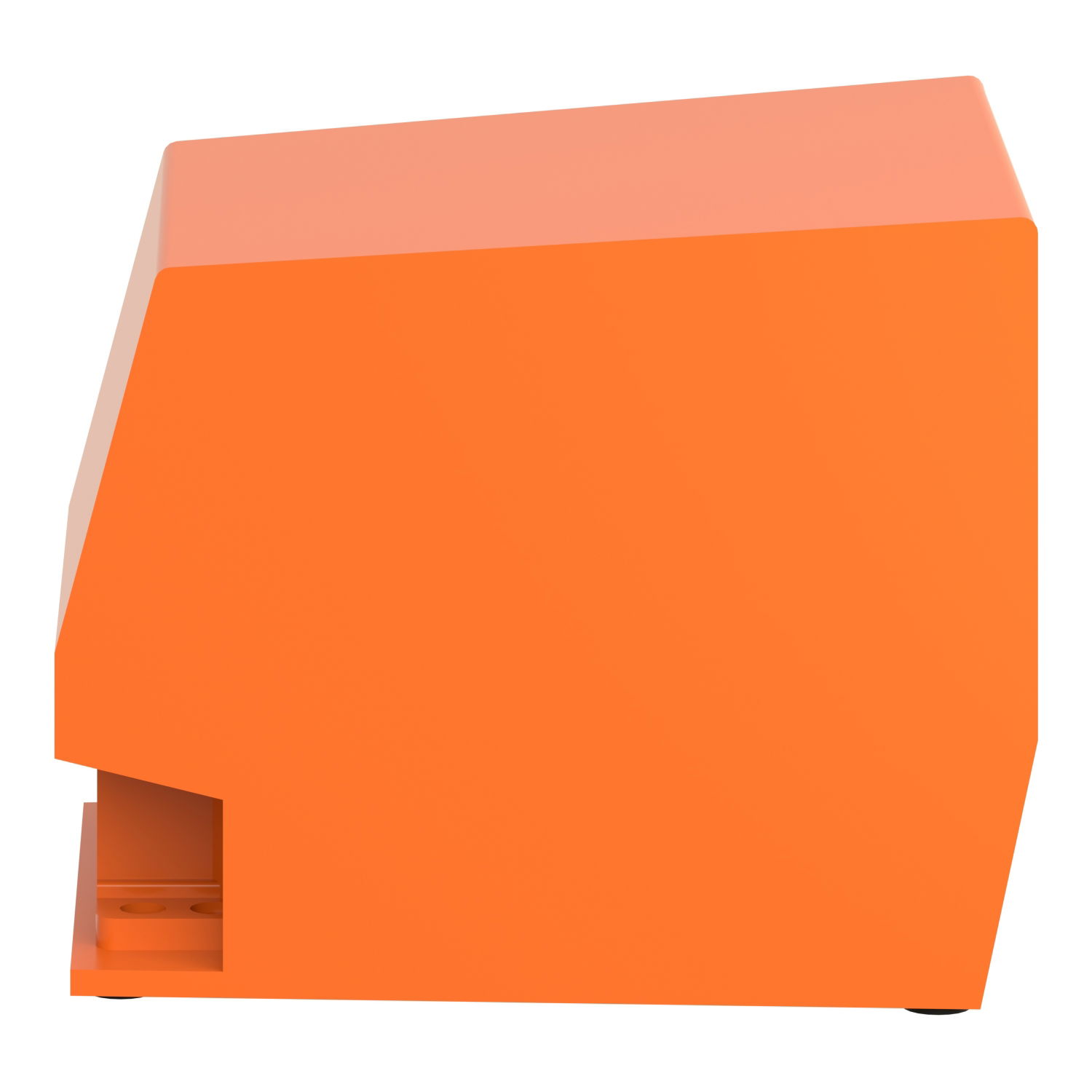

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO – Image 6 of 13

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO – Image 7 of 13

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO – Image 8 of 13

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO – Image 9 of 13

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO – Image 10 of 13

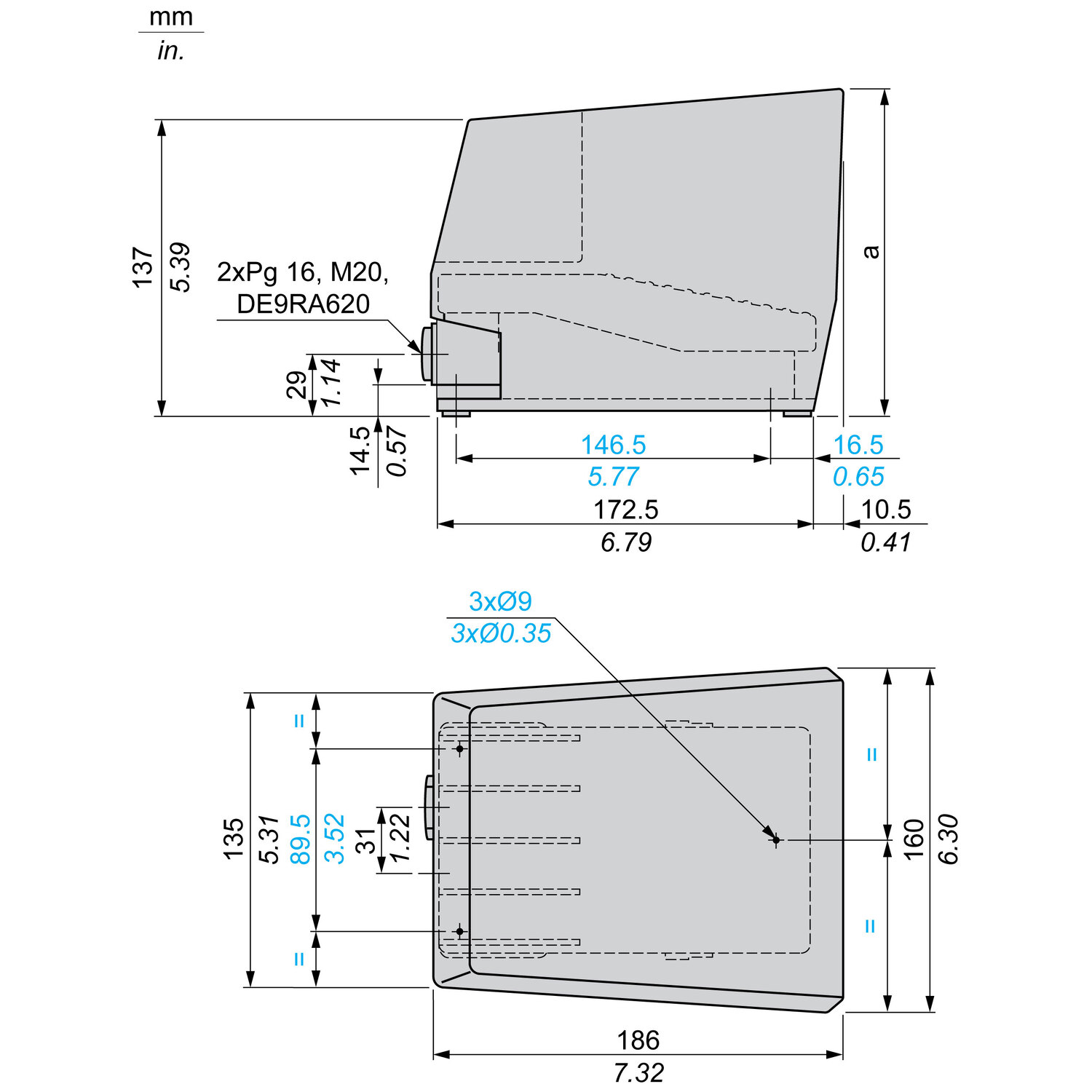

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO – Image 11 of 13

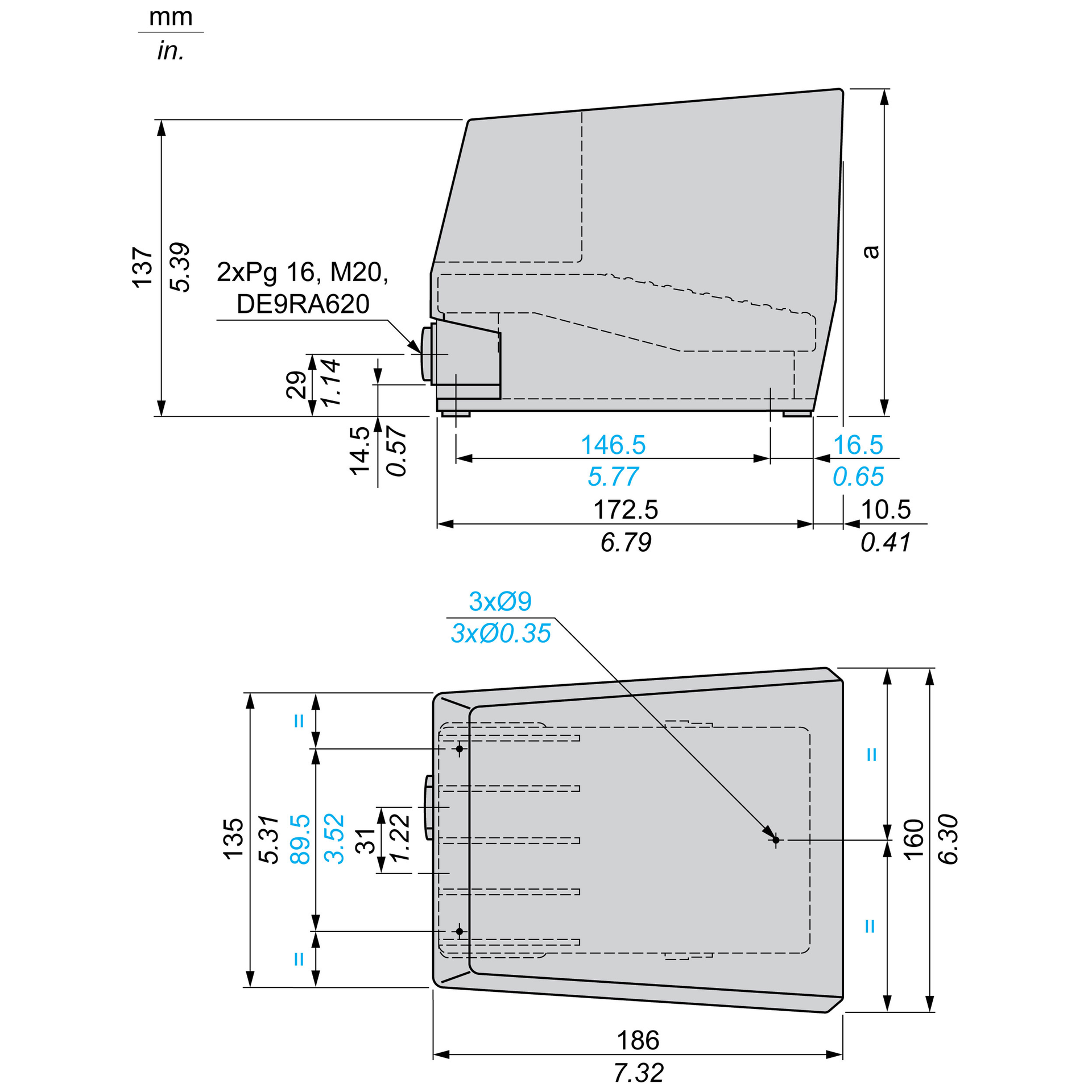

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO – Image 12 of 13

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO – Image 13 of 13

1 / 13

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO

Name: Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO
Brand: Schneider Electric
SKU: XPER711
Availability: InStock

Single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £344.63 excl. VAT. Voltimum+ members earn 40 points per unit.

This Harmony XPER711 is a single foot switch. Its degree of protection is IP66. It has a cover, metallic material, orange color, 2 NC + 2 NO contacts. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.

Product identifiers

SKU: XPER711

EAN: 3389110471014

GTIN: 3389110471014

MPN: XPER711

Loyalty points: 40

Price: £ 344.63 Excl. VAT

Specifications

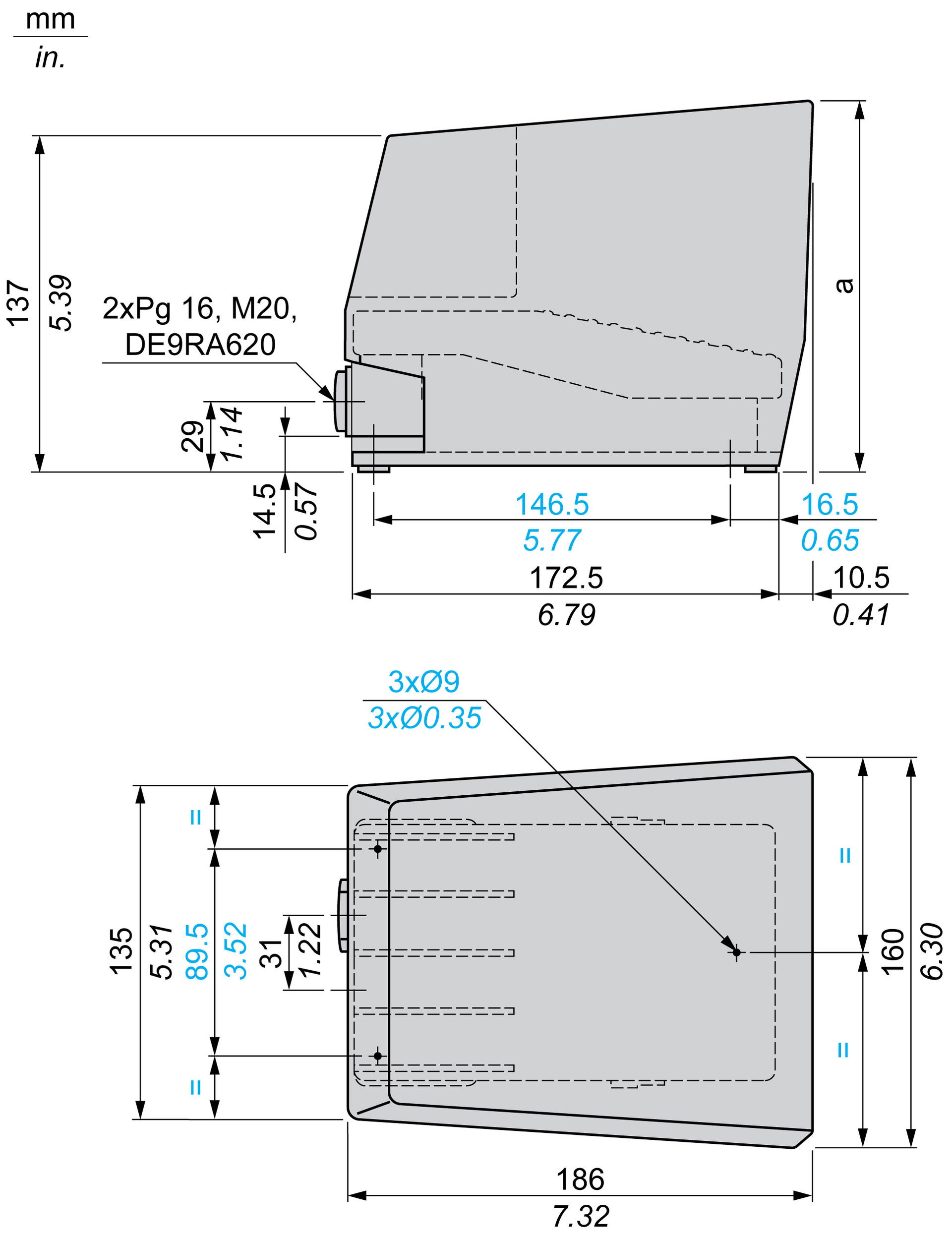

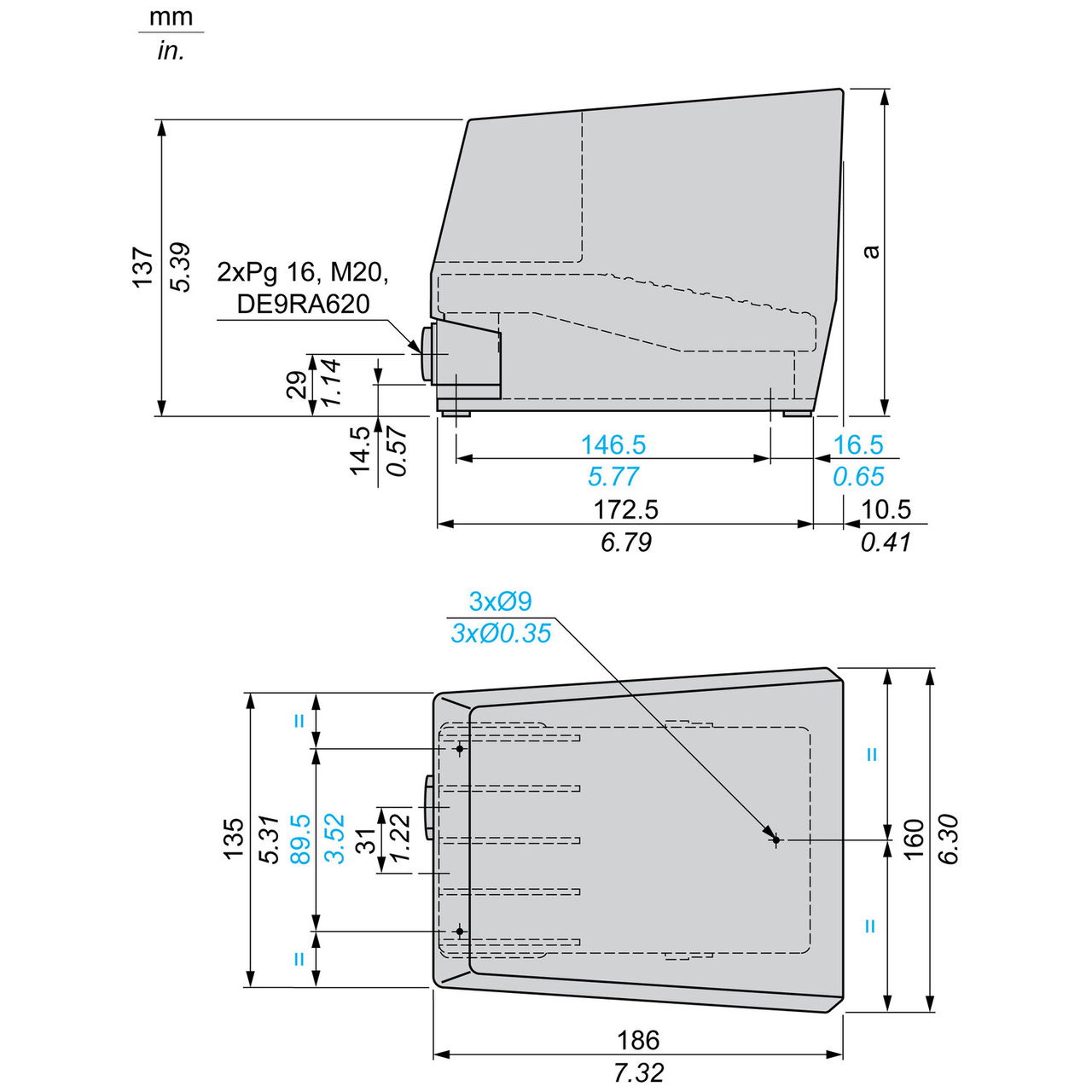

Depth	186 mm
Width	160 mm
Colour	Orange
Height	135 mm
Material	Metal
Type of command	On or off
With interlocking	yes
With protection hood	yes
Degree of protection (IP)	IP66
Number of switch positions	1
With protective insulation	no
Degree of protection (NEMA)	Other
Switching function latching	no
Suitable for safety functions	yes
Number of contacts as change-over contact	0
Rated operation current Ie at AC-15, 230 V	3 A
Number of contacts as normally open contact	2
Number of contacts as normally closed contact	2
