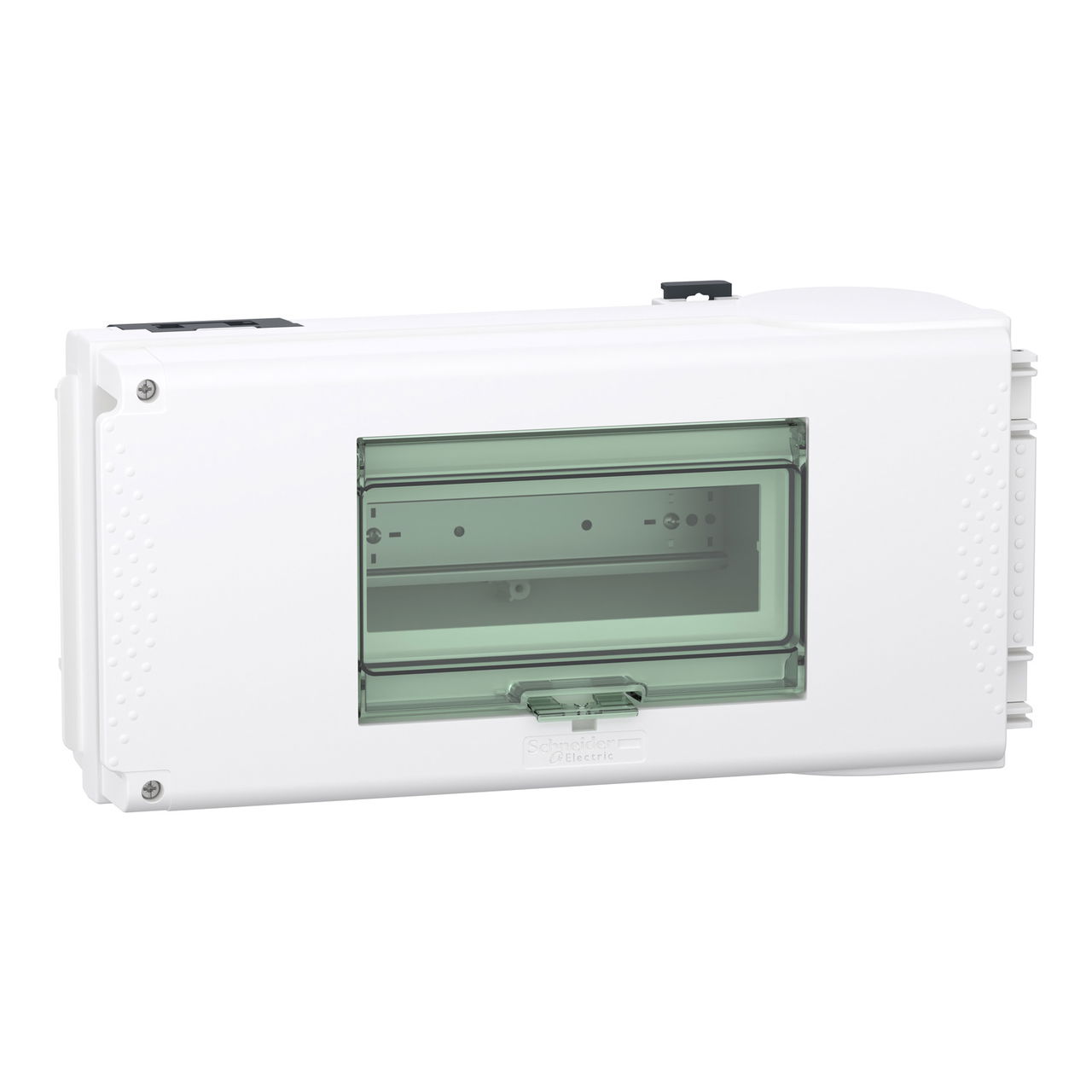

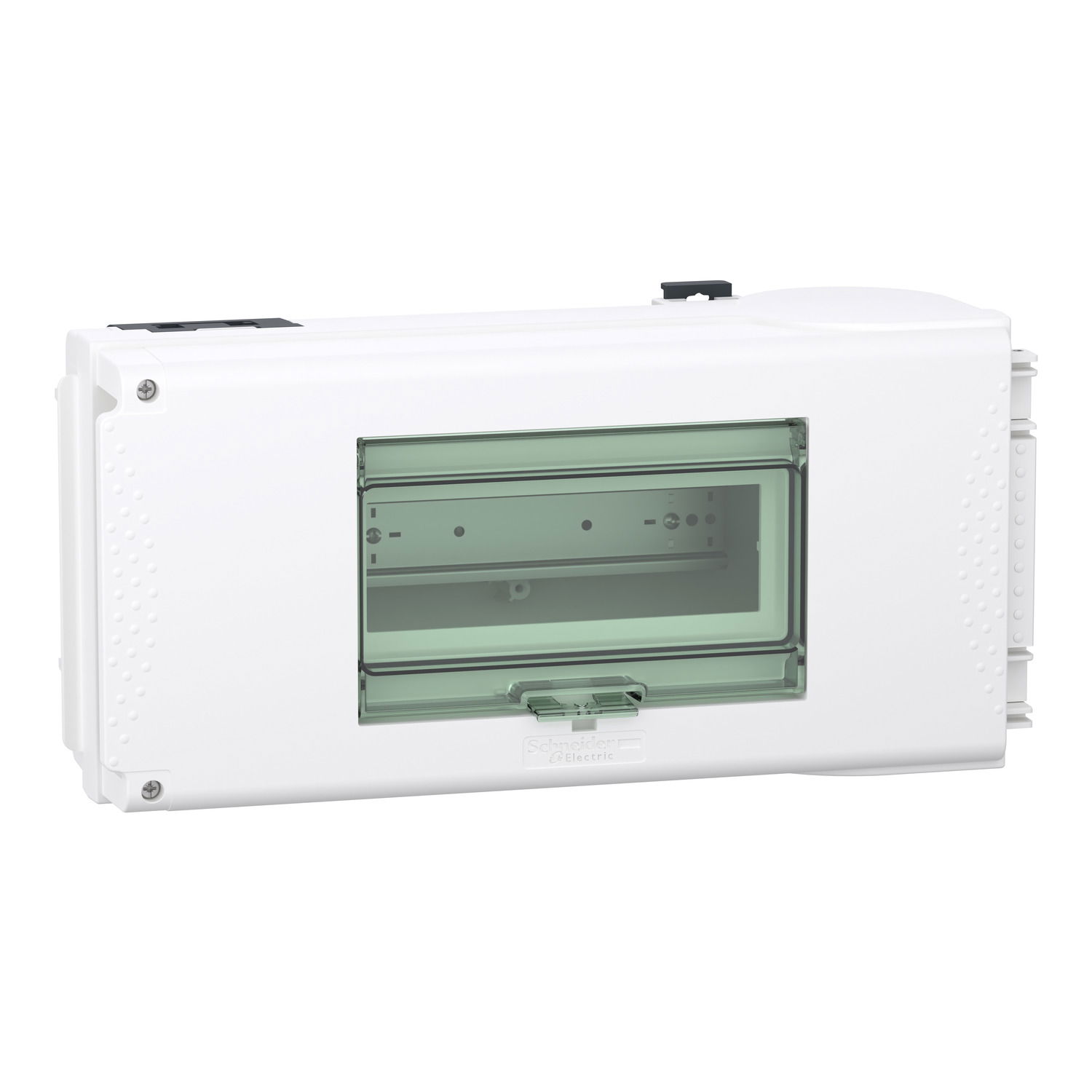

TAPOFF UNIT 63A FOR MODULAR EQUIPMENT

Link copied
SKU
EAN
GTIN
MPN

TAPOFF UNIT 63A FOR MODULAR EQUIPMENT by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £180.99 excl. VAT. Voltimum+ members earn 19 points per unit.

This is a 4 poles tap off unit with isolator for Canalis KN busbar trunking with plug-in outlets. It is used for rapid connection of loads or secondary lines in compliance with installation standards IEC 60364 and regulations concerning TT, IT and TNS earthing systems. This tap off unit for modular devices (not provided) accepts up to 8 devices of 18mm width (iC60 type). The rated operational current is 63A. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. Mounting by plug-in with fixed polarity. The tap-off unit polarity is 3L+N+PE, disconnection by opening the tap off unit cover. Door/cover could be open right side. Tap-off unit cover can be lead sealed to prevent circuit breaker switching by unauthorised persons. It is suitable for TT, IT, TN-S and TN-C earthing system. The colour is white RAL 9001. Blanking plate is provided, MCB circuit breaker have to be ordered separately. It provides IP55 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).

Voltimum+ Loyalty Programme Loyalty points: 19

Price: £ 180.99 Excl. VAT

Specifications

Width 106 mm
Colour White
Height 165 mm
Length 344 mm
Protection None
RAL-number 9001
With locking no
Branch off type Pipe in-lead
Phase selection no
Rated voltage AC 50 Hz
Degree of protection (IP) IP55
Number of NEMA socket outlets 0
Number of conductors (without earthing) 4
