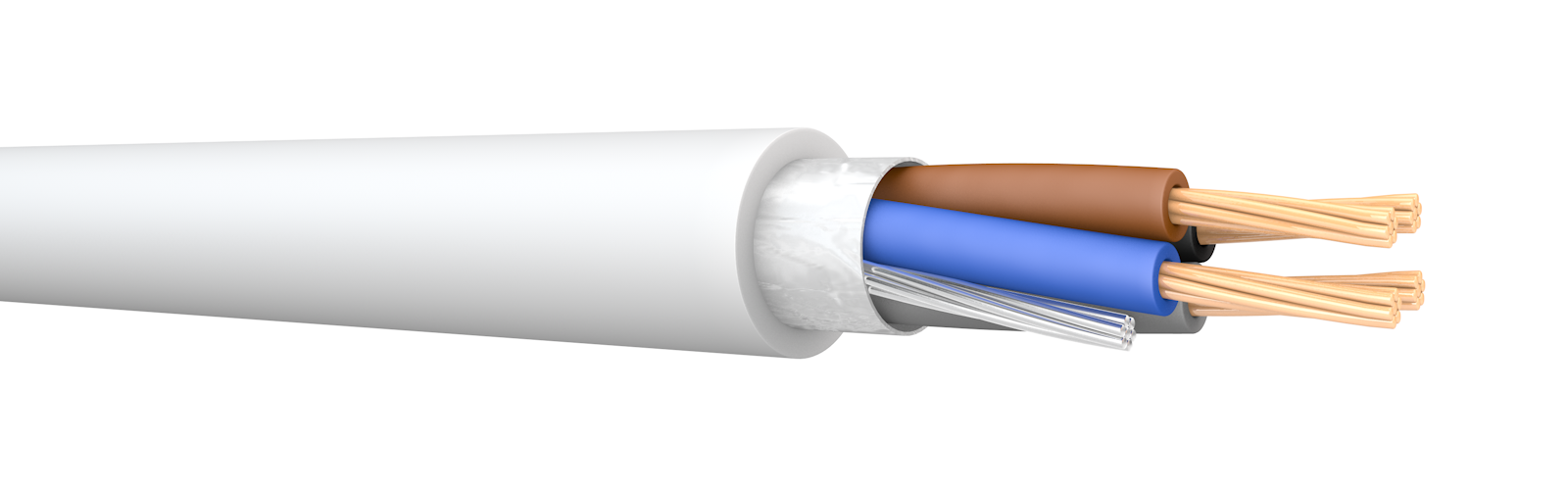

LSX 4x2.5 100m Reel White LSOH® Screened Wiring Cable. BS 8436. 300/500 V

LSX 4x2.5 100m Reel White LSOH® Screened Wiring Cable. BS 8436. 300/500 V

Prysmian LSX® is a Low Smoke, Zero Halogen (LSOH®) and flame retardant cable developed to address specific needs of the modern building services and systems

Product identifiers

SKU: 20175550
EAN: 5020993011635
GTIN: 5020993011635

Price: £ 3.88 Excl. VAT

Specifications

Screen yes
Weight 220
Drain wire yes
Core colour Several
Lead sheath no
Cable geometry Round
Number of cores 4
Conductor surface Bare
Conductor category Class 2 = stranded
Nominal voltage U0 300
Shape of conductor Round
Core identification Colour
Outer diameter approx. 12.3
Material core insulation Polyolefin
Max. conductor temperature 70
Conductor resistance at 20 °C 7.41
Certified as airport lighting cable no
Specification material outer sheath Other
Suitable for underground installation no
Oil resistant according to EN IEC 60811-404 no
Permitted cable outer temperature during assembling/handling
