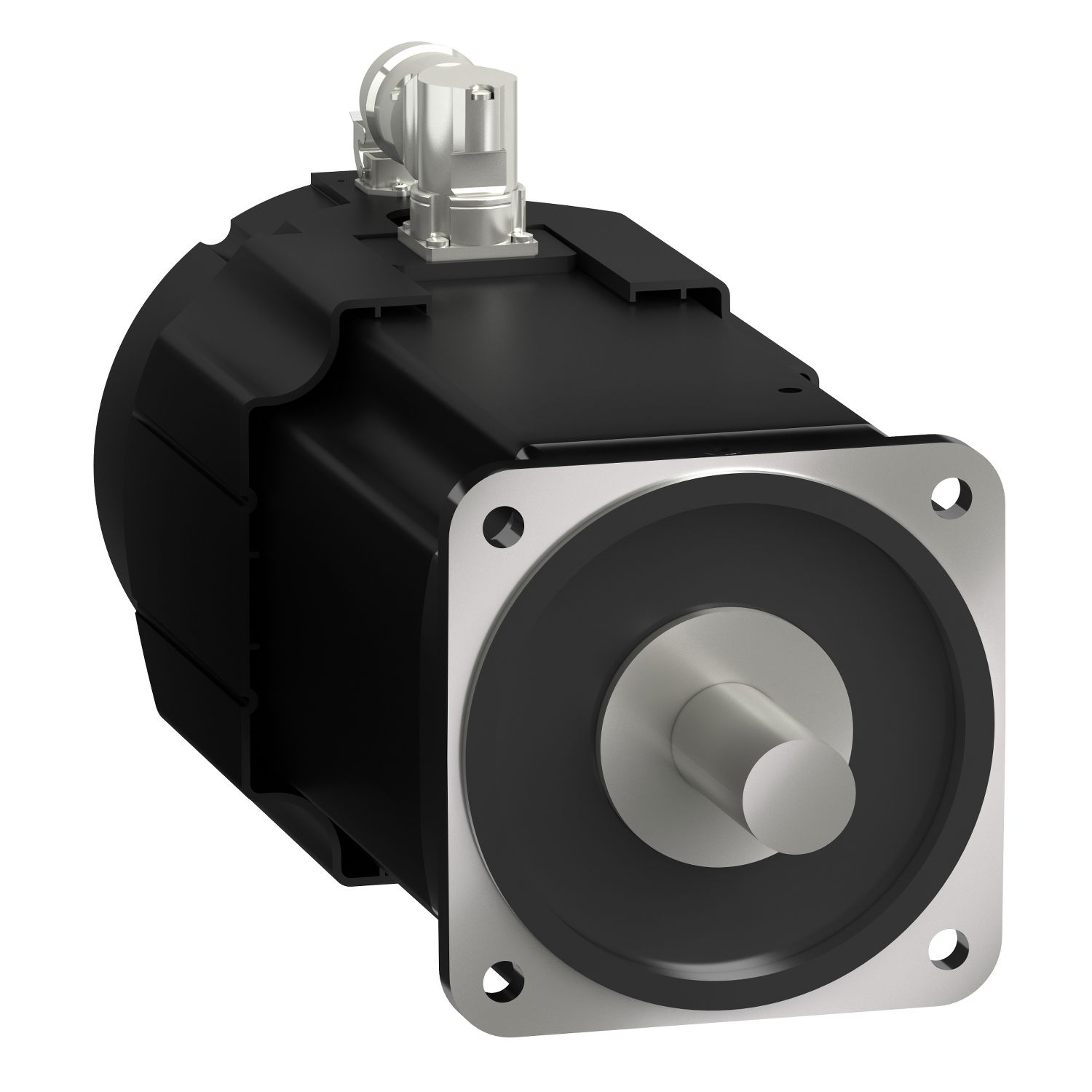

Servo motor BMH - 100 Nm - 3000 rpm - untapped shaft - without brake - IP20/IP65

Name: Servo motor BMH - 100 Nm - 3000 rpm - untapped shaft - without brake - IP20/IP65
Brand: Schneider Electric
SKU: BMH1904P22F2B
Price: 6389.00 GBP
Availability: OutOfStock

Product identifiers

SKU: BMH1904P22F2B

EAN: 3606485458922

GTIN: 3606485458922

MPN: BMH1904P22F2B

Loyalty points: 1065

Price: £ 6,389.00 Excl. VAT

Specifications

Model	Rotary current synchronous motor
Bearing	Other
Duty cycle	Other
Power factor	-
Voltage type	AC/DC
Rated current	40 A
Rated voltage	480 V
Cooling method	Other
Nominal torque	46.8 Nm
Shaft end type	Other
Number of poles	10
Rated frequency
Housing material	Other
Number of phases	3
Construction type	Other
Overload capability	no
Full-load efficiency	-
Intrinsic safety (IS)	None
Operating temperature
Starting torque ratio	0
Breakdown torque ratio	0
Motor efficiency class	Other
Starting current ratio	0
With anti-condensation	no
Degree of protection (IP)	IP65
Degree of protection (NEMA)	-
Frame size according to IEC	-
Suitable for frequency control	no
Voltage anti-condensation heater	-
Insulation class according to IEC	Other
Vacuum pressure impregnation (VPI)	Other
Rated performance at rated frequency	9.8 kW
Output power anti-condensation heater	-
Rated rotational speed at rated frequency	3000 1/min
With resistance temperature detector (RTD)	no
With positive temperature coefficient resistor (PTC)	no

Documents

Deeplink product page
Environmental compliance declaration
User guide
Product data sheet
Environmental compliance declaration
Environmental compliance declaration
Declaration of conformity
Environmental disclosure
