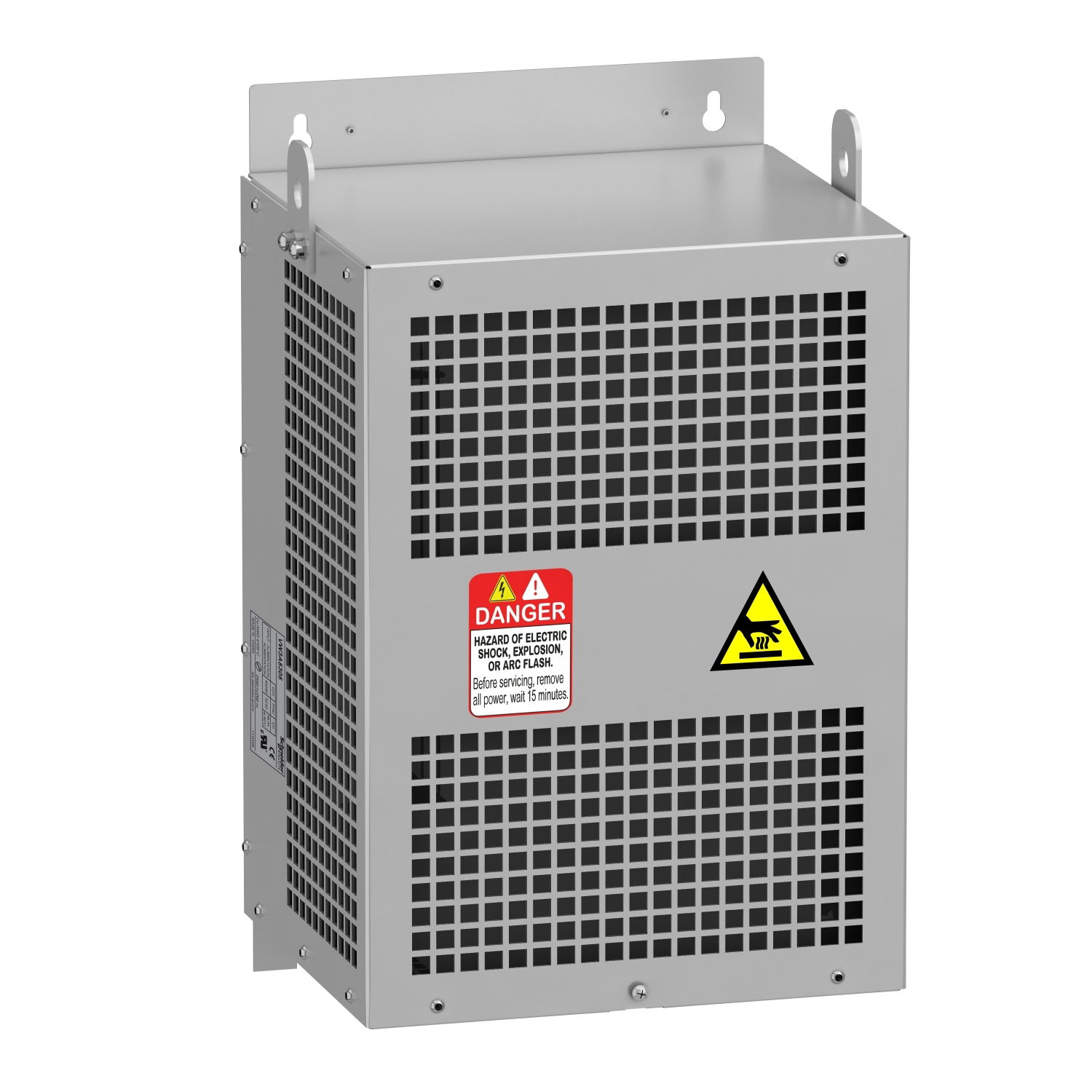

Output dv/dt filter for variable speed drive - IP20
Output dv/dt filter for variable speed drive - IP20
Output dv/dt filter for variable speed drive - IP20 by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £865.70 to £874.36 excl. VAT. Voltimum+ members earn 109 points per unit.
This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 95A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP20. It weighs 19kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.
Product identifiers
SKU: VW3A5305
EAN: 3606480736728
GTIN: 3606480736728
MPN: VW3A5305
Loyalty points:
109
Price range: £ 865.70 - £ 874.36 Excl. VAT
Categories
ETIM group
Specifications
| Accessory | yes |
| Spare part | no |
| Type of accessory/spare part | Filter |
