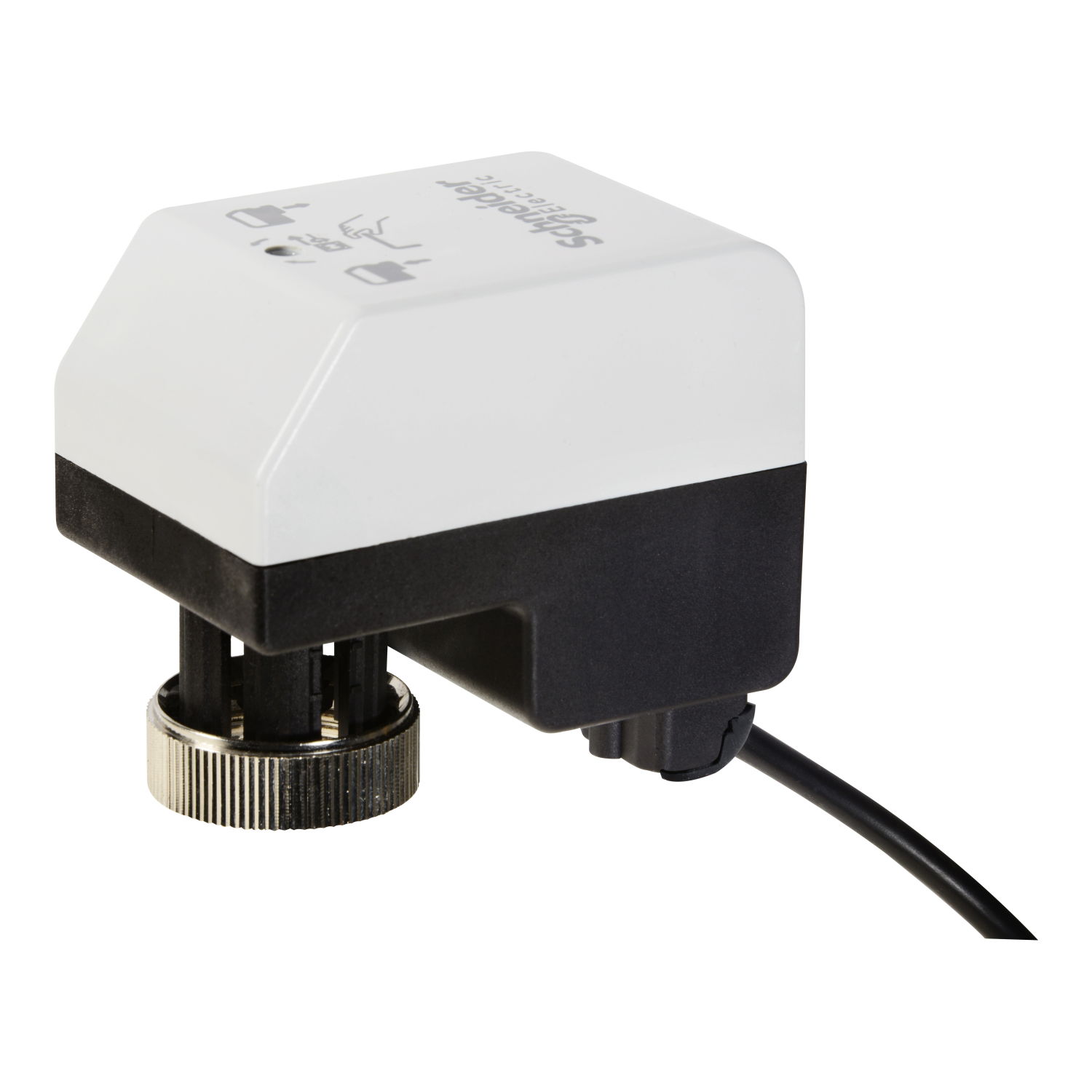

Act: Elec, Mod, 0-10 VDC, NSR, 24 VAC, 200 N, Linear, IP43

Link copied
SKU
EAN
GTIN
MPN

Act: Elec, Mod, 0-10 VDC, NSR, 24 VAC, 200 N, Linear, IP43 by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £342.81 excl. VAT. Voltimum+ members earn 39 points per unit.

The MZ20 is a compact precise actuator for the VZ219, VZ319 and VZ419 valves. The long stroke is an electro-mechanical zone actuator. The actuator provides precise valve position and flow for good hydronic control. Reliable long term operation is provideed by the optimal design without feedback potentiometer or end switches. Supply voltage, 24 Vac and Force, 200 N. Control voltage: …1 V. IP 43 for vertical mounting. Working temperature: -5 to 55 °C. Connection cable: 5.5 m. 6 m 24 V pluggable cabe pack, 1 pieces.

Voltimum+ Loyalty Programme Loyalty points: 39

Price: £ 342.81 Excl. VAT

Specifications

Depth 76.5 mm
Model Linear
Width 92 mm
Height 81 mm
Torque -
End contacts 1
Transmission Magnetic
Stroke length 6.5 mm
Operating time 100 s
Adjusting force 200 N
Housing material Plastic
Auxiliary contacts no
Ambient temperature
Max. angle of rotation -
Communications protocol -
Deactivated when closed no
Connection to stop valve M30 x 1.5
Max. electric power input 1.2 VA
Adjustable operating range yes
Regulation type modulating yes
Suitable for air accessory yes
Auxiliary contacts optional no
Automatic stroke recognition yes
Potential free switch contact no
Suitable for manual operation yes
With mechanical setting indicator no
Principle of operation safety function Other

Documents

Declaration of Conformity (Sustainability)

8455052000 REACh Regulation

Open

Instruction sheet

MZ20A / MZ20A-R Installation and Manual Override Instructions

Open

Product data sheet

Open

Catalog

2026 EMEA-APAC Valves & Actuators Product Catalog

Open

Declaration of Conformity (Sustainability)

8455052000 EU RoHS Directive

Open

Declaration of conformity

MZ20A, MZ20B Zone Actuators Declaration of Conformity

Open
