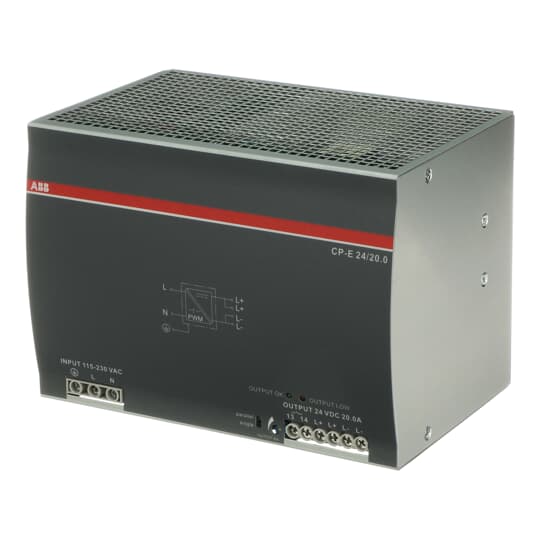

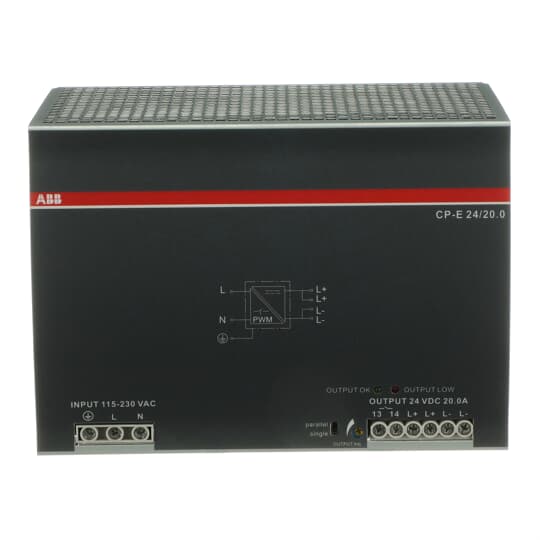

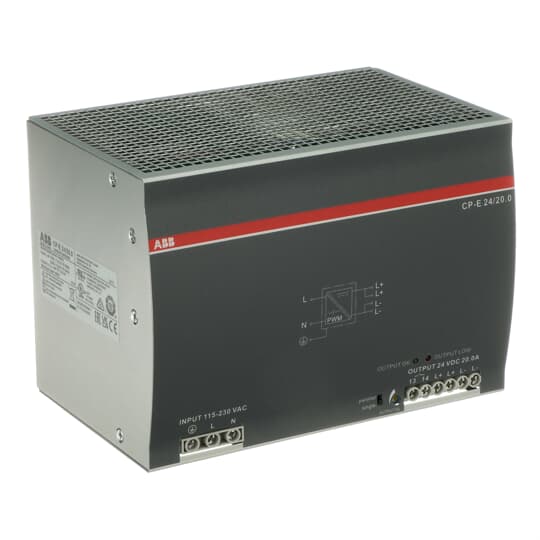

CP-E 24/20.0 Power supply In:115/230VAC Out: 24VDC/20A
1 / 3
CP-E 24/20.0 Power supply In:115/230VAC Out: 24VDC/20A
CP-E 24/20.0 Power supply In:115/230VAC Out: 24VDC/20A by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade price £309.76 excl. VAT. Voltimum+ members earn 170 points per unit.
The CP-E 24/20.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 115-230 V AC. The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory.
Product identifiers
SKU: 1SVR427036R0000
EAN: 4016779669702
GTIN: 4016779669702
MPN: CP-E 24/20.0
Loyalty points:
170
Price: £ 309.76 Excl. VAT
Specifications
| Depth | 123.6 |
| Width | 175 |
| Height | 123.6 |
| Stabilized | yes |
| Power output | 480 |
| Built-in width | 175 |
| Built-in height | 123.6 |
| Modular version | no |
