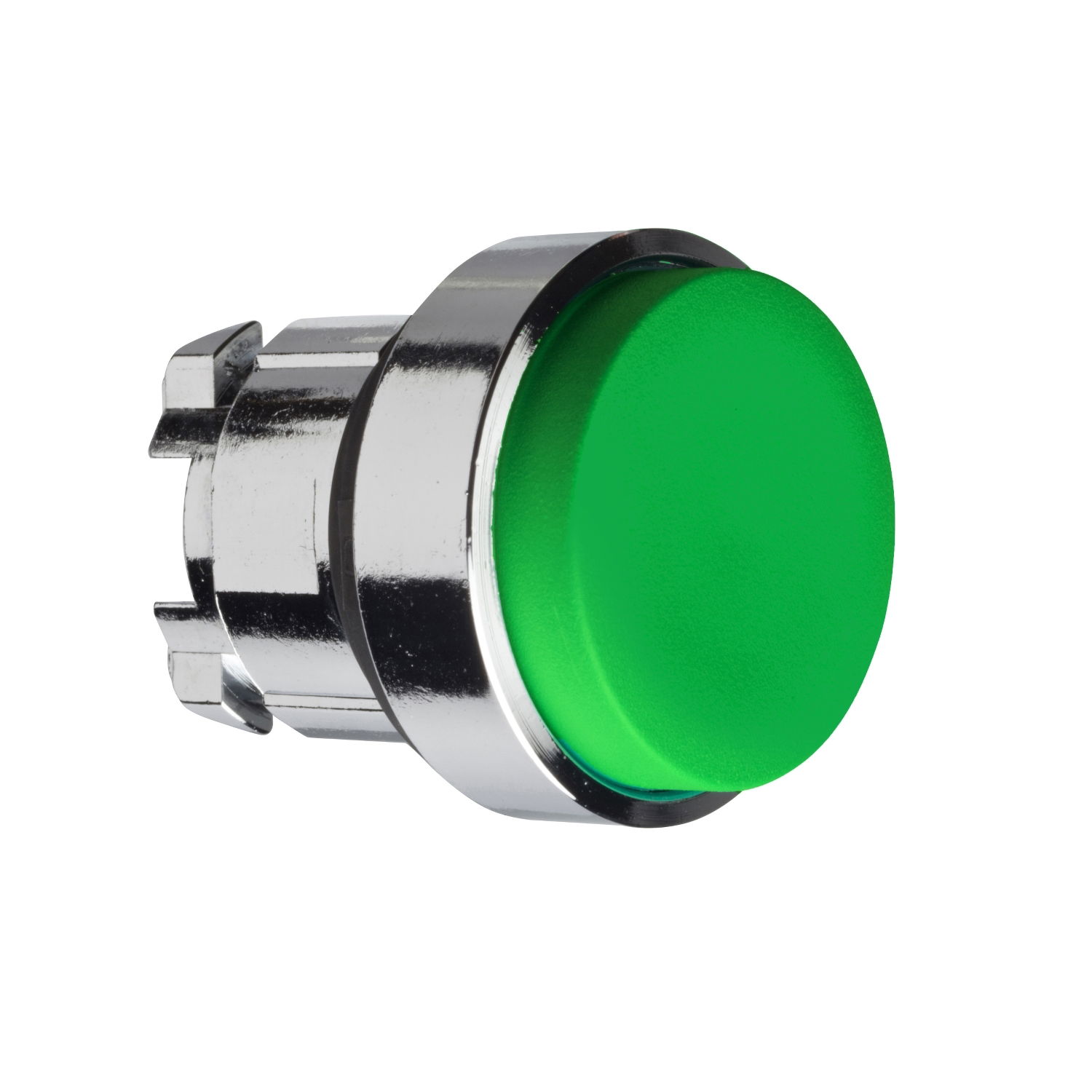

Green projecting pushbutton head Ø22 spring return unmarked

Green projecting pushbutton head Ø22 spring return unmarked – Image 2 of 13

Green projecting pushbutton head Ø22 spring return unmarked – Image 3 of 13

Green projecting pushbutton head Ø22 spring return unmarked – Image 4 of 13

Green projecting pushbutton head Ø22 spring return unmarked – Image 5 of 13

Green projecting pushbutton head Ø22 spring return unmarked – Image 6 of 13

Green projecting pushbutton head Ø22 spring return unmarked – Image 7 of 13

Green projecting pushbutton head Ø22 spring return unmarked – Image 8 of 13

Green projecting pushbutton head Ø22 spring return unmarked – Image 9 of 13

Green projecting pushbutton head Ø22 spring return unmarked – Image 10 of 13

Green projecting pushbutton head Ø22 spring return unmarked – Image 11 of 13

Green projecting pushbutton head Ø22 spring return unmarked – Image 12 of 13

Green projecting pushbutton head Ø22 spring return unmarked – Image 13 of 13

1 / 13

Green projecting pushbutton head Ø22 spring return unmarked

Link copied

SKU
EAN
GTIN
MPN

Green projecting pushbutton head Ø22 spring return unmarked by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £4.52 to £7.24 excl. VAT. Voltimum+ members earn 1 point per unit.

This Harmony XB4, projecting green button head operates with a spring return / impulse mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of pushbuttons and contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Loyalty points: 1

Price range: £ 4.52 - £ 7.24 Excl. VAT

ETIM group

Low-voltage industrial components

Specifications

Labelled	no
Colour button	Green
Hole diameter	22.5 mm
Spring-return	yes
Width opening	-
Height opening	-
Type of button	High
With front ring	yes
Colour front ring	Chrome
Material front ring	Metal
Suitable for lighting	no
With protective cover	no
Construction type lens	Round
Number of command positions	1
Switching function latching	no
Degree of protection (IP), front side	IP66
Degree of protection (NEMA), front side	Other
