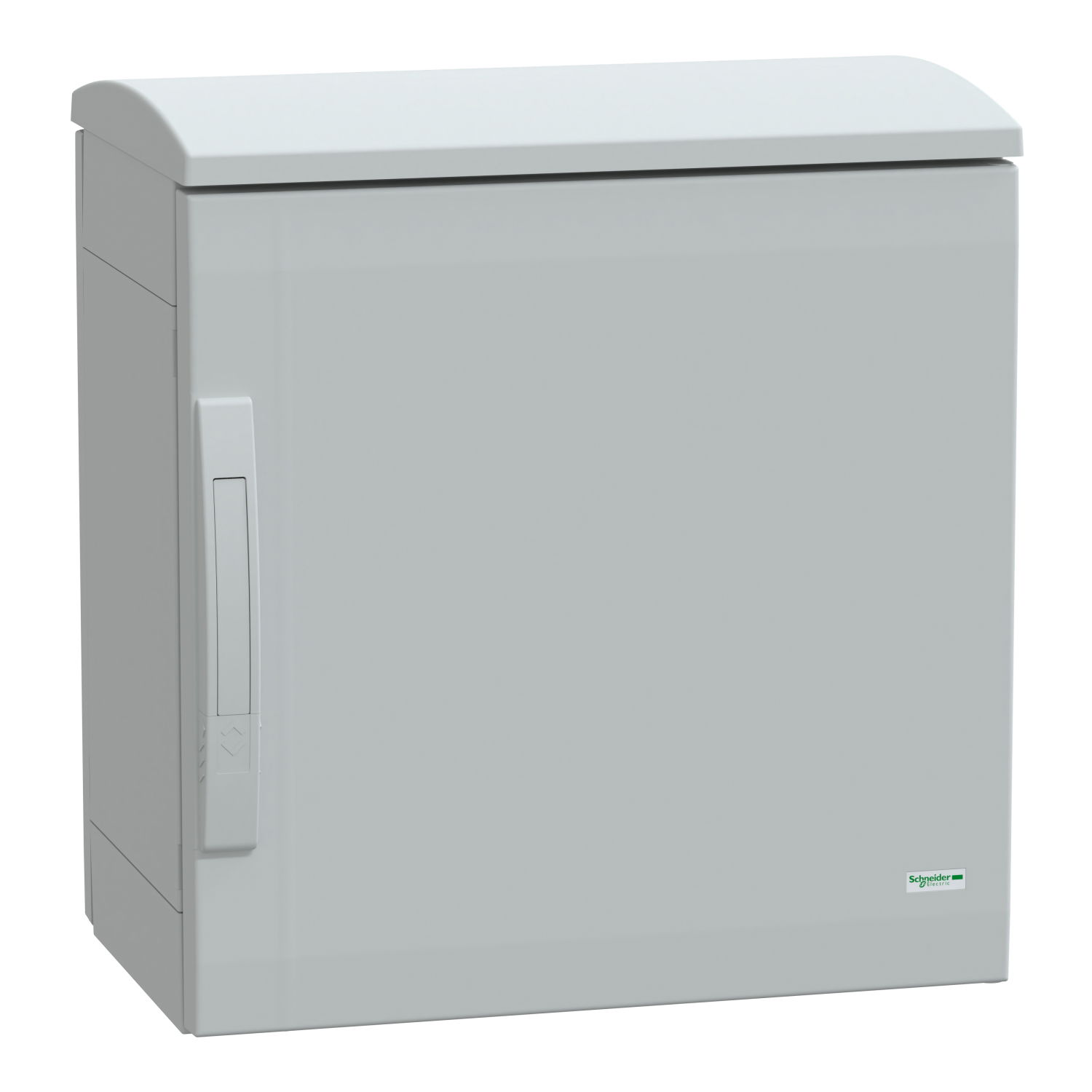

Floor standing encl. polyester vers.PLAT open top w/ canopy 500x500x320 IP44

Floor standing encl. polyester vers.PLAT open top w/ canopy 500x500x320 IP44

"This PLAT version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications" "The enclosure has nominal dimensions of 500mm in height, 500mm in width, and 320mm in depth" "It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings" "The enclosure is available in grey (RAL 7035) and comprises two side parts, one plain front door, one rear panel, and one canopy" "The door can be opened up to 120° from either the right or left side and features a two-point handle lock with a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes, and the canopy can also be removed by fixing elements" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP44 (IEC 60529), offering high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Product identifiers

SKU: NSYPLAT553G
EAN: 3606480775437
GTIN: 3606480775437
MPN: NSYPLAT553G

Voltimum+ Loyalty Programme Loyalty points: 62

Price: £ 374.00 Excl. VAT

Videos

Promotional video

Specifications

Depth 320 mm
Width 500 mm
Colour Grey
Height 500 mm
Material Plastic
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Polyester
Surface finishing Untreated
With mounting plate no
With ventilation door no
Floor standing wall model no
Suitable for wall built-in no
Degree of protection (NEMA) 3
Suitable for metrical mounting no
Max. permissible load of the door(s) according to IEC 62208 69 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
