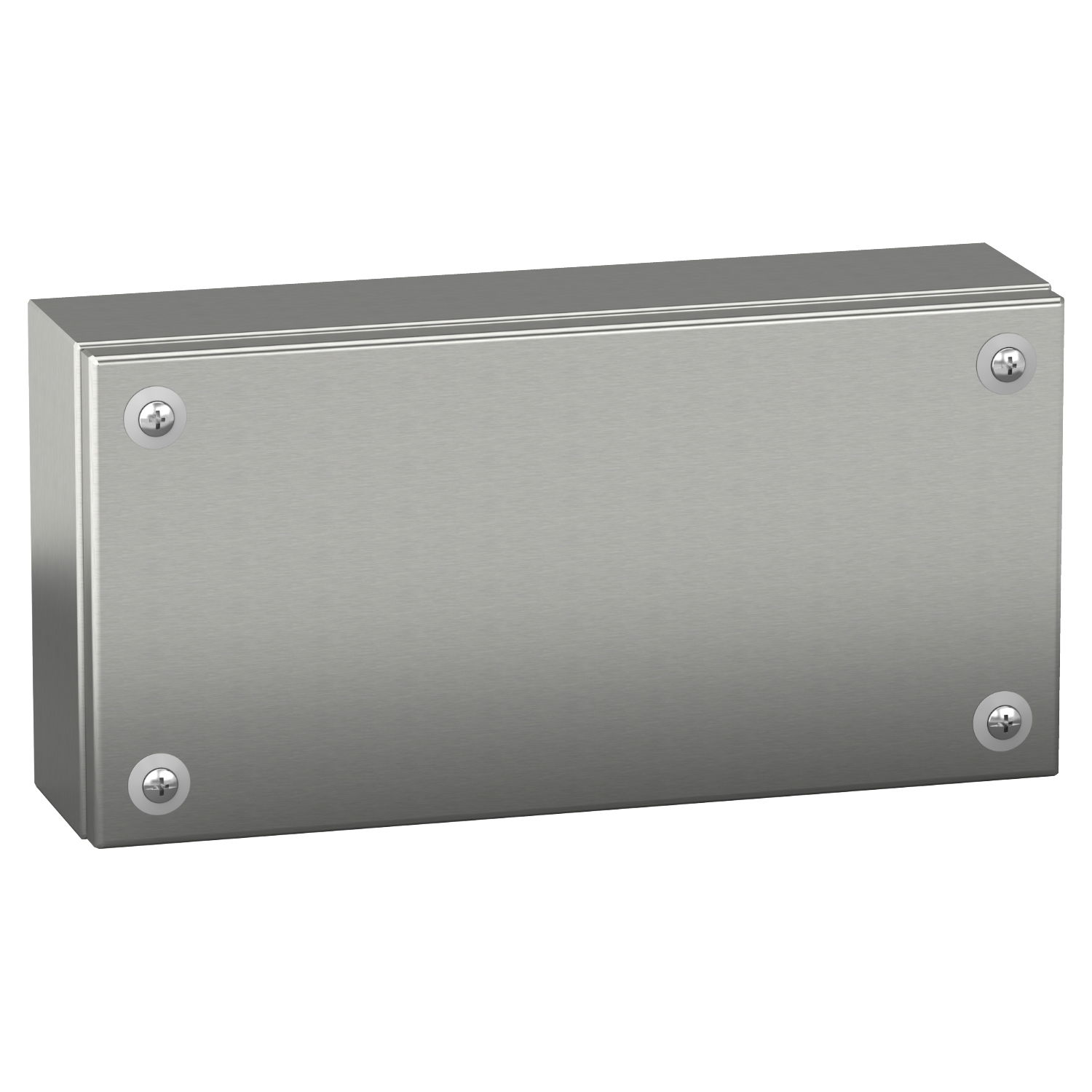

"Stainless steel wall mounted industrial box, PanelSeT SBX, 150x300x80 mm, IP66"

Link copied
SKU
EAN
GTIN
MPN

"Stainless steel wall mounted industrial box, PanelSeT SBX, 150x300x80 mm, IP66" by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £193.71 to £205.09 excl. VAT. Voltimum+ members earn 24 points per unit.

PanelSeT SBX stainless steel 304L industrial box is designed for a multi-purpose application It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This box has a nominal height, width and depth of 150mm, 300mm and 80mm respectively The box is made with a Scotch-Brite® brushed surface finish The box consists of 4 cover screw, a cover and a body It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The net weight of the enclosure is 1,9kg It is wall mounted and has a flat face box with a plain door The cover is fixed using a half turn metal screw It meets the standards of IEC 62208 and has an ambient air temperature for storage and operation of -35-60°C and -35-80°C respectively

Voltimum+ Loyalty Programme Loyalty points: 24

Price range: £ 193.71 - £ 205.09 Excl. VAT

Specifications

Depth 80 mm
Shape Square
Width 300 mm
Colour Grey
Length 300 mm
EFUK0020 no
EFUK0021 yes
Material Stainless steel
RAL-number 7035
Halogen free yes
Type of inlet -
For Ex-zone gas None
Mounting method Surface mounted
Cover attachment Screwed
Number of inlets 0
Extension possible no
Operating temperature
Explosion-tested version no
Degree of protection (NEMA) 4
Rated insulation voltage Ui -
Material plate thickness cabinet 1.2 mm
