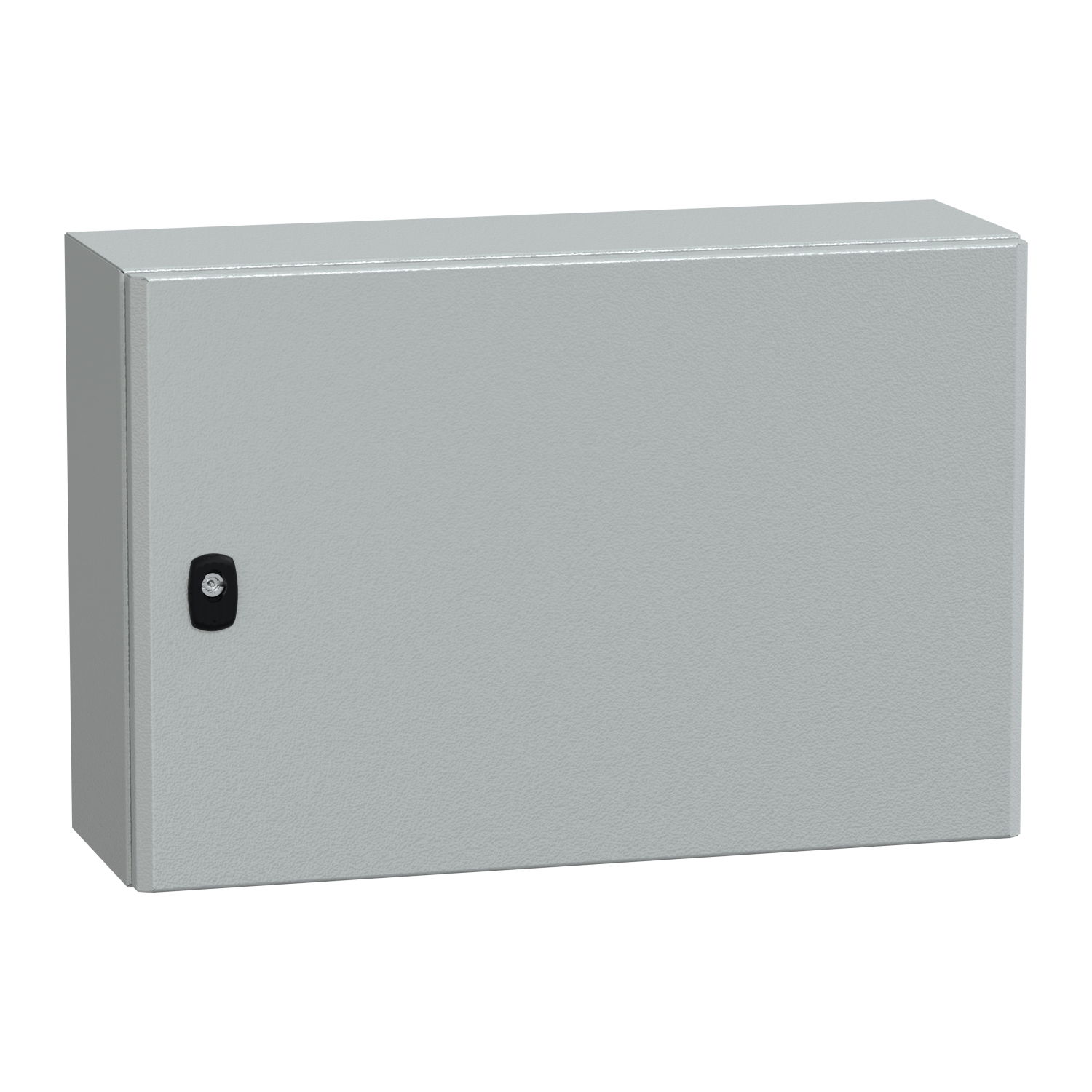

"Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 400x600x200mm, IP66, IK10"

Link copied
SKU
EAN
GTIN
MPN

"Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 400x600x200mm, IP66, IK10" by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, RS Components and 1 more. It is currently in stock at 3 of them. Trade prices range from £117.77 to £155.60 excl. VAT. Voltimum+ members earn 21 points per unit.

PanelSeT S3D wall mounted steel enclosure with plain door. 400 x 600 x 200 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.

Voltimum+ Loyalty Programme Loyalty points: 21

Price range: £ 117.77 - £ 155.60 Excl. VAT

Specifications

Depth 200 mm
Width 600 mm
Colour Grey
Height 400 mm
Material Steel
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Other
Surface finishing Powder coating
With mounting plate yes
With ventilation door no
Floor standing wall model no
Suitable for wall built-in no
Degree of protection (NEMA) 4X
Suitable for metrical mounting yes
Max. permissible load of the door(s) according to IEC 62208 50 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
