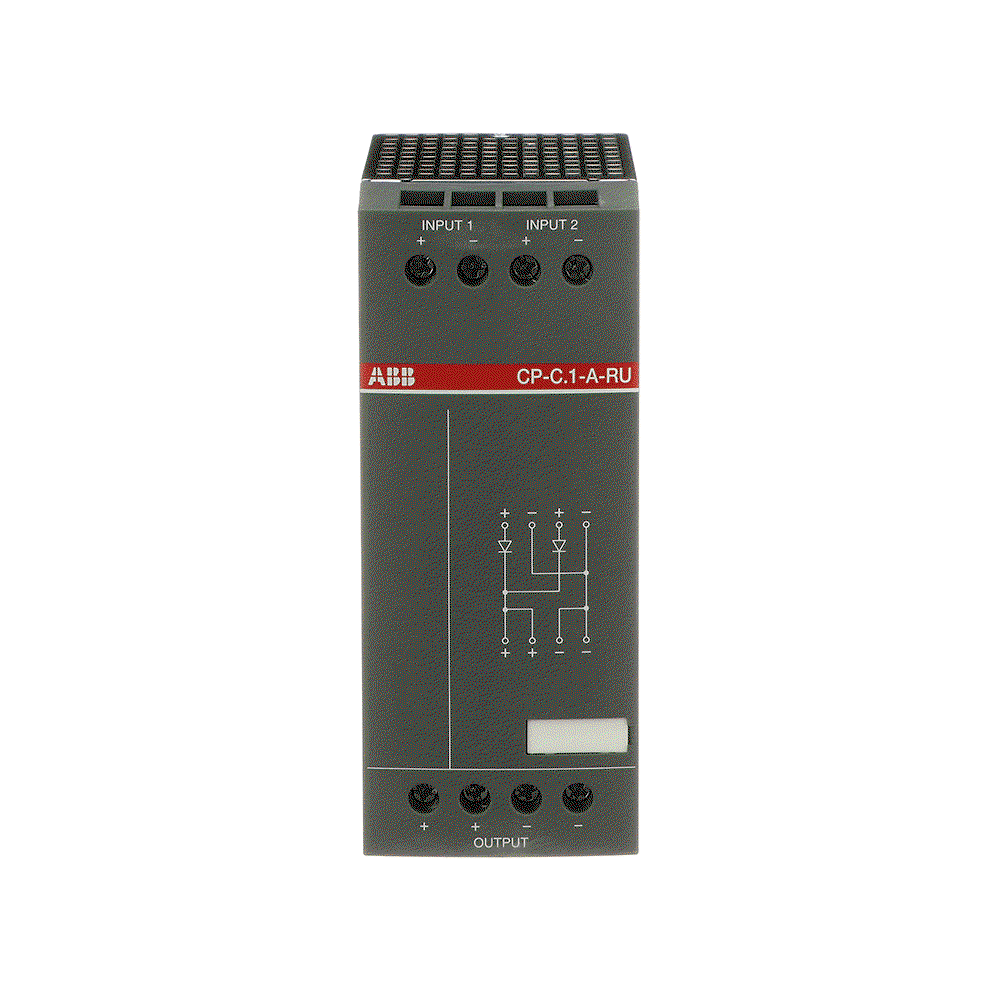

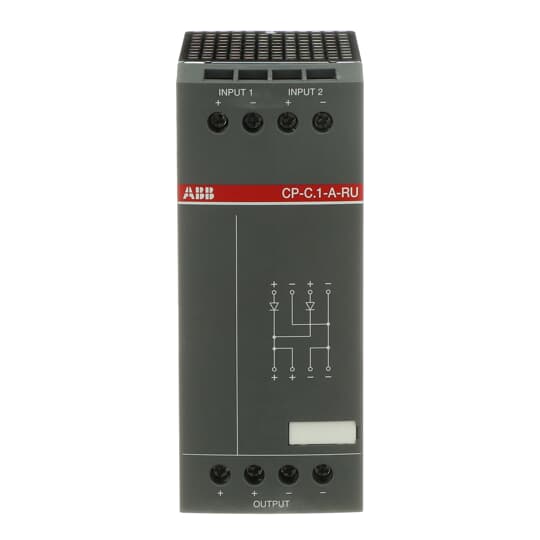

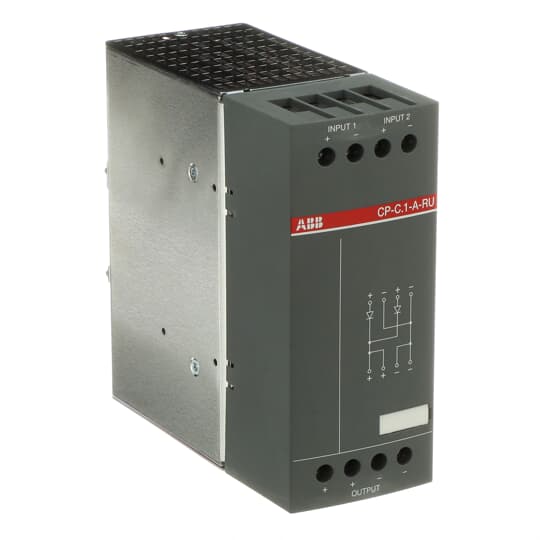

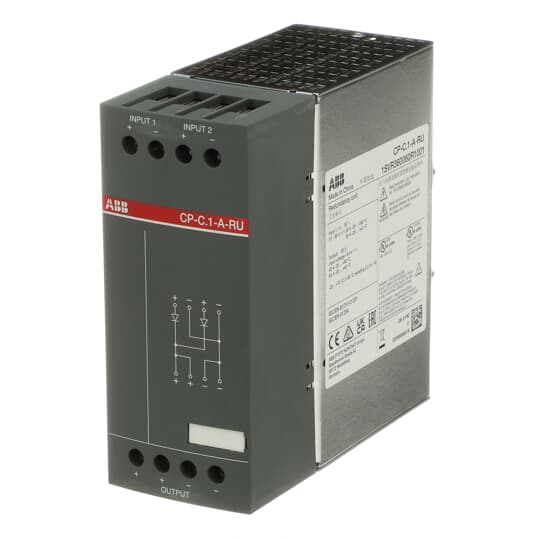

CP-C.1-A-RU Redundancy unit for power supplies In: 2x20A, Out: 1x40A

Link copied
SKU
EAN
GTIN
MPN

CP-C.1-A-RU Redundancy unit for power supplies In: 2x20A, Out: 1x40A by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at all of them. Trade prices range from £136.19 to £150.58 excl. VAT. Voltimum+ members earn 75 points per unit.

The CP-C.1-A-RU is a redundancy unit for CP-C.1 as well as CP-S.1 range power supplies. The input voltage range is 10 - 58 V DC. This unit, with 2 inputs / channels each up to 20 A and an output up to 40 A, provides true redundancy by 100 % decoupling of two parallel connected CP-C.1 range power supplies.

Voltimum+ Loyalty Programme Loyalty points: 75

Price range: £ 136.19 - £ 150.58 Excl. VAT

Specifications

Depth 136
Width 56.4
Height 129.4
Stabilized yes
Power output -
Built-in width 56.4
Built-in height 129.4
Modular version no
Short-circuit-proof yes
Max. output current 2 0
Wall mounting possible no
Direct mounting possible no
Output voltage stabilized yes
Suitable for rail mounting yes
Type of electric connection Screw connection
2nd secondary output voltage
Secondary voltage adjustable no
Rated supply voltage AC 60 Hz
Voltage type (supply voltage) AC/DC
Nominal value output current 2 0
Nominal value output voltage 1 -
Nominal value output voltage 3 0
Performance level according to EN ISO 13849-1 None

Documents

Deeplink product page

Open

Deeplink REACH

1SVD982001-4501_en_C_REACh Info for Power Supplies.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

1SVC360561M0000_J.pdf

Open

Product data sheet

Open

Declaration RoHS

1SVD982001-4401_ROHS_Power_Supplies_revB_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

1SVD982027-0003_20201126.pdf

Open
