ClimaSys PTC heating resistance 55W, 270-420V

ClimaSys PTC heating resistance 55W, 270-420V

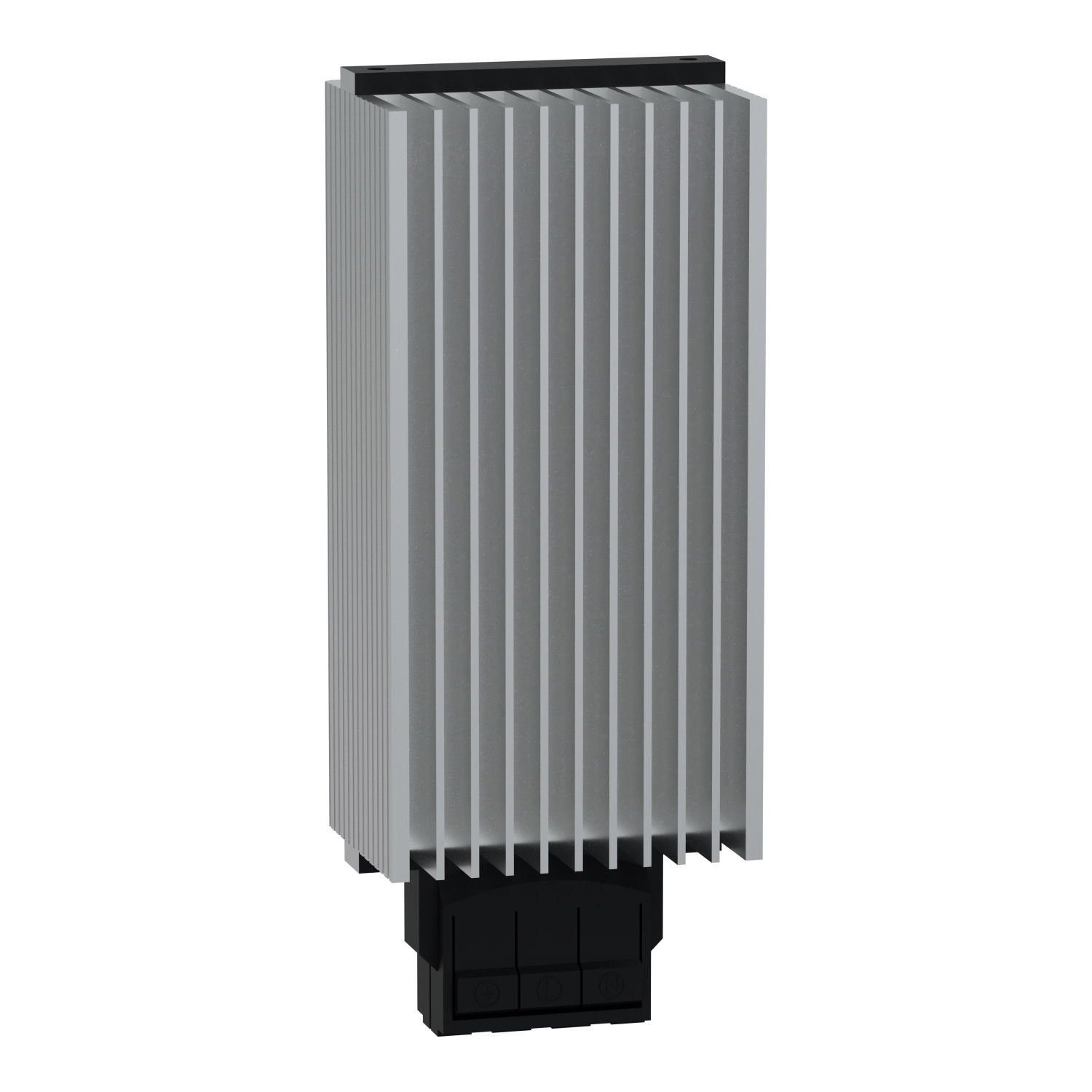

"Resistance heater 55W, 270,420 V AC 50/60 Hz for ClimaSys CR Thermal Management System" "The product has extruded aluminium body" "Fixing by clips in vertical operating position" The product width is 90mm, height is 210mm and depth is 70mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with VDE and UL certification "This product is qualified as a green premium, with minimal use of hazardous substances"

Product identifiers

SKU: NSYCR55WU3
EAN: 3606480152177
GTIN: 3606480152177
MPN: NSYCR55WU3

V+ Loyalty points:

32

Price: £ 82.72 Excl. VAT

Specifications

Depth 70 mm
Width 90 mm
Height 210 mm
With fan no
Rated power 55 W
Voltage type AC
Operating voltage DC
Degree of protection (IP) IP20
Operating voltage AC 60 Hz
With room temperature controller no
