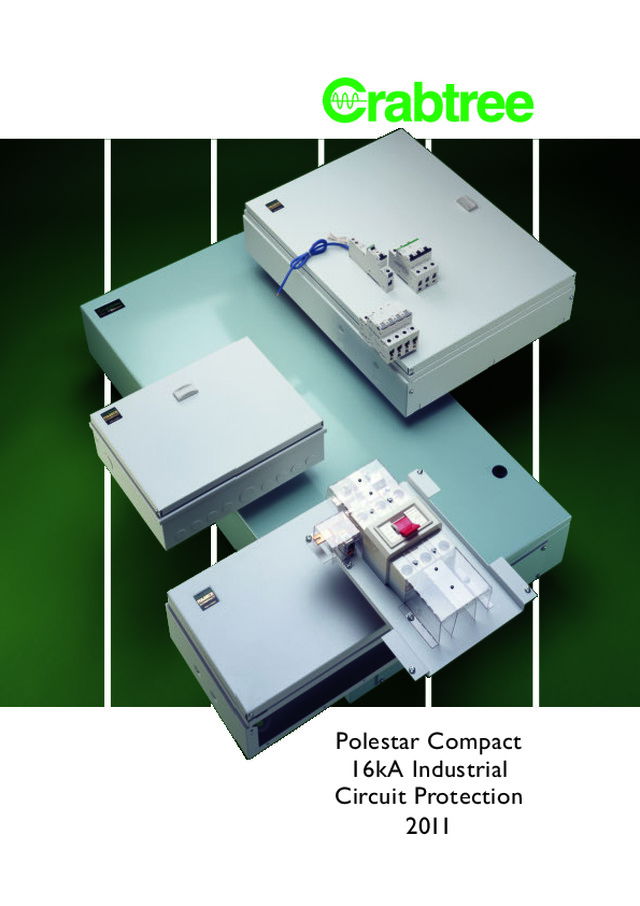

Polestar Compact 16kA Industrial Circuit Protection 2011 Polestar 2011 16pp_Inspire 2 31/05/2011 23:45 Page 1

Polestar 2011 16pp_Inspire 2 31/05/2011 23:45 Page 2

MCBS, RCBOs AND DISTRIBUTION BOARDS l MCBs - 6A to 63A l Type B, C and D l Single, Double and Triple Pole l 18mm modular width l 16kA BS EN 60898 l RCBOs - 6A to 50A l Type C l Single Pole l 18mm wide l 16kA BS EN 61009 System l TPN Boards rated 200A l SPN Boards rated 125A l Paint Finish, Epoxy Powder, Light Grey RAL 7035 for standard boards and shade 697 to BS381C for IP66 l Custom Built ‘Specials’ Service Polestar 2011 16pp_Inspire 2 31/05/2011 23:49 Page 3

18PSC12MR 18PSC14/21A 125A TYPE B DISTRIBUTION BOARDS‘METER READY’ SURFACE l No of Ways H W D List No. 4 489 430 155 18PSC04MR 6 570 430 155 18PSC06MR 8 650 430 155 18PSC08MR 12 815 430 155 18PSC12MR 16 895 430 155 18PSC16MR 20 998 430 155 18PSC20MR 24 1140 430 155 18PSC24MR ‘METER READY’ FLUSH l No of Ways H W D List No. 4 536 478 144/164 18PSC04MRF 6 618 478 144/164 18PSC06MRF 8 698 478 144/164 18PSC08MRF 12 863 478 144/164 18PSC12MRF 16 943 478 144/164 18PSC16MRF 20 1048 478 144/164 18PSC20MRF 24 1188 478 144/164 18PSC24MRF 125A TYPE A DISTRIBUTION BOARDS l MAIN SWITCH DISCONNECTOR No of Ways H W D List No. 5 255 188 122 18PSC05/21A 8 255 242 122 18PSC08/21A 11 255 242 122 18PSC11/21A 14 255 343 122 18PSC14/21A 19 255 438 122 18PSC19/21A 28 500 343 121 18PSC28/21A l 125A double pole main switch control for all MCB ways. l 125A Busbar. l 28 way distribution boards supplied in 2 bank format. 80A 30mA MAIN INCOMING RCCB RCCB No of Ways H W D type List No. 5 255 188 122 AC 18PSC05/33A 8 255 242 122 AC 18PSC08/33A 11 255 242 122 AC 18PSC11/33A 80A 100mA MAIN INCOMING RCCB RCCB No of Ways H W D type List No. 5 255 188 122 AC 18PSC05/31A 8 255 242 122 AC 18PSC08/31A 11 255 242 122 AC 18PSC11/31A ‘METER READY’ SURFACE IP66 l No of Ways H W D List No. 4 800 500 215 IP18PSC04MR 6 800 500 215 IP18PSC06MR 8 800 500 215 IP18PSC08MR 12 1000 500 215 IP18PSC12MR 16 1000 500 215 IP18PSC16MR DUAL RCCB SPLIT -LOAD l No. of 80A 30mA RCCB Ways RCCB ways H W D type List No10 4+6 255 343 122 AC 18PSC10/S413A10 5+5 255 343 122 AC 18PSC10/S513A10 6+4 255 343 122 AC 18PSC10/S613A l 125A double pole main switch control for all MCB ways l Final circuit additional protection by two 80A 30mA RCCBs Polestar 2011 16pp_Inspire 2 31/05/2011 23:50 Page 4

SWITCH DISCONNECTORS AND DIRECT CONNECTION Order Device and Kit (where required) separately. Switch Disconnector Device Kit 125A 2P 1252SD 18PSC2PLK125A 3P 1253SD Not Required125A 4P 1254SD 18PSC4PLK Direct Connection Device Kit 125A 3P 125DCB Not Required l 50mm 2 Terminal capacity l IEC/EN 60947-3 RESIDUAL CURRENT CIRCUIT BREAKERS l Device Kit 100A 4P 30mA 241/030 18PSC4PLK100A 4P 100mA 241/100 18PSC4PLK100A 4P 100mA TD 241/100TD 18PSC4PLK100A 4P 300mA 241/300 18PSC4PLK100A 4P 300mA TD 241/300TD 18PSC4PLK l Type AC l 35mm 2 Terminal capacity l BS EN 61008 18PSC12MRF 18PSC12MR IP18PSC12MR 18PS2PLK 18PSC4PLK 1252SD 1253SD 1254SD 241/100 125A TYPE B DISTRIBUTION BOARDS AND THEIR INCOMING OPTIONS POLESTAR COMPACT 125A INCOMER OPTIONS l Incoming options - order separately: 125A Switch Disconnector TP/4P - 50mm 2 100A RCCB 4P - 35mm 2 125A Direct Cable - 50mm 2 l Integral metering available with Meter Ready (MR) board utilising a TP Incoming option l Busbars rated at 125A l IP31 (Door Closed) or IP66 l Full compliment of Neutral & Earth terminals Incoming maximum 70mm 2 Outgoing maximum 25mm 2 l Allows the fixture of dual Earth bars (IP31) l Clean Earth kit available (IP31) l All IP31 boards are supplied as standard with hinged outer door, catch (lock is optional extra) and removable top / bottom gland plates l Neutral busbar supports incorporate an integral MCB end stop l BS EN 60439-3 71756 Polestar 2011 16pp (Q8)_Inspire 2 03/06/2011 09:55 Page 5

18PSC212MR 18PSC212MRF 200A TYPE B DISTRIBUTION BOARDS‘METER READY’ SURFACE l No of Ways H W D List No. 4 768 430 155 18PSC204MR 6 822 430 155 18PSC206MR 8 876 430 155 18PSC208MR 12 984 430 155 18PSC212MR 16 1092 430 155 18PSC216MR 20 1200 430 155 18PSC220MR 24 1308 430 155 18PSC224MR ‘METER READY’ FLUSH l No of Ways H W D List No. 4 816 480 159 /169 18PSC204MRF 6 870 480 159 /169 18PSC206MRF 8 924 480 159 /169 18PSC208MRF 12 1032 480 159 /169 18PSC212MRF 16 1140 480 159 /169 18PSC216MRF 20 1248 480 159 /169 18PSC220MRF 24 1356 480 159 /169 18PSC224MRF ‘METER READY’ SURFACE IP66 l No of Ways H W D List No. 4 800 500 215 IP18PSC204MR 6 800 500 215 IP18PSC206MR 8 800 500 215 IP18PSC208MR 12 1000 500 215 IP18PSC212MR 16 1000 500 215 IP18PSC216MR IP18PSC212MR 71756 Polestar 2011 16pp (Q8)_Inspire 2 03/06/2011 09:55 Page 6

SWITCH DISCONNECTORS AND DIRECT CONNECTION Switch Disconnector l List No 200A 3P 200/SDB 200A 2P 200/SDBDP Direct Connection l 200A 3P 200/DCB l 120mm 2 Terminal capacity l All Incomers are supplied complete with mounting kit, links & fixing screws MOULDED CASE CIRCUIT BREAKERS l 160A 3P 1603MB 160A 4P 1604MB 200A 3P 2003MB 200A 4P 2004MB l 185mm 2 terminal capacity l All Incomers are supplied complete with mounting kit, links & fixing screws l IEC 60947- 2, EN 60947- 2 18PSC212MRF 18PSC212MR IP18PSC212MR 200/SDBDP 200/SDB 2003MB 200A TYPE B DISTRIBUTION BOARDS AND THEIR INCOMING OPTIONS POLESTAR COMPACT 200A INCOMER OPTIONS l Incoming options - order separately: l Integral metering available l Busbars rated at 200A l IP31 (Door Closed) or IP66 l Full compliment of Neutral & Earth terminals Incoming maximum 70mm 2 Outgoing maximum 25mm 2 l Allows the fixture of dual Earth bars (IP31) l Clean Earth kit available (IP31) l All IP31 boards are supplied as standard with hinged outer door, catch (lock is optional extra) and removable top / bottom gland plates l Neutral busbar supports incorporate an integral MCB end stop l BS EN 60439-3 71756 Polestar 2011 16pp (Q8)_Inspire 2 03/06/2011 09:55 Page 7

CSBC 18PSCMBP1 18PSCBB1 Blanking Strip 16CL MCBLD + 748 17CC (fitted to Earth Bar) CLEB12 CLNB12 GENERAL POLESTAR ACCESSORIES TP & SP l List No Cylinder Lock & Key 16CLMCB Locking device (excl. lock) MCBLDPadlock & Key for use with MCBLD 748Clean Earth Bar Kit type B Boards only. 18CEBK(4 to 12 way=1 kit, 16 to 24 way = 2 kits).SP MCB size Blank (shields MCB & Busbar Terminal) 18PSCMBP1Blanking Strip - 6 Individual 1 module wide pieces 18PSCBP1/6Blanking Strip - 4 lengths each 3 modules wide 18PSCBP3/4Blanking Strip - 2 lengths each 12 modules wide 18PSCBP12/2Clip In Blank SP Moulding CSBCBusbar cross connector insulator - pack of 9 18PSCBB1Cable clamp assembly (70mm 2 ) - pack of 3 17CC ADDITIONAL EARTH BAR KITS l Additional Earth Bars to fit TP Distribution BoardsNo of Ways List No No of Ways List No4 18EB04 16 18EB166 18EB06 20 18EB208 18EB08 24 18EB2412 18EB12 Earth and Neutral bar, 10mm 2 cable max, for use with DIN Rail NEUTRAL EARTH 7 Terminals CLNB07 CLEB0712 Terminals CLNB12 CLEB1215 Terminals CLNB15 CLEB15 18PSCDIN18 18PSCAS2 DINRAIL, ROWBOARD, SERVICE CENTRES l Service Centre / DIN Rail Board: List No 18 Module 18PSCDIN1836 Module (2 Rows of 18 ) 18PSCDIN36 l ‘Add - On’ for fixture above or below surface type B board. l Equipped with easily removed DIN Rail to accommodate 18 or 36 18mm module wide DIN Rail mounted devices l 245 & 410mm high Cable Spreader Box Add on Enclosure, 245mm high, Blank front cover plate 18PSCSB Rowboard: No of Rows H W D 1 245 430 155 18PSCAS1 2 410 430 155 18PSCAS2 3 570 430 155 18PSCAS3 4 735 430 155 18PSCAS4 5 815 430 155 18PSCAS5 l Suitable for ’Stand-Alone‘ use or ’Add-On‘ above surface type B board. l Each row will accommodate 18 off 18mm module wide DIN Rail mounted devices. l Main Neutral and Earth Bars included, along with provision for additional ’Mini‘ Neutral and Earth bars. 71756 Polestar 2011 16pp (Q8)_Inspire 2 03/06/2011 09:55 Page 8

RESIDUAL CURRENT CIRCUIT BREAKERSWITH OVERCURRENT PROTECTION (RCBO) l Single Pole Type A MCB Type C Current rating (A) List No6 701C/06310 701C/10316 701C/16320 701C/20332 701C/32340 701C/40350 701C/503 l Standard compliance BS EN 61009; IEC 1009. l Short circuit duty rating 16000A 240V 50Hz. l Terminal capacity up to 16mm 2 cable. l 18mm modular width MCBs 73C/10 73C/32 72B/20 72C/10 RCBOs MINIATURE CIRCUIT BREAKERS l Current Single PoleRating (A) Type B Type C Type D List No List No List No 6 70B/06 70C/06 70D/0610 70B/10 70C/10 70D/1016 70B/16 70C/16 70D/1620 70B/20 70C/20 70D/2032 70B/32 70C/32 70D/3240 70B/40 70C/40 70D/4050 70B/50 70C/50 70D/5063 70B/63 70C/63 70D/63 l BS EN 60898 l Type B (3–5In), C (5–10In), D (10–20In) classification l Short circuit duty rating: Type B/C/D 16000A 240V/415V 50Hz l Terminal capacity up to 35mm 2 cable l 18mm modular width Current Double PoleRating (A) Type B Type C Type D List No List No List No 6 72B/06 72C/06 72D/0610 72B/10 72C/10 72D/1016 72B/16 72C/16 72D/1620 72B/20 72C/20 72D/2032 72B/32 72C/32 72D/3240 72B/40 72C/40 72D/4050 72B/50 72C/50 72D/5063 72B/63 72C/63 72D/63 l BS EN 60898 l Type B (3–5In), C (5–10In), D (10–20In) classification l Short circuit duty rating: Type B/C/D 16000A 240V/415V 50Hz l Terminal capacity up to 35mm 2 cable l 18mm modular width l Not for use within standard type A or B distribution boards Current Triple PoleRating (A) Type B Type C Type D List No List No List No 6 73B/06 73C/06 73D/0610 73B/10 73C/10 73D/1016 73B/16 73C/16 73D/1620 73B/20 73C/20 73D/2032 73B/32 73C/32 73D/3240 73B/40 73C/40 73D/4050 73B/50 73C/50 73D/5063 73B/63 73C/63 73D/63 l BS EN 60898 l Type B (3–5In), C (5–10In), D (10–20In) classification l Short circuit duty rating: Type B/C/D 16000A 240V/415V 50Hz l Terminal capacity up to 35mm 2 cable l 18mm modular width 71756 Polestar 2011 16pp (Q8)_Inspire 2 03/06/2011 09:55 Page 9

71756 Polestar 2011 16pp (Q8)_Inspire 2 03/06/2011 09:56 Page 10

Part L2 of the Building Regulations, covering the energy efficiency requirements of new buildings other than domestic dwellings, recognises the essential role that is played by metering. Correctly installed meters provide information that is necessary to the implementation of an effective energy management plan. Polestar Compact metering options provide simple and straightforward solutions, Integral energy monitoring can be applied to all Meter Ready (MR) Distribution Boards, whilst two ‘add-on‘ enclosures, single or dual, ensure all Polestar surface 125A & 200A type B Distribution Boards are catered for. S2 S1 S2 S1 S2 S1 S2 S1 S2 S1 S2 L2 L1 L3 S1 2A 2A 2A N N L2 L3 L1 N METERING OPTIONS...METERING SOLUTIONS 71756 Polestar 2011 16pp (Q8)_Inspire 2 03/06/2011 09:56 Page 11

INTEGRAL METER KIT I Integral meter kits suitable for mounting within 125A or 200A type BMeter Ready (MR) Distribution Boards. Includes a Digital energy meter, three current transformers, fuses, wiring looms and mounting base plate. Description 125A 200A Integral Meter Kit 125MP/50 200MP/120Integral Meter Kit (MID) 125MP/50/MID 200MP/120 /MID Description 200A Integral Meter Kit 185mm 2 cable 200MP/185 Integral Meter Kit 185mm 2 cable (MID) 200MP/185/MID • 125A Integral meter kits are designed for use in conjunction with modular three pole incoming options only. For other incoming options select the ‘add - on‘ assembly seen below. • 200A Meter kits accepting up to 185mm 2 cable will require the addition of a cable spreader box, 18PSCSB. 125MP/50 SINGLE METER PACKS I 245mm high ‘add on’ assemblies suitable for mounting directly beneathany surface 125A type B Distribution Board. Includes a digital energymeter, three current transformers and all associated fuses and wiring.Enclosures have a slotted front plate and hinged door with catch offeringa lockable option. Description 125A Add - on Meter Pack 18MPSC125 SUB METERING Sub metering provides an awareness of energy use. Trends of minimum andmaximum demand become visible enabling any instances of energy waste tobe identified. Metering alone cannot reduce energy consumption or subsequent carbonemissions - action taken based upon knowledge gained from aneffective metering strategy can . Schedule 7 of the Electricity Act 1989 requires that all meters must be approvedfor use in a billing situation. MID (Measuring Instruments Directive) approvedmeters have, since 2006, been approved for billing purposes across the EU. POLESTAR COMPACT SUBMETERING OPTIONS 18MPSC125 200MP/120 71756 Polestar 2011 16pp (Q8)_Inspire 2 03/06/2011 09:56 Page 12

1 2 L1 L1 N 3 4 5 36 44 64 6 45 90 44 64 6 1 2 L1 N L1 L2 L2 L3 L3 3 4 5 6 72 45 90 ENERGY METER DIMENSIONS C7KT1531 & C7KT1533 C7KT1543 & C7KT1545 POLESTAR COMPACT FINAL CIRCUIT METERING OPTIONS C7KT1531 80A SP & TP DIRECT CONNECTION ENERGY METERS Description LIST No Single Phase Direct connection Energy Meter C7KT1531Single Phase Direct connection Energy Meter (MID) C7KT1533Three Phase Direct connection Energy Meter C7KT1543Three Phase Direct connection Energy Meter (MID) C7KT1545 • Direct Connect kWh meter• Pulsed Output• DIN rail Mounting• 35mm 2 terminal capacity • Green Backlit display CARLO GA VAZZI kWh M21 1 8MPSC125LP DUAL METER PACKS I 410mm high ‘add on’ assemblies suitable for mounting directly beneathtwo surface 125A / 200A type B Distribution Boards. Includes two digitalenergy meters, six current transformers, all associated fuses & wiring andflexible interconnections to Distribution Boards. Provides single point isolation while dual meters allow for separate monitoring of Light andsmall Power energy consumption. Description 125A 200A ‘Add-on‘ Dual Meter Pack 18MPSC125LP 18MPSC250LP kWh Kilowatt hourskW ( ⌺) Real Power (system) kvarh Kilovolt amp reactive hourskvar ( ⌺) Reactive Power (system) PF ( ⌺) Power Factor (system) Hz ( ⌺) Frequency (system) PF L1 Power FactorPF L2 Power FactorPF L3 Power FactorA L1 Current A L2 Current A L3 Current V L1 - 2 Line VoltageV L2 - 3 Line VoltageV L3 - 1 Line VoltageV L1 Phase Voltage V L2 Phase Voltage V L3 Phase Voltage Energy meters within all Loadstar final assemblies display values of : All include pulsed output as a standard feature. RS485 port for MODBUS / JBUS (RTU) connections along with complete final assemblies are available on request from our technical support team. 71756 Polestar 2011 16pp (Q8)_Inspire 2 06/06/2011 13:47 Page 13

Complete powerand controlacross the Range Crabtree’s diverse productrange is renowned for it’s outstanding quality and excellent value for money. FACTORY BUILT ASSEMBLIES Made to exacting standards, Crabtree design,engineer and build distribution equipment,from custom MCB boards to modularswitchboards. BUSBAR SYSTEMS BD busbar, providing safe power forindustrial applications and to feedthe illustrated CD-K lightingbusbar. FUSESTAR A range of switch disconnectorsand fuse switches for mostapplications. 71756 Polestar 2011 16pp (Q8)_Inspire 2 01/06/2011 14:43 Page 14

CAPITAL A fully design co-ordinated range, offering consistentstyling and inherent safety features across a broadrange of applications. ROCKERGRID The design versatility of a modular switch whilst incorporating Capital styling and safety features. PART M A range of wiring accessories which allow the installerto meet the requirements of Part M of the electricalwiring regulations. METAL CLAD In tough conditions this sturdily built range, is idealfor use in industry, commerce and the home. WEATHERSEAL Water and dust protected to IP56, Weatherseal isideal for all environments, retaining their IP ratingwhen in use with standard moulded on 13A plug. WARWICK PVC modular trunking range which can bemounted at either Dado or Skirting level, availablein two different sizes and 5 different profiles. BRITMAC Power Track Underfloor System consists of a seriesof fully enclosed single phase busbar module units. The comprehensive fast-fit floor box provides a widechoice, Units can be supplied fitted with accessoriespre-wired to customer’s requirements. 71756 Polestar 2011 16pp (Q8)_Inspire 2 03/06/2011 09:53 Page 15

ELECTRIUM SALES LIMITED A SIEMENS COMPANY Commercial Centre, Lakeside Plaza, Walkmill Lane, Bridgtown, Cannock WS11 0XE. eMail: [email protected] Web: www.electrium.co.uk UK SALES Telephone: 01543 455010 Facsimile: 01543 455011 eMail: [email protected] TECHNICAL Telephone: 01543 438310 Facsimile: 01543 438311 eMail: [email protected] EXPORT SALES Telephone: +44 1543 455049 Facsimile: +44 1543 455048 eMail: [email protected] DUBAI OFFICE Telephone: +971 4 3660687 Facsimile: +971 4 3660676 eMail: [email protected] Although every effort has been made to ensure accuracy in the compilation of the technical detail within this publication, speciﬁcations and performance data are constantly changing. Latest details can be obtained from Crabtree. Publication No. B2055 5/11 Printed in England. Polestar 2011 16pp_Inspire 2 31/05/2011 23:48 Page 16
