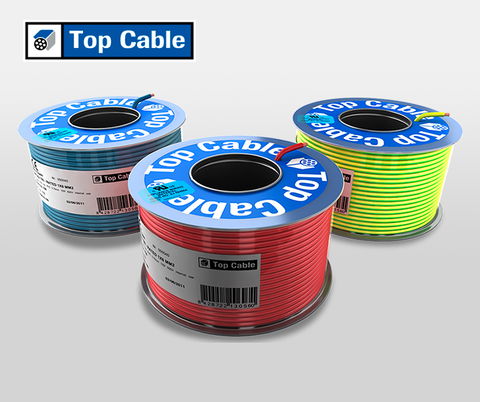

Among the variety of cables available from Top Cable, the TOPFLEX MS TRI-RATED / H07V2-K stands out as a cable specifically designed for internal wiring of electrical cabinets, switch boxes and small electrical appliances.
This single core cable, with current carrying capacities cable is UL-certified. It is a low voltage cable, with different voltage depending on the standard taken as a reference:
-
According to EN (H05V2-K) 300/500 V
-
According to EN (H07V2-K) 450/750 V
-
According to BS (CK) 600/1000 V
-
According to UL (AWM) 600 V
-
According to CSA (TEW) 600 V
The conductor, made of annealed electrolytic copper, and its PVC insulation give it a great flexibility that allows it to be used in tubes or flexible conduits for motors, transformers or any other machinery. The maximum conductor temperature is 90ºC according to EN and BS, and 105ºC according to UL and CSA.
Cable with Eca certified CPR guarantee.
The most common cross-sections available from stock at Top Cable for supply to the UK are 0.50mm2 and 240mm2. The cable is available in blue, brown, black, red, yellow/green, yellow, grey, dark blue, white, orange, purple and pink.
It is a flame non-propagation cable according to EN 60332-1 / IEC 60332-1. It is CPR Eca certified according to EN 50575.
The cables, in any of their varieties, are marked metre by metre (from 10mm2) and are distributed in reels of 100 metres and bulk drums.
Download cable datasheet and contact with our commercial team for any questions here.
