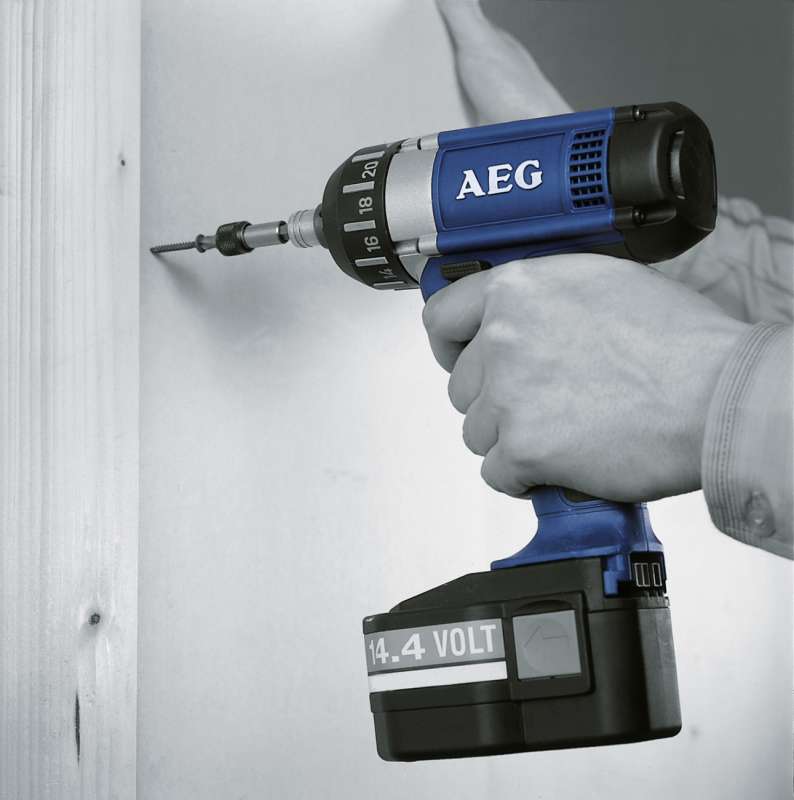

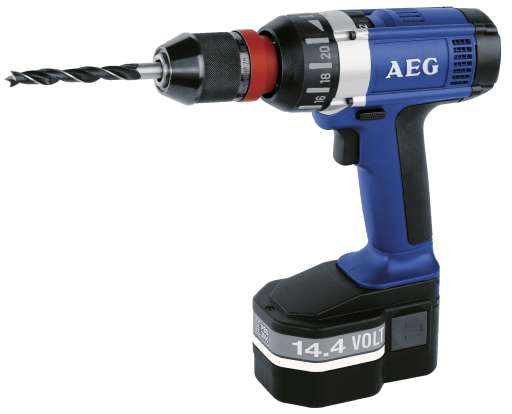

AEG introduces its new generation of most compact battery tools -the new BBS »RAPTOR®« featuring innovative FIXTEC solutions and the latest generation of powerful AEG own developed motors.
Features
- Compact, light and well balanced
- 20-stage torque adjustment plus additional drilling stage giving greater flexibility and precision whatever the material and screw size
- Electronic switch with variable speed for improved accuracy and less damage to screw-heads.
- Two-speed planetary synchromesh gear for max. torque
- 1/4" hex direct-bit reception with quick release: easy handling, safe locking and improved visibility

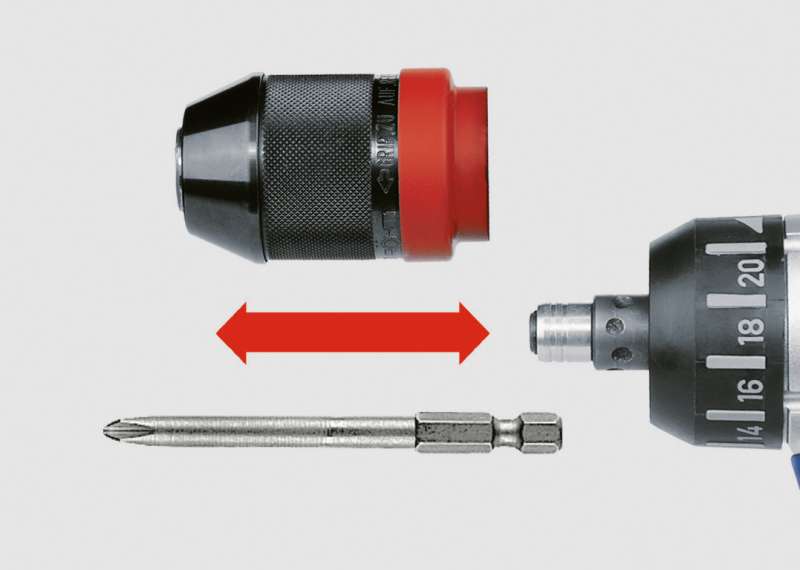

- FIXTEC and keyless chuck for comfortable, one-handed bit changing
- All-Metal keyless chuck with patented quick adapt feature
- Ergonomic Softgrip T-handle design for more comfortable use
- PBS 3000: the professional battery system
- High-performance 14.4 V battery
- 2way-flex battery pack insertion: improved balance and flexibility
|
Technical Data | ||
|
|
|
|
|
Battery-pack voltage |
V |
14.4 |
|
No-load speed 1st / 2nd gear |
rpm |
0-400 / 0-1400 |
|
Torque: soft joint / hard joint |
Nm |
24 / 44 |
|
Static stalling torque |
Nm 1.G / 2.G |
40 / 19 |
|
Keyless chuck |
mm |
1.5 - 13 |
|
Drilling dia. in steel / wood |
mm |
13 / 34 |
|
Wood screws |
mm |
10 |
|
In-service weight with battery and keyless chuck |
kg |
2.4 |
|
In-service weight with battery and without chuck |
kg |
2.1 |
