AEG's Revolutionary Ergomax - Drilling just became a pleasure

Published: 8 August 2005 Category: News

AEG's Ergomax is a revolution in percussion drilling. The powerful 750w motor gives outstanding performance in all drilling applications. The unique removeable handle allows the drill to be used in awkward places such as between joists. AEG's patented Fixtec Chuck system allows the user to change accessories without the use of any additional keys. The chuck can easily be removed and the direct bit reception will allow screwdriving applications as well, without the need for additional bit holders. The machine will drill upto 20mm in concrete / masonry, 13mm in steel and 40mm in wood. This powerful fast percussion drill is an electricians favourite where speed and efficiency are required. Once used you will wonder why you never owned one before.

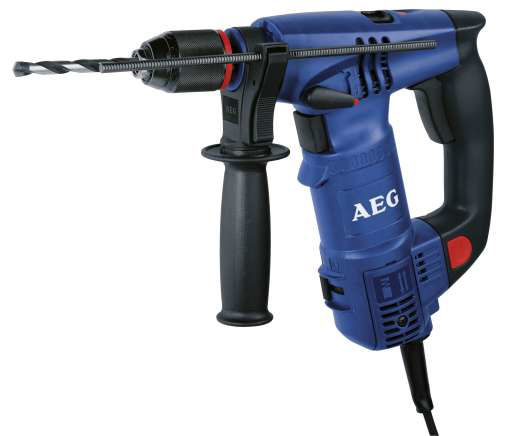

AEG's Revolutionary Ergomax - Drilling just became a pleasure
ERGOMAX

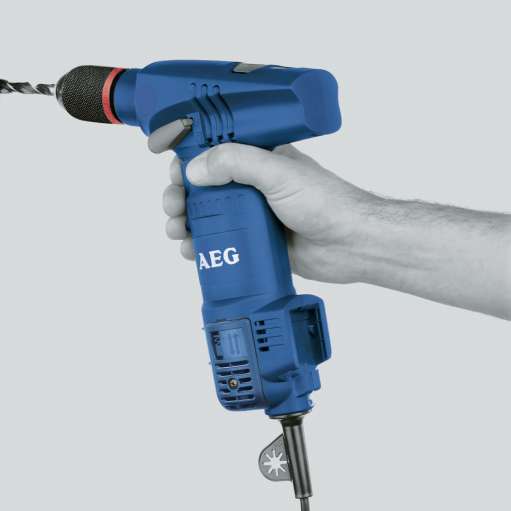

Removeable main handle

IMB - Integrated-Metal-Block technology for highest durability and stability

Powerful 750-watt motor

Synchromesh two-speed gear

One-sleeve keyless chuck (1.5 - 13 mm)

Electronic switch with variable speed for improved drilling accuracy

Reversible action

Hammer-stop function for drilling in wood, ceramics or metal

Direct bit reception for reduced weight, reduced length and improved visibility when screwdriving

Service hatch for easy changing of carbon brushes

FIXTEC: quick tool-changing system
Technical Data

Power input W 750


Drill dia. in concrete / stone mm 20/22


Drill dia. in steel / wood mm 13/40


Drilling speed (full-load) rpm 0 - 750 / 0 - 2.200


No-load speed 1st / 2nd gear rpm 0 - 1.200 / 0 - 3.400


Tool reception mm 1,5 - 13


Static stalling torque Nm 1./2. gear 58/30


Weight kg 2,65
