| Model |
- |
| Width |
50.5 |
| Height |
39.4 |
| Length |
56.6 |
| Fire load |
0.16639 |
| Halogen free |
yes |

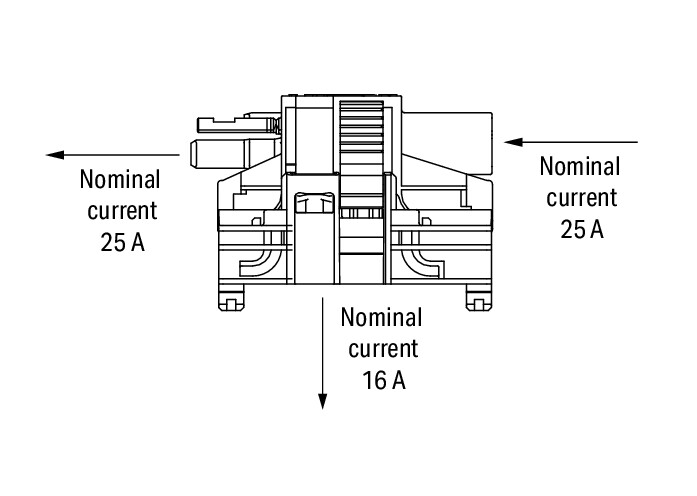

| Rated current |
25 |
| Rated voltage |
250 |
| Housing colour |
White |
| Connection type |
- |
| Number of poles |
3 |
| Type of locking |
Integrated in plug-in connector |
| Built-in version |
Built-in part/plug-in connection |
| Contact material |
CuSn |
| Housing material |
Polyamide (PA) |
| Insert direction |
Straight |
| Pollution degree |
3 |
| Mechanical coding |
yes |
| Pole codification |
L, N, PE |
| Rated surge voltage |
4 |
| Angle of inclination |
|
| Length soldering pin |
- |
| Continuity resistance |
1 |
| Connection size thread |
No thread connection |
| Wall thickness housing |
- |
| Degree of protection (IP) |
IP12 |
| Surface treatment contacts |
Tinned |
| Colour coding/contact insert |
White |
| Number of connections per pole |
2 |
| RAL-number coding/contact insert |
- |
| Colour of the separate adapter piece |
- |
| Connection cross section (solid-core) |
|
| Connection cross section (fine-strand) |
|
| Max. continuous temperature resistance contact part |
85 |
| Max. continuous temperature resistance strain relief |
105 |
