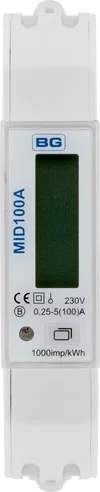

MID100A-01

This MID approved meter measures both imported & exported energy and is ideal for renewable PV applications, EV charger installations, or power monitoring dedicated circuits. In addition to metering power, the display will show real time active energy (kWh), it will also measures and displays electrical parameters including reactive energy, (kVArh), voltage, (V), current, (A), active power, (W), reactive power, (Var), power factor, (pf) and frequency, (Hz). These can be viewed using the one button touch screen, or through the Modbus RS485 connection. It features a separate resettable register for kWh, making it ideal when using for billing applications. Accepting up to 25mm² live conductors, the addition of a single neutral connection is required for meter operation. Compact single m

100Amp, DIN Rail Mounting

18mm Single Module Installation

MID Approved

Import & Export Monitoring

Inline Connection

RS485 Modbus Connection

Backlite Display Screen

Fixed or Product Scrolling Display.

Single Touch Button Operation For Setup & Menu Navigation
