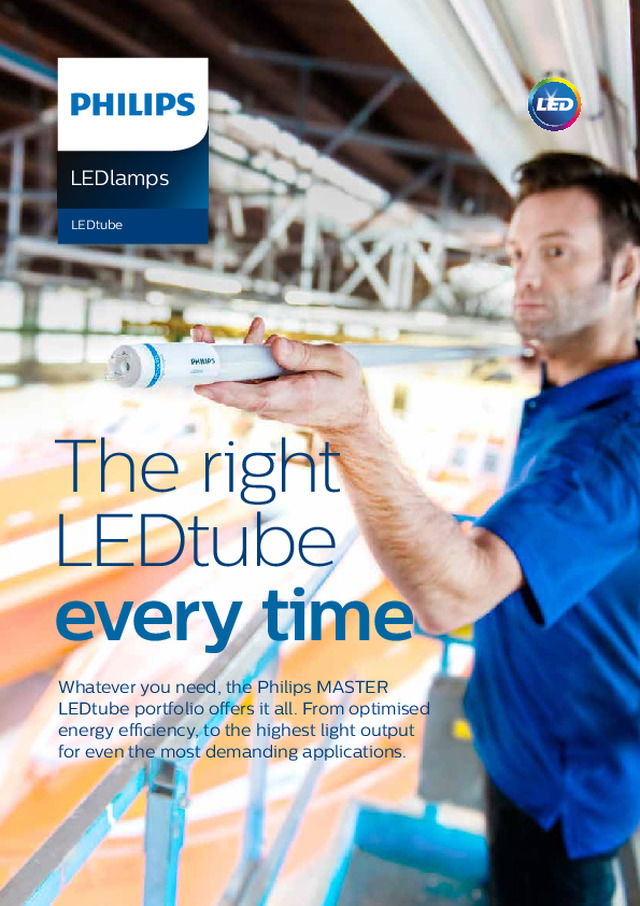

The right LEDtube every time - PHILIPS - Product Catalogue - 2016

Whatever you need, the Philips MASTER LEDtube portfolio offers it all. From optimised energy efficiency, to the highest light output for even the most demanding applications.

The right LEDtube every time Whatever you need, the Philips MASTER LEDtube portfolio offers it all. From optimised energy efficiency, to the highest light output for even the most demanding applications. LEDtube LEDlamps

Whatever you need, the Philips MASTER LEDtube portfolio has it all. We’ve repositioned the way that our lamps are labelled into three new categories of light output – Standard, High and Ultra output. A simple change that will make it even easier to choose the right lamp, for the right application. From optimised energy efficiency to the highest light output. A simple switch that comes in a choice of three lengths and colour temperatures, with the option of rotating end-caps. So with our lamps, you have the right LEDtube every time. The right LEDtube every time The right tube, right now Our portfolio of LEDtubes is now available with a range of options in Standard, High and Ultra Output. Save on energy costs LEDtubes are up to 65% more efficient than TL-D lamps, so you can save on energy costs without compromising on light quality. Long-lasting and reliable With a lifetime of 50,000 hours they outshine TL-D lamps by 25,000 hours for lower maintenance and operation costs. High quality of light Our LEDtubes won’t flicker or cause glare. The 100% instant light has a high colour consistency and uniform visual appearance in a choice of colour temperatures. NEW Ultra output, ultra efficient Choose Ultra Output for ultra efficiency of 148 lm/W and exceptional light quality. Philips has a long history of ground-breaking innovation in lighting technologies. Our Ultra Output LEDtubes are specially designed for demanding applications that require a high light output to comply with ergonomic norms. In fact they raise the bar in lighting efficiency and comfort by meeting all office, supermarket and healthcare standards. A green choice LEDtubes are a mercury-free alternative to traditional fluorescent tubes, a responsible choice that can also contribute towards your green credentials. 100% safe installation LEDtubes are the fastest and easiest way to upgrade existing luminaires to LED technology. Installation is 100% safe and 0% hassle with a simple lamp-for-lamp replacement. The new LEDtubes provide a power saving of 53% per fitting.” Ulrik Leth, Electricity Installer Dansk Supermarked A/S Ultra Output HF available NOW

Does your luminaire have a starter? This illustration shows its typical location in an open or closed luminaire with the length of 1200 and 1500 mm tubes. 1 Yes. The luminaire works on Electro Magnetic ballast. Simply replace the old starter with the new (E.Mag) LED starter included in the packaging. Choose the LEDtube with one ring on the cap. 2 No. The luminaire works on High Frequence electronic ballast (HF). Choose MASTER LEDtube InstantFit with the end-cap with two rings. No need to change drivers or rewire. It’s a plug and play solution that works straight out of the box. Quick and easy installation . Check the ballast compatibility list on www.philips.co.uk/ledtube No. Your luminaire works on High Frequence Electronic Ballast (HF) but you can’t use MASTER LEDtube InstantFit or your ballast is not compatible. Cut wires, remove ballast and connect direct to mains. Use the MASTER LEDtube E.Mag with one ring on the cap. 3 Finding the right fit MASTER LEDtube L N E.Mag HF The right choice As you’d expect from the world’s leading name in lighting, our quality and attention to detail means that we can also make your life safer and easier. HF compatibility No wires to replace, no hassle changing drivers; our InstantFit solution works with High Frequency electronic ballast, making it easy and safe for all installation methods. All you have to do is slot the tube into your existing fitting. Pin safety With Philips products you can safely touch the other end-cap when installing the tube. The integrated driver is also safely isolated from touchable parts. Philips LED tubes adhere to all UL and IEC pin safety requirements. Rotating end-caps In many applications the pin fitting is rotated. This can be a problem as LEDtubes only provide directional light. MASTER LEDtubes have rotating end-caps to allow you to rotate the tube by up to 90 degrees. So you can always direct the light to best effect. 5 YEAR WARRANTY 5 Year Warranty Philips MASTER LEDtubes come with a 5 year warranty. Warranty period in open luminaire with a 10mm gap. Based on 20,000 hrs. See the Philips website for details. www.philips.co.uk/ledtube

Finding the right tube E.Mag HF Car Park › Burning hours: 24/7 › Ensure visibility and feeling of safety › Need for energy reduction and reducing maintenance costs › Withstand cold (er) temperatures › Light requirement: 200+ lux Industry › Burning hours: varies, max. 24/7 › Need for energy reduction and reducing maintenance costs: avoiding production loss due to up -lamping activities › Withstand cold temperatures, vibrations › Light requirement: 200-500+ lux Supermarkets / retail › Burning hours: 12 hrs /a day to 24/7 › Enhance ‘green’ image of the brand › Need for energy reduction and reducing maintenance costs › Product enhancement on the shelf › Shatterproof thanks to plastic material › Light requirement: 500+lux Office / school / healthcare › Burning hours: usually 12 hrs /a day › Need for energy reduction and reducing maintenance costs › High quality of light needed and compliance with ergonomic norms › Light requirement: 500+ lux Best energy efficiency Best energy efficiency Best energy efficiency Best energy efficiency Best light output Best light output Best light output Best light output Standard output High output High output High output High output Ultra output Ultra output Ultra output Standard output 1600 - 2000 lumen • 1200 mm ROT• 1200 mm InstantFit• 1500 mm• 1500 mm ROT InstantFit High output 2100 - 3100 lumen • 1200 mm ROT• 1200 mm ROT InstantFit• 1500 mm ROT• 1500 mm ROT InstantFit Ultra output 2300 - 3700 lumen • 1200mm ROT• 1200mm InstantFit• 1500mm ROT• 1500mm InstantFit Ultra Output HF available NOW

Sufficient light › Key parameter for indicating the amount of minimum required light is indicated in EN12464-1 in lux (unit of illuminance per square meter). › EN12464-1 prescribes minimum lux values, uniformity of illumination, and colour rendering index, depending on the task. Lux Working, typing reading and data processing require sufficient light with a minimum lux level 1 m 2 Finding the right output For ultra-output applications, our solutions meet lighting industry standards (EN12464-1) by providing high light levels without causing discomfort or glare. Unified Glare Rating (UGR) The amount of glare, annoyance or reflection created by high or non-uniform brightness must be kept to a minimum 3700 lm 700 lux Discomfort glare › Sensation of annoyance or reflection caused by high or non-uniform brightness (eg. on computer screen). › Amount of glare is indicated in EN 12464-1 standard by Unified Glare Rating (UGR). › Choose High Output LEDtubes for high light output with the best lm/W High output for higher standards in car parks High Output LEDtubes raise the standards in car parks even higher. With a light output of up to 3100 lumen they provide maximum visibility and safety – particularly important in car parks that operate right around the clock. Fluorescent TL-D 1500 mm MASTER LEDtube HO 1500 mm MASTER LEDtube SO 1500 mm High Output 2100 - 3100 lumen Lux 588 lx 660 lx 426 lx Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 50,000 Hrs 64% Energy savings 72 W 24 W 21 W Average buying price installer ex VAT £2 £31 Total costs / year £57 £25 Based on the UK average of 12p/kW hours (including maintenance and lamp replacement cost) £ 2,870 Savings / year 11 months Payback period Number of lamps 85 Burning hours per year 8,760 Hrs Energy costs 12p/kWh Lighting requirements EN12464-1 prescribes minimum lux values, uniformity of illumination and colour rendering index, depending on the task Supermarkets / retail › For Supermarket and Retail applications 500 lux counts as minimum value. › UGR standard for Supermarket applications is also set at max 19 UGR. Industry › For Industry applications, there are many sub segments, each having their own specific standards, in storage industry segment 300 lux counts as minimum value. › UGR standard for Industry applications is set at max 25 UGR. Office / school / healthcare › For Office applications 500 lux per square meter counts as minimum value for writing, typing, reading, data processing, conference and meeting rooms. › UGR standard for Office applications is set at max 19 UGR. › For most Healthcare applications 200 lux counts as minimum value. › UGR standard for applications is set at max 22 UGR. Finding the right solution for your application New standard for car parks Car parks and transportation networks need to feel bright and welcoming 24 hours a day. White LED light has a higher perceived brightness and superior colour rendering, so people feel safer. And because LED is highly reliable and energy efficient, your customers will welcome the savings too. › Choose Standard Output LEDtubes for a lower TCO with the best energy efficiency Fluorescent TL-D 1500 mm MASTER LEDtube SO 1500 mm Standard Output 1600 - 2000 lumen Lux 588 lx 426 lx Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 71% Energy savings 72 W 21 W Average buying price installer ex VAT £2 £27 Total costs / year £57 £21 Based on the UK average of 12p/kW hours (including maintenance and lamp replacement cost) £ 3,664 Savings / year 9 months Payback period Number of lamps 100 Burning hours per year 8,760 Hrs Energy costs 12p/kWh

Fluorescent TL-D 1500 mm MASTER LEDtube HO 1500 mm High Output 2100 - 3100 lumen Lux 687 lx 567 lx Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 64% Energy savings 72 W 24 W Average buying price installer ex VAT £2 £31 Total costs / year £29 £13 Based on the UK average of 12p/kW hours (including maintenance and lamp replacement cost) Fluorescent TL-D 1500 mm MASTER LEDtube UO 1500 mm MASTER LEDtube HO 1500 mm Ultra Output 2300 - 3700 lumen Lux 687 lx 680 lx 567 lx Unified Glare Rating UGR 22.5 21.1 20.6 Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 50,000 Hrs 64% Energy savings 72 W 26 W 24 W Average buying price installer ex VAT £2 £33 Total costs / year £29 £13 Based on the UK average of 12p/kW hours (including maintenance and lamp replacement cost) £ 1,435 Savings / year 1.8 years Payback period Number of lamps 85 Burning hours per year 4,380 Hrs Energy costs 12p/kWh £ 2,452 Savings / year 2.0 years Payback period Number of lamps 150 Burning hours per year 4,380 Hrs Energy costs 12p/kWh Ultra output for ultra efficient supermarkets and retail Beautiful lighting brings out the best in the products on display and enhances the shopping expe-rience for customers. But with lamps burning for up to 18 hours a day, food retailers want solutions that will reduce energy and maintenance costs – and show their green credentials in the best light. › Choose Ultra Output LEDtubes for ultra efficiency in the most demanding supermarket and retail applications High output on the high street Retail stores and hospitality venues know light has the power to attract. It creates irresistible displays, brings brands to life and encourages customers to spend longer in store. With our LEDtubes you can light up sales at the same time as reducing energy and maintenance costs. › Choose High Output LEDtubes for high light output with the best lm/W Ultra output for ultra-efficient industry In ultra-demanding applications, our Ultra Output LEDtubes take safety and performance to the next level. With a super bright light output of up to 3700 lumen they offer the best light output for maximum visibility and minimal maintenance. › Choose Ultra Output LEDtubes for the best light output in the most demanding industry applications High output for highly-efficient industry Industry demands high visibility, efficiency and safety. But 24/7 operations can run up expensive energy bills. Our solutions save energy and maintain their energy efficiency, even in extremely cold conditions. So they reduce maintenance costs and avoid expensive production down time. › Choose High Output LEDtubes for high light output with the best lm/W Fluorescent TL-D 1500 mm MASTER LEDtube HO 1500 mm High Output 2100 - 3100 lumen Lux 545 lx 326 lx Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 64% Energy savings 72 W 21 W Average buying price installer ex VAT £2 £31 Total costs / year £29 £12 Based on the UK average of 12p/kW hours (including maintenance and lamp replacement cost) £ 6,825 Savings / year 1.8 years Payback period Number of lamps 400 Burning hours per year 4,380 Hrs Energy costs 12p/kWh Fluorescent TL-D 1500 mm MASTER LEDtube UO 1500 mm MASTER LEDtube HO 1500 mm Ultra Output 2300 - 3700 lumen Lux 545 lx 476 lx 326 lx Unified Glare Rating UGR 24 23.2 22.6 Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 50,000 Hrs 64% Energy savings 72 W 26 W 21 W Average buying price installer ex VAT £2 £33 Total costs / year £29 £13 Based on the UK average of 12p/kW hours (including maintenance and lamp replacement cost) £ 6,540 Savings / year 2.0 years Payback period Number of lamps 400 Burning hours per year 4,380 Hrs Energy costs 12p/kWh

Ultra output for ultra-efficient offices Office and school lighting can influence energy levels, performance and wellbeing. Our solutions shine with impressive, high quality light to create the most comfortable ambience that complies with all office norms and still saves on energy. So business is always a pleasure. › Choose Ultra Output LEDtubes for the best light output in the most demanding office and healthcare applications High output for highly efficient offices With a light output of up to 3100 lumen, our High Output LEDtubes provide brilliant light quality with the best lumen per watt. A simple switch for offices and healthcare settings that save on energy but feel bright and welcoming. › Choose High Output LEDtubes for high light output with the best lm/W Fluorescent TL-D 1500 mm MASTER LEDtube HO 1500 mm High Output 2100 - 3100 lumen Lux 807 lx 607 lx Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 64% Energy savings 72 W 24 W Average buying price installer ex VAT £2 £33 Total costs / year £29 £12 Based on the UK average of 12p/kW hours (including maintenance and lamp replacement cost) £ 6,825 Savings / year 1.8 years Payback period Number of lamps 400 Burning hours per year 4,380 Hrs Energy costs 12p/kWh Fluorescent TL-D 1500 mm MASTER LEDtube UO 1500 mm MASTER LEDtube HO 1500 mm Ultra Output 2300 - 3700 lumen Lux 807 lx 725 lx 607 lx Unified Glare Rating UGR 17.1 17.8 17.2 Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 50,000 Hrs 64% Energy savings 72 W 26 W 21 W Average buying price installer ex VAT £2 £33 Total costs / year £24 £11 Based on the UK average of 12p/kW hours (including maintenance and lamp replacement cost) £ 1,358 Savings / year 2.4 years Payback period Number of lamps 100 Burning hours per year 3,640 Hrs Energy costs 12p/kWh Calculate your own savings on www.philips.co.uk/ledtube Background As part of its ongoing carbon reduction programme, St Helens Metropolitan Borough Council has upgraded lighting in a multi-storey car park from fluorescent to LED lighting. The Solution Around 500 Philips MASTER LEDtube, supplied through Specialist Lamp Distributors (a subsidiary of Edmundson Electrical), have been retrofitted to existing twin T8 fluorescent luminaires at the car park. As well as improving the lighting quality and visibility for drivers, the project has delivered significant reductions in energy and maintenance costs. Frank Kelly Building Services Engineering Manager for the Council, explained: “Upgrading to LED light sources seemed to be the obvious solution and a key consideration was ensuring that light levels would be maintained, given the safety aspects of car park lighting. Having considered a number of options it was clear that Philips offered the quality and reliability that we required,” he continued. The MASTER LEDtube design integrates LED light sources into a traditional fluorescent–style tube. The work was carried out with minimum disruption to car park users, thanks to the ease of simply retrofitting the MASTER LEDtube into the existing fittings. In addition, the unique design of MASTER LEDtube creates a perfectly uniform visual appearance that cannot be distinguished from traditional fluorescent. In order to qualify for Council funding, the project needed to deliver a return on investment within four years. This will be achieved through the savings on energy consumption alone. Plus there will be a significant reduction in the costs associated with changing lamps, as the MASTER LEDtube will provide a 50,000 hour life, compared to a typical life of 15,000 hours for the previous T8 tubes. Case study Multi-storey savings with MASTER LEDtube Upgrading to LED light sources seemed to be the obvious solution ” Frank Kelly, Building Services Engineering Manager for St Helens Metropolitan Borough Council Customer St Helens Metropolitan Borough Council Location Merseyside Philips Product MASTER LEDtube

MASTER LEDtube Protection starter Product type LED Traditional Rotatable endcap Lumen output Operation Beam angle CRI Colour temperature EOC 1 pcs (C) MASTER LEDtube Wattage Equivalent Lumen ˚ K 600mm series 10 W 18 W Yes 1000 lm E.Mag & Mains 160˚ 83 3000 871869646143300 600mm series 10 W 18 W Yes 1050 lm E.Mag & Mains 160˚ 83 4000 871869646141900 600mm series 10 W 18 W Yes 1050 lm E.Mag & Mains 160˚ 83 6500 871869646145700 GA110 900mm 15 W 30 W No 1250 lm E.Mag & Mains 140˚ 85 4000 871829123880500 GA110 900mm 15 W 30 W No 1250 lm E.Mag & Mains 140˚ 85 6500 871829123882900 1800mm ROT 25 W 70 W Yes 3700 lm E.Mag & Mains 160˚ 85 4000 871869648037300 Product type EOC 10 pcs (I) Accessory 8718291 Starter EMP 72930300 G13 ROTATABLE (ROT) NON- DIMMABLE 21.5 34.5 DIMENSIONS 50,000 H 3000/4000/6500 Technical specifications 1198 1498 27.3 MASTER LEDtube High Output Product type LED Traditional Rotatable endcap Lumen output Operation Beam angle CRI Colour temperature EOC 1 pcs (C) MASTER LEDtube Wattage Equivalent Lumen ˚ K 1200mm ROT 20 W 36 W Yes 1900 lm E.Mag & Mains 160˚ 83 3000 871869642198700 1200mm ROT 20 W 36 W Yes 2100 lm E.Mag & Mains 160˚ 83 4000 871869642200700 1200mm ROT 20 W 36 W Yes 2100 lm E.Mag & Mains 160˚ 83 6500 871869642202100 1500mm ROT 23 W 58 W Yes 2900 lm E.Mag & Mains 160˚ 83 3000 871829178956700 1500mm ROT 23 W 58 W Yes 3100 lm E.Mag & Mains 160˚ 83 4000 871829178958100 1500mm ROT 23 W 58 W Yes 3100 lm E.Mag & Mains 160˚ 83 6500 871829178960400 1200mm ROT InstantFit 22 W 36 W Yes 2100 lm HF 160˚ 83 4000 871869647125800 1200mm ROT InstantFit 22 W 36 W Yes 2100 lm HF 160˚ 83 6500 871869647127200 1500mm ROT InstantFit 25 W 58 W Yes 2900 lm HF 160˚ 83 3000 871869651458000 1500mm ROT InstantFit 25 W 58 W Yes 3100 lm HF 160˚ 83 4000 871869640886500 1500mm ROT InstantFit 25 W 58 W Yes 3100 lm HF 160˚ 83 6500 871869640888900 G13 ROTATABLE (ROT) NON- DIMMABLE EEL 160˚ BEAM ANGLE 50,000 H 3000/4000/6500 DIMENSIONS MASTER LEDtube Standard Output Product type LED Traditional Rotatable endcap Lumen output Operation Beam angle CRI Colour temperature EOC 1 pcs (C) MASTER LEDtube Wattage Equivalent Lumen ˚ K 1200mm ROT 14.5 W 36 W Yes 1600 lm E.Mag & Mains 160˚ 83 4000 871829179308300 1200mm ROT 14.5 W 36 W Yes 1600 lm E.Mag & Mains 160˚ 83 6500 871829179310600 1500mm 20 W 58 W No 2000 lm E.Mag & Mains 160˚ 83 4000 871829173451200 1500mm 20 W 58 W No 2000 lm E.Mag & Mains 160˚ 83 6500 871829173453600 1200mm InstantFit 16.5 W 36 W No 1600 lm HF 160˚ 83 4000 871829172885600 1200mm InstantFit 16.5 W 36 W No 1600 lm HF 160˚ 83 6500 871829172887000 1500mm ROT InstantFit 22 W 58 W Yes 2000 lm HF 160˚ 83 4000 871869640078400 1500mm ROT InstantFit 22 W 58 W Yes 2000 lm HF 160˚ 83 6500 871869640080700 G13 ROTATABLE (ROT) NON- DIMMABLE EEL 160˚ BEAM ANGLE 50,000 H 4000/6500 1198 1498 27.3 DIMENSIONS EEL 589 894 1798 27.3 DIMENSIONS 1198 1498 27.3 MASTER LEDtube Ultra Output Product type LED Traditional Rotatable endcap Lumen output Operation Beam angle CRI Colour temperature EOC 1 pcs (C) MASTER LEDtube Wattage Equivalent Lumen ˚ K 1200mm UO 20 W 45 W Yes 2300 lm E.Mag & Mains 160˚ 83 3000 871869646149500 1200mm UO 20 W 45 W Yes 2500 lm E.Mag & Mains 160˚ 83 4000 871869646151800 1200mm UO 20 W 45 W Yes 2500 lm E.Mag & Mains 160˚ 83 6500 871869646155600 1500mm UO 25 W 52 W Yes 3400 lm E.Mag & Mains 160˚ 83 3000 871869646157000 1500mm UO 25 W 52 W Yes 3700 lm E.Mag & Mains 160˚ 83 4000 871869646159400 1500mm UO 25 W 52 W Yes 3700 lm E.Mag & Mains 160˚ 83 6500 871869646163100 1200mm UO InstantFit 22 W 36 W Yes 2300 lm HF 160˚ 83 3000 871869655282700 1200mm UO InstantFit 22 W 36 W Yes 2500 lm HF 160˚ 83 4000 871869655278000 1200mm UO InstantFit 22 W 36 W Yes 2500 lm HF 160˚ 83 6500 871869655280300 1500mm UO InstantFit 26 W 58 W Yes 3400 lm HF 160˚ 83 3000 871869655288900 1500mm UO InstantFit 26 W 58 W Yes 3700 lm HF 160˚ 83 4000 871869655284100 1500mm UO InstantFit 26 W 58 W Yes 3700 lm HF 160˚ 83 6500 871869655286500 G13 ROTATABLE (ROT) NON- DIMMABLE 160˚ BEAM ANGLE 50,000 H 3000/4000/6500 DIMENSIONS E.Mag HF E.Mag HF E.Mag E.Mag BEAM ANGLE EEL / 140˚ 160˚ EEL 1200mm UO = A + / EEL 1500mm UO = A ++ NEW NEW NEW NEW NEW NEW HF

www.philips.co.uk/ledtube © Philips Lighting Holding B.V. 2016. All rights reserved. Philips reserves the right to make changes in specifications and/or to discontinue any product at any timewithout notice or obligation and will not be liable for any consequences resulting from the use of this publication.

Published: 15 April 2016 Category: Product Catalogues & Brochures
