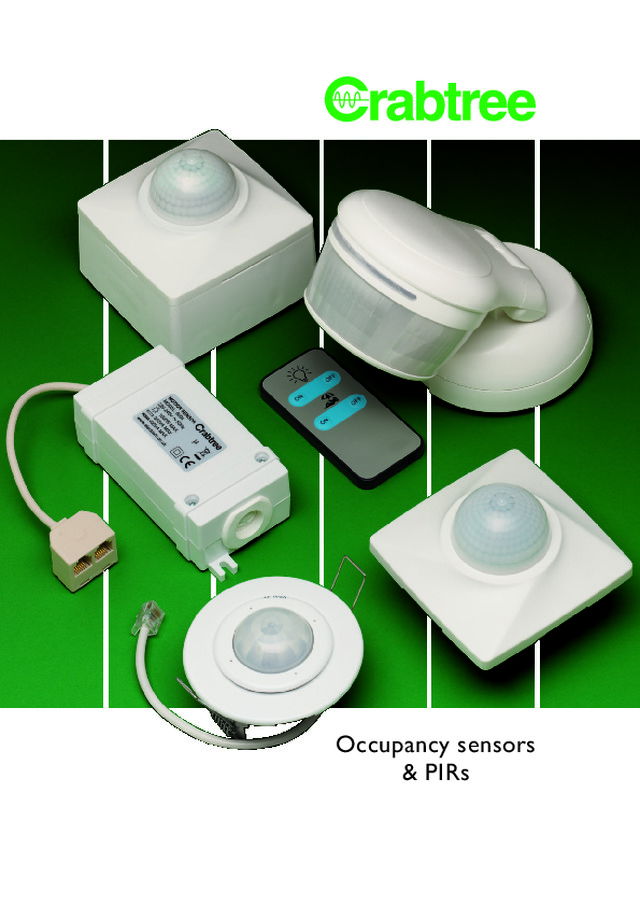

Occupancy sensors & PIRs 76655 Crabtree Occupancy Sensors & PIRs (Q8)  18/10/2012  17:36  Page 1

Various locations where motion sensors can be used are general office, stairwell, corridors outdoor applications. 76655 Crabtree Occupancy Sensors & PIRs (Q8)  18/10/2012  17:36  Page 2

Master & slaveflush ceilingmotion sensors Crabtree’s range of occupancy sensors are designed to offer a quick and easy plug n play installation whilst offering savings to lighting energy consumption. It is estimated that 70% of the UK’s lighting consumption is used in commercial applications. Studies of several rooms in different commercial environments installed with occupancy sensors, show that on average, 41% of lighting costs could be saved. By using Crabtree’s plug n play solution users can achieve these savings with a minimal investment, in time and money. The versatility of the Crabtree plug n play installation makes the product ideal for coverage in all room shapes as well as a single detection zone having multiple sensor locations. The master unit has power connected to a power supply module. Plug n play is then achieved by slave units connecting to each other via a supplied RJ11 cable in a daisy chain arrangement. Further to the plug n play Master and Slave system the range is further complimented by a dedicated Ceiling and Corridor Sensor. The flush or surface mounted sensors have the largest known detection zone in the market, 24 metre diameter when fitted at optimal height. The existing Crabtree Minder IP55 PIR range offers solutions for installations in arduous conditions. 76655 Crabtree Occupancy Sensors & PIRs (Q8)  17/10/2012  12:19  Page 3

CEILING MASTER MOTION SENSOR l PACK QTY Ceiling Master Motion Sensor 1 6004 ● Detection circular 360º ● 8 metre diameter detection zone at 2.4 metre height ● Switching capacity:  1800W Incandescent                                                     1100VA Fluorescent                                                     1100VA Energy Saving Lamp ● Time adjustment 30 sec to 30 min ● Photocell: Lux adjustment 5 to 1000 LUX ● Sensor adjustment 1 metre diameter to 8 metre diameter ● Power box supplied with master motion sensor ● 5 slave motion sensors can be connected in line with 1 master motion sensor ● Master motion sensor comes complete with 30cm RJ12 patch cord ● Plastic shroud supplied to help mask the lens if there are any undesired areas Product standards ● EN 55015:2006 + A1:2007 ● EN 61547:1995 + A1:2000 ● EN 61000-3-2:2006 ● EN 61000-3-3:1995 + A1:2001 + A2:2005 ● EN 60669-2-1:2004 + C1:2007 clause 26 ● EN 60669-2-1:2004 + C1:2007 ● EN 60669-1:1999 + A1:2002 + A2:2008 exc clause 19.102 101.1.1.2101.3 CEILING SLAVE MOTION SENSOR l PACK QTY Ceiling Slave Motion Sensor 1 6005 ● No wiring required ● Detection circular 360º ● 8 metre diameter detection zone at 2.4 metre height ● Switching capacity:  1800W Incandescent                                                     1100VA Fluorescent                                                     1100VA Energy Saving Lamp ● Sensor adjustment 1 metre diameter to 8 metre diameter ● 5 slave motion sensors can be connected in line with 1 master motion sensor ● Slave sensor comes complete with 5 metre RJ11 patch cord ● Plastic shroud supplied to help mask the lens if there are any undesired areas Product standards ● EN 55015:2006 + A1:2007 ● EN 61547:1995 + A1:2000 ● EN 61000-3-2:2006 ● EN 61000-3-3:1995 + A1:2001 + A2:2005 ● EN 60669-2-1:2004 + C1:2007 clause 26 ● EN 60669-2-1:2004 + C1:2007 ● EN 60669-1:1999 + A1:2002 + A2:2008 exc clause 19.102 101.1.1.2101.3 6004 6004 open showing adjustment dials 6005 6005 open showing adjustment dial 76655 Crabtree Occupancy Sensors & PIRs (Q8)  17/10/2012  12:19  Page 4

4m 4m 5m 18m total 5m Master 6004 Slave 1 6005 Slave 2 6005 Slave 5 6005 Slave 4 6005 Slave 3 6005 5m 4m 4m 13m  total 4m 4m 5m 18m total 5m Master 6004 Slave 1 6005 Slave 2 6005 Slave 3 6005 Slave 4 6005 Slave 5 6005 5m 5m 4m 4m 18m  total 5m 4m 4m 13m total 63mm N L Power Module Ceiling 5-25mm Each power box can have not only one MASTER sensor but alsocan extend flexibly up to 5 SLAVE sensors. 6004 POWER BOX 6004 MASTER SENSOR 30cm RJ12 Patch Cord 30cm RJ11 Patch Cord 5m 1x2 RJ11 Patch Cord 0.2m 1x2 RJ12 Patch Cord NOTE: Master x1 – Slave x5 6005 SLAVE SENSOR 6005 SLAVE SENSOR Determine the best location for the sensor. Install the sensor atleast 1m away from fluorescent and HVAC ducts, and at least1.3m away from incandescent fixtures and HVAC diffusers. 1. Determine the best location for the sensor. 2. Drill a 63mm diameter hole in the ceiling. The thickness of the ceiling must be between 5mm and 25mm. 3. Insert the power module into the ceiling first and then fix the sensor with metal spring as shown. S S PULSE 20 30 10 3 5 1 30S PULSE 20 30 10 3 5 1 30S PULSE 20 30 10 3 5 1 30S TEST TEST The sensor has an adjustable “TIME ON” control from 30 secondsminimum to a maximum of 30 minutes. Light will remain on forthe setting time interval after the last movement is detected.While there is movement from a heat source in the detecting areathe lighting will remain on and the time will keep resetting. If time adjustment is set to PULSE, the sensor will enter short pulsemode. In short pulse mode, the sensor will send a signal to thedevice. The signal will be 1 sec ON and 9 sec OFF. The LUX adjustment controls the light level at which the unit willswitch on the light when movement is sensed. If set to themaximum position, it will switch during daylight. If set to theminimum position, it will operate only in total darkness. Ideally itshould be set at dusk or in the light conditions under which thesensor and lights are expected to operate. TEST If LUX adjustment is set to maximum, the sensor will enter TESTmode. In TEST mode, the light will turn on for 3 sec when PIR istriggered. Check the detection area and adjust sensor to thedesired angle. Afterwards, it can be switched back to desired timesetting. The sensor adjustment controls the detection range. If set to themaximum position, the detection range is about 4m radius. If set tothe minimum position, the detection range is about 0.5m radius. HEIGHT RADIUS (M) 2.3 3.5 2.4 4 3.0 5.5 ADJUSTMENTS                                               l Ø 8m 360º 2.4mHigh Typical maximum layout of master followed by 5 slaves Master only Master only Master only Master only 76655 Crabtree Occupancy Sensors & PIRs (Q8)  17/10/2012  12:19  Page 5

CEILING MOTION SENSOR l PACK QTY Ceiling Motion Sensor 1 6001 ● 360º Detection range, flush mounting ● 24 metre diameter detection zone at 3 metre height ● Switching capacity: 1000W Incandescent       500VA Fluorescent       500VA Energy Saving Lamp ● Photocell: Lux adjustment 2 to 1000 LUX ● Time adjustment 10 sec to 20 min ● Sensor adjustment 4 metre diameter to 24 metre diameter Product standards ● EN 60669-1:1999 + A1:2002 + A2:2008 ● EN 60669-2:2004 + A1:2009 ● EN 55015:2006 + A1:2007 + A2:2009 ● EN 61000-3-2:2006 ● EN 61000-3-3:2008 ● EN 61547:1995 + A1:2000 CORRIDOR MOTION SENSOR l PACK QTY Corridor Motion Sensor 1 6002 ● 360º Detection range, flush mounting ● 24 metre in length 6 metre width detection range at 3 metre height ● Switching capacity: 1000W Incandescent       500VA Fluorescent       500VA Energy Saving Lamp ● Photocell: Lux adjustment 2 to 1000 LUX ● Time adjustment 10 sec to 20 min ● Sensor adjustment 4 metre diameter to 24 metre diameter ● Detection range is achieved by aligning the double arrow  along corridor Product standards ● EN 60669-1:1999 + A1:2002 + A2:2008 ● EN 60669-2:2004 + A1:2009 ● EN 55015:2006 + A1:2007 + A2:2009 ● EN 61000-3-2:2006 ● EN 61000-3-3:2008 ● EN 61547:1995 + A1:2000 6001 Rear view of product 6001 6002 FLUSH MOUNT BACK BOX l PACK QTY 1 Gang 47mm deep dry lining back box 10 SB632 Tile Thickness                         6.35 to 15mm Dimensions                             83mm x 83mm x 48mm Cut out dimension                 73mm x 73mm                                                     SURFACE MOUNT BACK BOX l PACK QTY 1 Gang 39mm deep 1 6003 Dimensions                             90mm x 90mm x 39mm 6003 SB632 Rear view of product 6002 t t 76655 Crabtree Occupancy Sensors & PIRs (Q8)  17/10/2012  12:19  Page 6

+ TIME + TIME LUX LUX + SENS + SENS The sensor has an adjustable “TIME ON” control from 10 secondsminimum to a maximum of 20 minutes (approx). Light will remainon for the setting time interval after the last movement isdetected. While there is movement from a heat source in thedetecting area the lighting will remain on and the time will keepresetting. The sensor adjustment controls the detection range. If set to theMaximum position “+”, detection range is approximately 12mradius, if set to the Minimum position “–”, detection range isapproximately 2m radius. The LUX adjustment controls the light level at which the unit willswitch on the light when movement is sensed. If set to themaximum position, it will switch during daylight. If set to theminimum position, it will operate only in total darkness. Ideally itshould be set at dusk or in the light conditions under which thesensor and lights are expected to operate. 6001 HEIGHT RADIUS (M) 2.3 10 2.5 11 3.0 12 6002 HEIGHT RADIUS (M) 2.5 11 3.0 12 Ø 24m 360º 3m High 3m High 12m 12m 360º 3m 3m NOTE: 6002 detection range is achieved by aligning the double arrow           along corridor. t t DETECTION RANGE                                         l ADJUSTMENTS                                               l Minimum 10 seconds Maximum 20 minutes Minimum dark operation Maximum daylight operation Minimum 2m detected range Maximum 12m detected range 76655 Crabtree Occupancy Sensors & PIRs (Q8)  17/10/2012  12:19  Page 7

6887 6842 6841 6845 6846 6849 MINDER 90°, 220° & 280° SENSORS l IP55                                                                 PACK QTY Passive infrared motion detector which switches consumers through atiming element when sources of heat move within its range. Minder 90 Deg PIR sensor, no remote control,         1               6853surveillance range 12m frontal, 6m lateral Minder 220 Deg PIR sensor, c /w remote control,     1               6845surveillance range 16m frontal & lateral Minder 280 Deg PIR sensor, c /w remote control,     1               6846surveillance range 16m frontal & lateral Dimensions                      102mm x 102mm x 182mm ●  Minder 90° and 220° can be swivelled vertically +90° -40° ●  Sensor head can be swivelled horizontally +/- 65° ●  Can be wall or ceiling mounted ●  Minder 90° and 220° offer rear-field “anti-creep” protection ●  Maximum Switching current 16AX MINDER SECURITY 220° SENSOR l IP55                                                                 PACK QTY Minder Security 220 Deg PIR sensor, c /w remote     1               6849control,surveillance range 16m frontal & lateral Dimensions                      102mm x 102mm x 182mm ●  Minder 220° can be swivelled vertically +90° -40° ●  Sensor head can be swivelled horizontally +/- 65° ●  Can be wall or ceiling mounted ●  Minder 220° offers rear-field “anti-creep” protection ●  Maximum Switching current 16AX ANCILLIARY ITEMS l                                                                        PACK QTY Corner mounting bracket                                       1              6887 Manual remote control                                           1              6841 Service Manual remote control                                1              6842 76655 Crabtree Occupancy Sensors & PIRs (Q8)  17/10/2012  12:19  Page 8

MINDER PASSIVE INFRA RED SENSORS                                                                                         l The Minder is a multi-adjustable, passive infrared movement detector. People and animals radiate heat, which is invisible to the human eye (infrared range). Consequently, the recorded infrared energy pattern changes when they enter the detection zone                                                                                                              DETECTION RANGE DIAGRAMS Minder 280 Settings / Restrictions of detection 220º Rearfield detection Range up to 16m 280º Rearfield detection Range up to 16m 90º Rearfield detection Range up to 12m 6m 6m 16m 220˚ & 280˚ 12m 90˚ 1m 2.5m +- 30˚ +- 30˚ LED -40˚ +90˚ Insatallation sites Be aware of trees and bushes Do not install outside lights in detection zone Levels 1 and 2 cover remote surveillance and ensure seamless detection when the surveillance zone is entered from the outside. Level 3 covers close range detection to prevent undetected entry of the surveillance zone close to the wall. Level 4 covers the rearfield detection, which is activated when the front door is opened from the inside. The various detection levelsTo fully cover the surveillance zone, the Fresnel lens splits the zone into several overlapping levels. Level 2 Level 1 Level 3 Level 4 76655 Crabtree Occupancy Sensors & PIRs (Q8)  17/10/2012  12:19  Page 9

SPECIFICATION: 1. POWER: 220V to 240V ~ 50Hz. 2. Fuse: T6.3A, 250VAC. 3. Time adjustment from 10sec to 20min.  4.  Lux adjustment: ‘Light level’ sensing from 2 Lux to 1000 Lux. 5. Range of detection from 2m to 12m radius. Detection range can be adjusted using the supplied shroud stickers 6. Switching capacity: 1000W incandescent light / 500VA fluorescent light / 500VA Energy saving lamp. 7. 6001/6002 detection range: please refer to the fig.2. 8. Auto mode / Test mode / Timer mode. 9. Operating temperature: -10ºC to +40ºC. 10. Storage temperature: -25ºC to +70ºC. 11. Terminal capacity: 2 x 1.5mm 2 . WIRING: Warning: Products should be installed by a qualified electrician. Ensure that the sensor is screwed securely to the ceiling without any movement. 1. The  phase (L) and neutral (N) conductors of the supply cable are connected according to terminal assignment. 2. The output (or load) phase (L’) and neutral (N) connectors are to be connected to the load terminals marked L’ and N. 6001/6002 CEILING & CORRIDOR MOUNTINDOOR MOTION SENSOR                                         l SPECIFICATION: 1. POWER: 220V to 240V ~ 50Hz. 2. Detection range: refer to fig. 1. 3. Time adjustment: 30 sec, 1min, 3min, 5min, 10min, 20min, 30min (apply to Master sensor only)  4.  Lux adjustment: ‘Light level’ sensing from 5 to 1000 Lux. (apply to Master Sensor only) 5. Sensitivity adjustment: 0.5m to 4m radius. 6. Switching capacity: 1800W incandescent light / 1100VA fluorescent light / 1100VA Energy saving lamp 7. Master sensor can be connected to up to 5 slave sensors. 8. Warm up: 60 sec. 9. Test mode: Lux adjustment switch to maximum. Light turns on for 3 sec in each trigger. 10. Short time pulse mode: Time adjustment switch to minimum. 1 sec ON, 9 sec OFF. 11. Operating temperature: -10ºC to +40ºC. 12. Storage temperature: -25ºC to +70ºC. 13. Terminal capacity: 2 x 1.5mm 2 . WIRING: Warning: Products should be installed by a qualified electrician. Ensure that the sensor is fixed securely to the ceiling without any movement. 1. The phase (L) and neutral (N) conductors of the supply cable are connected according to terminal assignment. 2. The OUTPUT phase (L’) and neutral (N) conductors are to be connected to the load terminals marked L’ and N. CEILING FLUSH-MOUNT MASTER & SLAVE           OCCUPANCY SENSOR 6004 & 6005                        l INSTALLATION: 1. Fuse can be replaced by using a screwdriver to pull up the fuse. N N L L’ 6001 / 6002 N L N N L L’ N L L’ N N L L’ N L N N L’ L N 6001 HEIGHT RADIUS (M) 2.3 10 2.5 11 3.0 12 6002 HEIGHT RADIUS (M) 2.5 11 3.0 12 Ø 24m 360º 3m High 3m High 12m 12m 360º 3m 3m NOTE: 6002 detection range is achieved by aligning the double arrow           along corridor. t t S S HEIGHT RADIUS (M) 2.3 3.5 2.4 4 3.0 5.5 Ø 8m 360º 2.4mHigh Minimum Maximum FIG. 1 FIG. 2 76655 Crabtree Occupancy Sensors & PIRs (Q8)  17/10/2012  12:19  Page 10

MINDER PASSIVE INFRA RED SENSORS                                                                                         l The Minder is a multi-adjustable, passive infrared movement detector. People and animals radiate heat, which is invisible to the human eye (infrared range). Consequently, the recorded infrared energy pattern changes when they enter the detection zone                                                                                                               DETECTION RANGE DIAGRAMS TECHNICAL DATA                                                                l Horizontal range                         90˚                      220˚                     280˚of detection                                    Max. frontal range                     12m                     16m                     16m Max. bilateral range                    6m                      16m                     10m Water protection                        IP55                     IP55                     IP55 Switch off delay                     1 - 3 - 5min                 10  sec - 30min      10 sec - 30min Dusk sensor, in Lux                 3 / 15 / Lux          0,5 - 300 / Lux        0,5 - 300 / Lux Switching Capacity               3680 W / VA         3680 W / VA         3680 W / VA Max switching Current              16AX                   16AX                   16AX Operating Temperature       -25˚C - +55˚C       -25˚C - +55˚C       -25˚C - +55˚C MINDER FAULT FINDING ANALYSIS                                                                                                                                    l NATURE OF FAULT                                                     REASON FOR FAULT                                                              REMEDY Minder does not operate                                           Lens covered or dirty                                                            Check power supply, uncover and/or clean lens Inadvertent operation of Minder                                Hot air or smoke e.g. out of kitchens activate Minder           Install Minder at a different location Lamp is permanently on                                            Permanent movement in the monitored area                        Make sure that no heat source is in the                                                                                                                                                                                           detection zone and wait until adjusted time                                                                                                                                                                              lapse has run down.. For control purposes,                                                                                                                                                                              please cover the lens completely.                                                                                                         Minder is bridged to manual operation by                            Switch to automatic operation                                                                                 additional switch INSTALLATION                                                                     l The Minder functions optimally when installed lateral to walking direction.When selecting the installation site, ensure that: ●  The minder is not covered by rigid or moveable objects (e.g. roofing elements,     branches of tree, etc.). ●  When unit is installed above, or lateral to luminaires, a minimum distance is              always allowed between the unit and the luminaire, in order to prevent    maloperation. ●  when the unit is installed below luminaires, it is not heated up as a result of     radiant heat from the luminaire.                                                                             When mounted at a height of 2.5m, the detection range is as above mentioned,though deviations in the mounting height cause changes in the detection range.In the case of special conditions at the site (e.g. rows of trees, small plot of land,proximity to road, etc.) the enclosed masking strip can be used to restrict thedetection range by sticking it on the Minder lens. Standard Connection With Break Switch N L LS 16A N L N L LS 16A N L Rearfield detection Additional protection for windows and doors up to the wall of the house,even in case of installation directly above doors and windows, is providedby the integrated rearfield detection. 76655 Crabtree Occupancy Sensors & PIRs (Q8)  18/10/2012  17:34  Page 11

ELECTRIUM SALES LIMITED   A SIEMENS COMPANY Commercial Centre, Lakeside Plaza, Walkmill Lane, Bridgtown, Cannock WS11 0XE. eMail: [email protected]   Web: www.electrium.co.uk UK SALES Telephone: 01543 455010   Facsimile: 01543 455011  eMail: [email protected] TECHNICAL Telephone: 01543 438310   Facsimile: 01543 438311  eMail: [email protected] EXPORT SALES Telephone: +44 1543 455049   Facsimile: +44 1543 455048  eMail: [email protected] DUBAI OFFICE Telephone: +971 4 3660053   Facsimile: +971 4 3660676 Although every effort has been made to ensure accuracy in the compilation of the technical detail within this publication, specifications and performance data are constantly changing. Latest details can be obtained from Crabtree. Publication No.  A2073 10/12 Printed in England. 76655 Crabtree Occupancy Sensors & PIRs (Q8)  18/10/2012  17:35  Page 12
