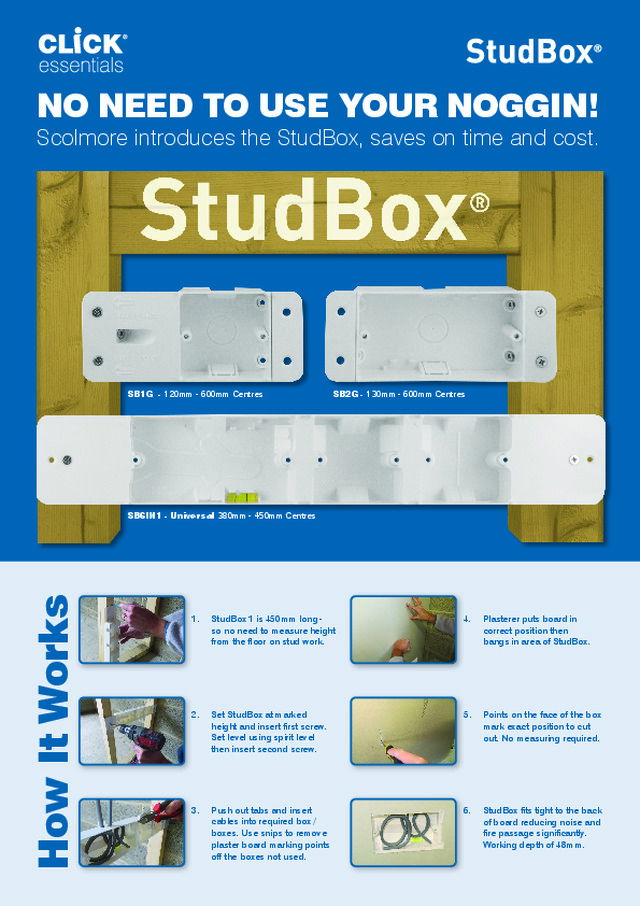

CLICK - StudBox - Product Catalogue - 2016

How It W orks 1.  StudBox 1 is 450mm long -  so no need to measure height from the floor on stud work. 4.  Plasterer puts board in  correct position then bangs in area of StudBox. 2.  Set StudBox at marked  height and insert first screw. Set level using spirit level then insert second screw. 5.  Points on the face of the box  mark exact position to cut out. No measuring required. 3.  Push out tabs and insert  cables into required box /boxes. Use snips to remove plaster board marking points off the boxes not used. 6.  StudBox fits tight to the back  of board reducing noise and fire passage significantly. Working depth of 48mm. Scolmore introduces the StudBox, saves on time and cost. NO NEED TO USE YOUR NOGGIN! SB6IN1 - Universal 380mm - 450mm Centres SB1G  - 120mm - 600mm Centres SB2G - 130mm - 600mm Centres

Tel:  +44 (0)1827 63454    Fax:  +44 (0)1827 63362   Email:   [email protected]    Scolmore Park, Landsberg, Lichfield Road Industrial Estate, Tamworth, Staffordshire B79 7XB scolmore.com/studbox ONE BOX SIX OPTIONS OPTION 1 OPTION 2 OPTION 3 OPTION 4 OPTION 5 OPTION 6 WHAT DISTANCE WILL THE BOX SPAN ACROSS?SB6IN1  - 380mm to 450mmSB1G  - 120mm to 600mm SB2G  - 130mm to 600mm WHAT ARE THE POINTS FOR ON THE FRONT FACE?When the plasterer places his board up to a wall with a StudBox fitted, he bangs the board in the area of StudBox and it leaves marks at the corners of each box cavity so the hole can be cut out exactly and without measurement being required. WHAT HAPPENS IF I ONLY NEED TO USE A TWIN OR SINGLE BOX?Cut the studs off the box cavity/s not being used with snips and board over them. WHY CUT THE POINTS OFF THE BOX CAVITIES NOT BEING USED?By snipping off the points on the unused box cavities this guarantees that the plasterer marks and cuts out the correct box cavity. WHY DOES THE STUDBOX 1 HAVE ARROWS IN THE BACKSAYING "SINGLE BOX" AND "DOUBLE BOX"?If you require another socket or switch at a later date the arrows show you which side to cut the hole in board. WHAT HAPPENS IF ONE OF THE BRASS THREADS GETS DAMAGED?Drill out the damaged insert with a 5mm drill and we can supply a M3.5 brass insert that self taps from the front. WHAT OTHER VARIATIONS OF BOX DO YOU MAKE?The original StudBox offers 6 variants in one. We also make StudBox 1G & 2G. WHERE CAN I BUY STUDBOX?Contact Scolmore on 01827 63454 for details of your nearest stockist. WHERE IS STUDBOX MANUFACTURED?Here in the UK. WILL STUDBOX BREAK OR SHATTER?No, StudBox is made from Polycarbonate an engineering plastic which means its both strong and flexible. The flanges can be bent completely backwards and they won't break. IS STUDBOX FIRE RESISTENT?StudBox is made from Polycarbonate which is described as a 'Self Extinguishing' material and has a fire rating of UL94 V-2 @ 1.6mm thick. DOES THE BOX PUSH THE PLASTERBOARD FOREWORD?The flanges are only 1.8mm thick so it is not noticeable when the board is in place. I NOTICE THE BOX IS FLEXIBLE WHEN 1ST FIXED?This flexibility helps with any knocks or bangs it may receive. When 2nd fixed it is completely solid. WHAT HAPPENS IF I HAVE ANY PROBLEMS PURCHASING OR  FITTING A STUDBOX?Contact Scolmore on 01827 63454 or visit www.scolmore.com for  installation details. Q.A. Q.A. Q.A. Q.A. Q. A. Q.A. Q.A. Q.A. Q.A. Q.A. Q.A. Q.A. Q.A. Q. A. FAQs
