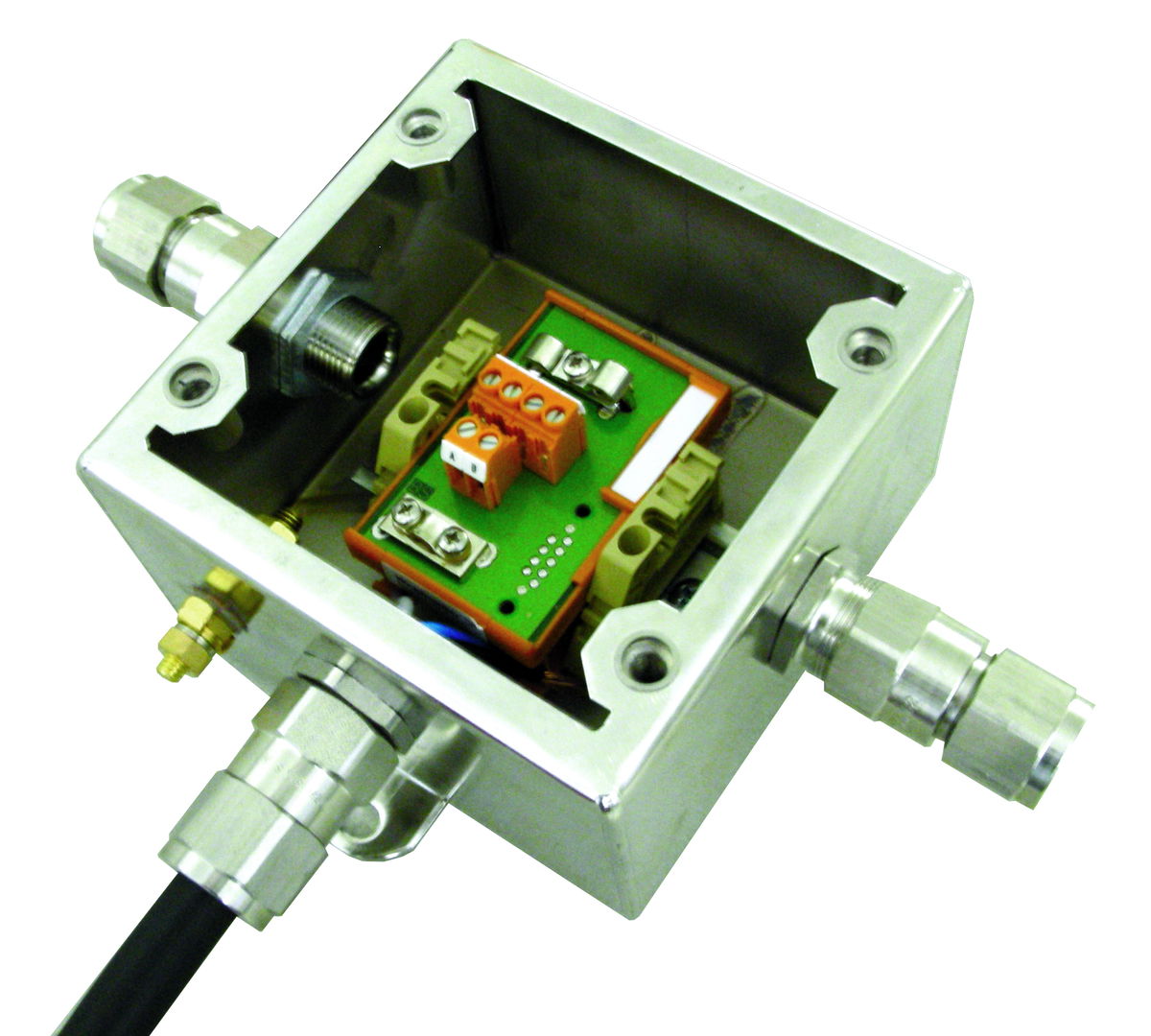

Weidmuller’s new Profibus DP distributor has been designed to allow connection of Profibus DP instruments with SWA Cable in challenging environments where there is a danger of damage to standard Profibus DP cable.
Utilising Weidmuller’s renowned STB enclosure the distributor has three M20 clearance holes one each on the left, bottom and right hand sides, and comes complete with the Profibus DP T piece to enable connection to the spur whilst providing an excellent shield contact. The cable glands can then be selected to suit the SWA Cable being used.
The overall dimensions are 120mm x 120mm x 80mm (Height x Width x Depth)
Enclosure Technical Data
Enclosure Material: Stainless Steel 1.4404(316L) 1.50mm
Ingress Protection: IP66
Earthing: Body-internal/External M6 Stainless Steel Lid - M6 x 12 Stainless Steel
External Mounting: 2 External lugs with 8 mm holes
Lid Opening: Fully detachable lid with 4 x M5 Bolts
Impact Resistance: 10J industry standard
Gasket Material: Silicone - 50°C to +120°C
Internal Connection Technical Data
Data Transmission Rate max.1.5Mbps (with max. 6.6m spur line)
max. 12 Mbps (no spur lines)
Operating Temperature 0...55°C
Cable Diameter mm 4.5...8
Single conductor cross-section mm² 0.5...2.5
Type of Connection screw
This application specific product compliments Weidmuller’s range of standard Profibus DP and PA distributors, which include:
Profibus DP:
• Aluminum or Stainless Steel enclosures
• Cable gland or M12 connectors
• Terminator module for the end of line
• Wide range of connectors and cables
Profibus PA:
• Aluminum or Stainless Steel enclosures
• 1,2,4 & 8 way variants
• Options with built in OVP & current limiters
• Atex approved versions for hazardous areas
• Cable gland or M12 connectors
• Terminator module for the end of line
• Wide range of connectors and cables
