Surge protection devices in electrical distribution: A complete guide

Electrical surges pose a persistent and often underestimated threat to modern buildings. From data centres and commercial premises to new-build residential properties, the sensitive electronics that underpin everyday operations are vulnerable to transient overvoltages — brief but potentially devastating spikes in electrical energy. Surge Protection Devices (SPDs) are the primary line of defence against this risk, and recent changes to UK wiring regulations have made their installation a near-universal requirement. This guide covers the fundamentals of electrical surges, how SPDs work, the regulatory framework governing their use, and the key factors to consider when selecting and installing them.

What Is an Electrical Surge?

An electrical surge — also referred to as a transient overvoltage — is a fleeting burst of excess energy within an electrical system. While surges are typically brief in duration, their high voltage can cause significant and sometimes irreparable damage to connected equipment. Surges do not travel exclusively on power lines; they can also propagate through data lines and telephone lines, meaning that virtually any connected device in a building may be at risk.

There are two broad categories of surge: direct and indirect. A direct surge — most commonly associated with a lightning strike to the building or its lightning protection system — represents the worst-case scenario. The energy involved is far greater than that of an indirect surge, and without adequate protection the consequences can be catastrophic.

Indirect surges, by contrast, are considerably more common in practice. A lightning strike occurring as far as a mile away from a building can still induce a damaging surge that travels along power lines and enters the installation. Internal switching surges — generated by the switching of inductive loads such as motors or large HVAC systems — are smaller in magnitude but represent a constant, day-to-day threat to any sensitive electronics housed within the building.

What Are Surge Protection Devices and How Do They Work?

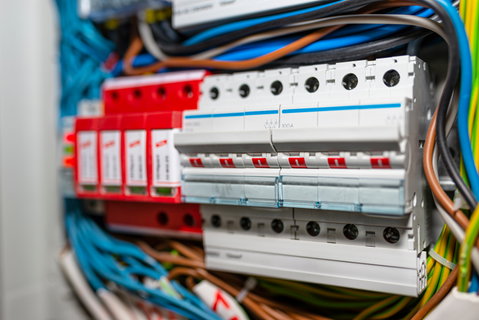

Surge Protection Devices are modular components designed to protect electrical installations against both external and internal transient overvoltages. They are typically DIN rail mounted and can be integrated into most types of distribution boards, occupying between one and three modules depending on the product and configuration. Some SPDs are available as standalone extension boxes fitted adjacent to the distribution board, while others are built directly into the board itself.

When a surge occurs, the SPD diverts the excess energy safely to earth, preventing it from reaching and damaging downstream equipment. Most SPDs include a visual status indicator that shows whether the device is functioning correctly or has reached end of life and requires replacement — an important feature given that an SPD's protective capability is consumed with each surge event it handles.

The most common type for residential and light commercial use is the Type 2 SPD, typically installed in the distribution board as close as possible to the incoming supply.

The Regulatory Framework: 18th Edition Wiring Regulations (2022 Update)

The 2022 amendment to the 18th Edition of the IET Wiring Regulations (BS 7671) significantly strengthened the requirements around surge protection, introducing three principal areas of change.

Regulation 443.4.1 — Mandatory SPD Installation

This regulation mandates SPD installation in all cases where a transient overvoltage could result in significant injury or loss of human life, or significant financial or data loss. For all other installations, protection against transient overvoltage must be provided unless the owner of the installation explicitly declares — in writing — that they accept the risk of damage and any consequential losses. This represents a significant shift from the previous position, where it was possible to simply risk-assess SPDs out of an installation without a formal declaration. The default position is now one of protection.

Regulation 443.6.2 — Overvoltage Categories (OVC)

This regulation defines the minimum impulse withstand voltage that electrical equipment must meet, based on where it is positioned within the electrical system. Equipment is classified into Overvoltage Categories (OVC) I through IV, each representing a different level of required robustness against transient overvoltage. The OVC rating for a given piece of equipment is typically specified by the manufacturer in the product datasheet. Understanding these categories is fundamental to selecting the correct level of surge protection for each part of an installation.

Regulation 534 — SPD Selection and Installation Requirements

Regulation 534 addresses the selection criteria for SPDs in detail, including the correct SPD type for different positions in the installation, coordination requirements where multiple SPDs are used, and considerations around cabling, overcurrent protection, and positioning relative to RCDs (Residual Current Devices).

SPD Types: Type 1, Type 2 and Type 3

SPDs are classified into three types, each suited to a different position in the electrical installation and offering a different level of protection.

• Type 1 SPDs are designed for use in buildings that have a lightning protection system. They are capable of handling the high-energy impulse currents associated with direct lightning strikes. Type 1 devices are also sometimes referred to as Class I or Class B SPDs. They should be installed at the main incoming point of the installation — ideally in the main distribution board. If the installation is within 50 metres of a lightning protection system, a Type 1 SPD is typically specified.

• Type 2 SPDs are recommended for installation in all distribution boards, whether or not a lightning protection system is present. They protect against indirect lightning strikes and internal switching surges. It is important to note that Type 2 SPDs are not designed to handle the full energy of a direct lightning strike — this is the role of the Type 1 device. For buildings situated more than 50 metres from a lightning protection system and without one on site, a Type 2 SPD at the distribution board will typically suffice. Type 2 is also sometimes referred to as Class II or Class C.

• Type 3 SPDs are used as supplementary protection for sensitive loads located more than 10 metres from the main SPD. They must always be installed in combination with a Type 1 or Type 2 device — they cannot function as standalone protection. Typical applications include IT equipment or other sensitive electronics in larger buildings where the cabling distance between the distribution board and the end device introduces additional vulnerability.

Key Technical Parameters: Understanding Up, Uimp and IMAX

When specifying and selecting SPDs, several technical parameters appear repeatedly in product datasheets and wiring regulation tables. Understanding what these mean in practice is essential for making the right selection.

Rated Impulse Voltage (Uimp)

Uimp — also called the rated impulse voltage — defines the maximum transient overvoltage that a piece of electrical equipment can safely tolerate without sustaining damage. Manufacturers specify this value in their product datasheets. The OVC table in the wiring regulations uses Uimp values to define the minimum withstand levels required for equipment at each point in the installation. Selecting an SPD with a voltage protection level (Up) that does not exceed the Uimp of the equipment being protected is the fundamental principle of SPD selection.

Voltage Protection Level (Up) and Installed Up

The voltage protection level (Up) — sometimes called the let-through voltage, maximum residual voltage, or voltage protection level — is the maximum voltage that may still reach the equipment after the SPD has operated during a surge event. The goal is to keep this value as low as possible, and always below the Uimp of the protected equipment. However, the effective installed Up voltage is influenced by the length of the cables connecting the SPD, since longer cables introduce additional inductance and therefore a higher voltage drop during the rapid current rise of a surge event. If the total cable length (accounting for both the line and earth conductors) is 500mm or less, the impact is negligible. Beyond this length — and up to a maximum of one metre — a correction factor must be applied when calculating the installed Up voltage. This is why the wiring regulations specify that SPD connecting leads should be kept as short and straight as possible.

IMAX and IIMP

IMAX is the maximum discharge current that a Type 2 SPD can safely handle in a real-world installation; it is a measure of the device's robustness against repeated surges. IIMP is the impulse current parameter used for Type 1 SPDs — it reflects the peak current the device can handle during a direct lightning strike. The higher the exposure risk, the more demanding the IIMP requirement. These values are critical when selecting a Type 1 SPD for installations adjacent to a lightning protection system.

Installation Considerations and Best Practices

Correct installation is as important as correct selection. Even a well-specified SPD will underperform if installation best practices are not followed.

Cable Length

As discussed above, SPD connecting cables should be kept as short and straight as possible — ideally with a combined length of 500mm or less, and no more than one metre. Loops and bends increase effective inductance and reduce the installed protection level.

Overcurrent Protection

SPDs must be protected by an upstream overcurrent protective device — either a circuit breaker or a fuse. This device protects the SPD from fault currents and ensures that the circuit is safely disconnected in the event of an SPD failure. It is important to note that an SPD is not itself an overcurrent device; in the event of a fault, the upstream protective device will trip to prevent fire or further damage.

Positioning Relative to RCDs

The relative positioning of SPDs and RCDs in the distribution board requires careful consideration. Incorrect positioning can result in nuisance tripping of the RCD during surge events, as the surge current passing through the SPD can be misinterpreted as a fault current. The SPD and RCD should be positioned to work together for maximum safety and reliability without unnecessary tripping.

Coordination Between Multiple SPDs

Where Type 1 and Type 2 SPDs — or Type 2 and Type 3 SPDs — are used together, coordination between the devices is essential. If SPDs from different manufacturers are mixed without verification, there is a risk that the wrong device activates first during a surge event. For example, if a Type 2 device activates before the Type 1 device during a high-energy direct surge, it may be exposed to a current far exceeding its rated capacity, significantly shortening its service life or causing failure. Using a single manufacturer's coordinated product range removes this risk, and most manufacturers publish coordination guides or schedules that specify which products work together. The recommendation to use one manufacturer is based on engineering principles, not commercial preference.

Earthing System and Pole Configuration

The number of poles required for an SPD depends on the earthing system. In TNC systems — where the neutral and earth are combined — a single-pole SPD may be sufficient for single-phase applications, or three poles for three-phase. In TNS systems — where neutral and earth are kept separate — the neutral conductor must also be protected, typically requiring a four-pole device for three-phase installations.

SPD Selection: A Practical Step-by-Step Approach

The process of selecting an appropriate SPD for a given installation can be broken down into a logical sequence:

• Identify the equipment to be protected and determine its OVC classification and corresponding Uimp rating from the wiring regulation tables or manufacturer datasheets.

• Determine the disconnector impedance based on the cable lengths between the SPD and the protected equipment — this affects the installed Up voltage.

• Select an SPD with a voltage protection level (Up) that, after accounting for cable impedance, remains below the Uimp of the protected equipment.

• Determine the correct SPD type (Type 1, 2 or 3) based on the presence of a lightning protection system and the position of the device within the installation.

• Confirm the correct pole configuration for the earthing system in use.

Frequently Asked Questions

Can an SPD be retrofitted to an existing distribution board?

In most cases, yes. SPDs can typically be added to existing boards, subject to available space for additional modules and compatibility with the board manufacturer's product range. Where space within the board is limited, a dedicated extension box or enclosure mounted adjacent to the board is an alternative option. The critical requirement in all cases is that the connecting cables are kept as short as possible.

How long does an SPD last?

SPD lifespan is not a fixed time period — it depends on the number and magnitude of surge events the device has had to handle. A device rated for a given discharge current could reach end of life after a single large surge or after many smaller ones. For this reason, the visual status indicator on the SPD should be checked periodically. More sophisticated devices are available with communications outputs that can connect to a BMS (Building Management System), providing remote monitoring and automatic notification when a surge has been detected or when the device requires replacement. Where a replaceable cartridge design is used, the cartridge can generally be swapped out safely, as the device incorporates a mechanism that prevents the circuit being re-energised with the cartridge absent.

Where exactly should an SPD be installed within the board?

The SPD should be installed as close as possible to the incoming supply device within the board. For an external extension box, the same principle applies — position it adjacent to the incoming device and keep all connecting cables as short and direct as possible.

Conclusion: SPDs as Part of a Holistic Protection Strategy

Surge Protection Devices are a critical component of any modern electrical installation, and the 2022 update to the 18th Edition Wiring Regulations has placed this principle on a clear statutory footing. However, it is important to recognise that SPDs are one element of a broader protection strategy. Correct earthing, appropriate overcurrent protection, proper RCD coordination, and careful attention to cable routing and device coordination are all essential for a system that is genuinely reliable and safe.

The guidance set out in BS 7671 reflects the accumulated evidence on how surges cause damage in practice, and following it carefully — from the initial risk assessment through to the final installation details — gives both installer and client the best possible assurance that their equipment and systems are protected.
