Busbar Systems: A Complete Guide to Busbar Trunking in Electrical Distribution

Reliable power underpins almost every sector of modern industry, from healthcare and data centres to manufacturing and oil and gas. As electrical loads grow and installations become more complex, the way we distribute power within a building or across a site has a direct impact on cost, safety, and future flexibility. Increasingly, busbar is central to that decision.

Busbar, and in particular busbar trunking systems, offers an engineered alternative to traditional cabling: a compact, modular, and adaptable means of moving power from source to load. This guide explains what busbar is, how it compares with cable, the standards that govern busbar systems, and the key components and design principles involved in specifying and installing one. Whether you are weighing up busbar vs cable for a new project or planning a future-proof electrical distribution network, the aim is to give contractors and specifiers a clear, practical reference.

What Is Busbar?

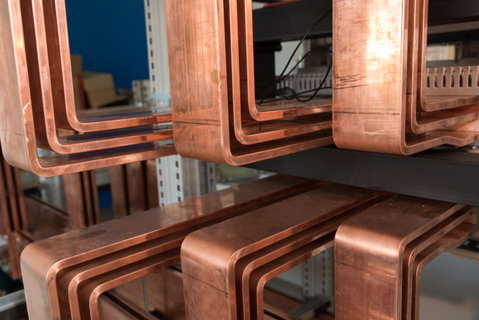

Busbar is an electrical distribution system built around solid conductors, typically copper or aluminium, encased in a steel or resin housing. The rating of a given busbar run and its intended environment determine the enclosure and its ingress protection. Available in ranges from around 25 amps up to 6,300 amps, busbar offers an alternative to running multiple cables to carry the same load.

Connections to the bar are made using tap-off units, which can house a range of protective and monitoring devices. These include fuses, modular MCBs and RCBOs, MCCBs, metering, and smart connections. Because these connection points can be added, moved, or upgraded, busbar lends itself well to installations that are likely to change over time.

There are two principal applications for busbar. Distribution busbar carries power from a central point, such as a switchboard, out to multiple outgoing connections using tap-off units. Feeder busbar, sometimes referred to as transport busbar, supplies a switchboard from a transformer, or provides interconnections between switchboards across a site; it has no tap-off points and simply connects one point to another. Between them, these two forms of busbar can provide an end-to-end distribution solution, and busbar systems are available in ratings from around 25 amps for lighting and low-power distribution up to 6,300 amps for heavy power transmission, including specialist architectures for EV charging and data centres and IP6X-rated bar for outdoor and harsh environments.

Copper or Aluminium?

Copper and aluminium are the two main conductor types. Classic copper busbar has higher conductivity, which allows for a physically smaller bar at a given rating. Aluminium busbar, which is being used increasingly, offers similar electrical performance but generally requires a larger profile because of its lower conductivity. As a result, a copper busbar rated at 4,000 amps will often be smaller than the aluminium equivalent at the same rating.

Aluminium does have a notable advantage in weight, being up to 40% lighter than copper, which makes installation easier and improves manoeuvrability in tight spaces or across large sites. Importantly, for any given specification the electrical performance of the busbar trunking is the same whether the conductor is copper or aluminium; that performance is dictated by compliance with the relevant standard rather than by conductor material alone.

The Standards That Govern Busbar

Busbar performance is defined by compliance with IEC 61439-6, which covers the construction of low-voltage busbar trunking systems, alongside IEC 61439-1, which sets out the general requirements for low-voltage switchgear and controlgear assemblies. Together they contribute to safety, continuity of service, and compliance with end-user requirements, and they address a broad set of factors that any compliant system must satisfy:

• Voltage stress withstand capacity and the current-carrying capacity of the busbar

• Short-circuit withstand strength

• Protection against electric shock

• Protection against fire or explosion hazards

• Maintenance and modification capability

• Electromagnetic compatibility

• Capability to operate the electrical installation

• Capability to be installed on site

• Protection of the assembly against environmental conditions

• Dielectric properties, impedance, ingress protection, and mechanical strength

Two ratings are particularly relevant when considering environmental conditions. The IK rating describes the mechanical strength of the busbar, that is, how well it withstands an impact, such as being struck by machinery. The IP rating describes protection against dust and water ingress. Most medium- to high-power busbars comply with IP55, meaning they are protected against dust and low-pressure water jets from any direction. For harsh environments such as marine or nuclear applications, an IP68 busbar is used; here the equipment is dust-tight and can withstand submersion in water for a defined period. IP68 performance is commonly achieved using cast resin busbars, which are pre-cast and then cast together at their joints on site.

Busbar and Fire Regulations

Fire performance is a significant consideration, and recent changes to fire regulations have brought it into sharper focus. Busbar fire performance breaks down into three areas: fire reaction, fire resistance, and circuit integrity.

• Fire reaction describes a material's tendency to spread fire. It considers flame spread, flaming droplets, the heat released, and smoke production, including its opacity and toxicity.

• Fire resistance describes how long the construction components maintain their mechanical and insulating properties during a thermal event, with the main risk being the spread of fire from one section of busbar to the next.

• Circuit integrity refers to whether the electrical circuit continues to operate during a fire or thermal event.

When sourcing busbar, a reputable supplier should be able to provide a solution that meets these requirements and the documentation to demonstrate it satisfies the fire reaction, fire resistance, and circuit integrity criteria. Standards in this area continue to evolve, so specifiers should confirm they are working to the most current requirements.

Busbar vs Cable: Why Choose Busbar?

Busbar can be used across every stage of electrical distribution, from connecting a transformer to the main switchboard, through switchboards to panel boards and distribution boards, up risers to supply multiple floors, and out to final distribution for lighting and small power. This end-to-end flexibility is one of its principal attractions, but there are several more specific advantages over a traditional cable installation.

For distribution busbar, contractors can achieve savings on materials such as cable trays and fixings, as well as on the labour associated with multiple cable runs. Because busbar trunking requires fewer fixings per metre than cable, installation time is reduced. Multiple tap-off outlets allow the system to accommodate changes in power requirements after the initial installation, and repositioning distribution outlets is straightforward. Busbar also offers proven, verified performance to recognised standards, a more aesthetically pleasing appearance in areas of high visibility such as retail outlets, and easy extendability through tap-off units.

Feeder busbar offers its own set of advantages. It provides greater mechanical strength over long runs with minimal fixings, replaces multiple cable runs and their supporting trays and clips, and requires less termination space within the switchboard. It includes verified short-circuit fault ratings, including at the joints, and takes up less overall space thanks to the bends and offsets that can be installed, where cable would require a larger bending radius to achieve a 90-degree turn. Further practical points in busbar’s favour include the fact that no cable jointer is required, since sections are simply bolted together; that trunking systems can be dismantled and reused elsewhere; that it offers better resistance to the spread of fire; and that voltage drop is, in the majority of cases, lower than for an equivalent cable arrangement.

Installation Time and Labour

Busbar is made up of modular components that support quick, plug-and-play installation, typically bolted or in some cases clipped together. Power is available as the installation is completed, it is straightforward to add loads to pre-assembled tap-off points later, and mechanical and electrical jointing is safer. Cable, by contrast, is more labour-intensive, requiring ladders and trays plus numerous steps such as cutting, sealing, connecting luminaires, and mounting sockets, with later modifications more complex. The difference in workforce can be significant: a busbar installation might be completed by two workers, where the equivalent cable run could require five or more people to run, joint, and clip the cable.

Comparative Investment and Space Saving

The cost picture depends heavily on the number of connection points. As a general rule, once the number of branching (connection) points exceeds six, it becomes more cost-effective in both equipment and labour to install a busbar solution than a cable network. For a 400-amp power solution, for example, busbar becomes more cost-effective over time, and the advantage grows on larger jobs.

The space savings can be considerable. A switchboard connected via busbar carrying a 1,600-amp load might occupy around four square metres, with a single one-metre output connected using a flange or interface panel. The cable alternative for the same load could require around sixteen square metres, with 36 output cables and a six-metre length. As the number of power connections increases, the busbar panel footprint stays comparatively small, and a flange and interface kit provides one central connection point for all connected circuits, reducing both the size of the switchboard and the cost of the switchgear it contains. The contrast is stark at higher ratings: a 4,000-amp busbar might replace the equivalent of 42 copper cables at 240 mm², occupying roughly a third of the space taken up by the cable trays and cabling.

Building a Distribution Network

In practice, busbar and cable are often used together to build the most effective distribution network for a project. A centralised network typically runs multiple cables from the main switchboard out to distribution or panel boards and then on to final loads such as machinery. This fixed arrangement makes future changes harder: moving a machine may require running and re-terminating a new cable.

A decentralised network changes this. The switchboard remains but is smaller, potentially around a third less in footprint. Busbar is interconnected from the transformer, often overhead, and rather than many cable runs, just two cables might feed two busbars running the length of a manufacturing plant, which in turn feed smaller busbars. This supports future-proofing, because tap-off units can be disconnected and relocated as machinery moves. It also removes the need for separate panel and distribution boards, since protective devices such as an MCCB or MCB can be fitted directly into the tap-off units, even for larger loads.

The Five Key Components of a Busbar Solution

A complete busbar installation is built from a set of standard component types. Understanding each helps in specifying and designing a system.

Feed units and end caps connect the busbar solution to the existing electrical network. They can bolt directly into a switchboard or be wired via cable from an upstream protective device; smaller units are typically cable-connected, while a busbar flange bolts directly onto the switchboard. These units must be protected by a suitably rated upstream device, whether an MCB, MCCB, RCD, or fuse.

Run components are the lengths of busbar that make up the bulk of the installation, with width and height varying by rating and type. Standard one, two, three, and five-metre lengths are available off the shelf, while engineered busbar can be produced in custom lengths and ratings to suit specific applications, from small lighting-and-power bar for warehouses through to medium- and high-power bar with tap-off units and cast resin (IP68) busbar for demanding environments and fire-barrier wall penetrations.

Direction changes are handled with fixed angle brackets and flexible joints that maintain a continuous run. As the rating increases, the number of flexible joints on the market reduces and installations move towards fixed joints, which is where engineered, custom-designed joints become more relevant.

Fixing systems secure the busbar after installation. Options include hanging from steel wire, strut, or all-thread, or bolting directly to a wall or ceiling, with dedicated brackets for wall-mounted runs and for rising busbar in risers and feeders.

Tap-off units, among the most important components, distribute power out to individual final loads. They bolt or clip directly onto the busbar at dedicated positions and range from simple fused or MCB units to larger units housing MCCBs or bolt-on distribution boards. In line with IEC 61439-6, they are arranged to be non-reversible, ensuring correct phase rotation, and are designed so that the protective circuit connects before the live conductors during installation and disconnects after them during removal, keeping the installer safe.

Architecture and Design Principles

Busbar is used in both horizontal and vertical designs. Horizontal installations provide a common connection point for multiple circuits, optimising space and allowing easy transformation and future-proofing. Vertical, or rising, busbar performs the same role within a riser, providing easy access to power without multiple cable installations. Given the space constraints in both new-build and existing risers, a single rising busbar solution can reduce cost and power loss while making the best use of limited space.

A further distinction is between closed-track and open-track busbar. Closed-track busbar is the most common form, with tap-offs fitted at fixed, predetermined locations along the bar. Open-track busbar allows tap-off units to be fitted anywhere along the run component, offering greater flexibility and future-proofing. Open-track systems are commonly found in data centre white space.

Busbar in Data Centres

Busbar plays an important role in data centre architecture. Information technology is changing constantly, and with a global boom in data centre construction, the demands placed on future server halls are difficult to predict. Using busbar effectively in the white space provides the flexibility to adapt.

Data centre installations require the power supply to be controlled and the busbar solution integrated with connected products as part of a proven design, and they must be upgradable and scalable. An open-track design provides flexibility for both first-time installation and later upgrades, allowing tap-off units to be added or relocated with limited downtime and cost. Servers are typically dual-fed, with a main and a backup supply, each often traced from a medium-voltage switch panel through a transformer and switchboard out to the white space busbar, allowing connections to be made with minimal interruption to servers that are already operating.

Busbar for EV Charging

Electric vehicle charging is another area seeing rapid growth in busbar use. Installing EV charging in a car park has traditionally carried a significant civils impact, from digging up ground to run cables to reconfiguring layouts to accommodate chargers. A centralised, cable-based approach might involve running around ten separate cables out of a switchboard, under the road, and out to individual charging bays.

A decentralised, busbar-fed approach reduces this dramatically. A single cable can be run under the road to feed an array of chargers via an overhead busbar, and in some cases the busbar can be fed directly from an adjacent building, removing the need for civils work altogether. The result is a faster, lower-cost installation with far less disruption.

Connectivity and Remote Monitoring

Connectivity and remote monitoring are increasingly central to electrical distribution, adding value through energy management, remote oversight of climate and thermal events, and alarms when something unusual occurs. Energy metering allows consumption to be tracked, supporting sustainability goals. Metering can sit inside the switchboard or within individual tap-off units, the latter allowing consumption to be broken down by final load, and can connect to a building management system (BMS) to analyse energy consumption and power quality across the network.

Remote monitoring also covers ambient temperature and the early detection of thermal events. Thermal sensors fitted inside switchgear can identify a temperature rise, potentially caused by a fault, and trigger an alarm, allowing the busbar or a final load to be safely isolated before a thermal event develops. Connected to a BMS, these sensors provide pre-alerts and alarms, enabling a proactive rather than reactive approach. A modern BMS can bring together energy, water, and gas metering alongside sensor data, connected through Ethernet, Wi-Fi, Modbus, analogue and digital I/O, and wireless devices, for a complete view of the connected system.

Planning for the Future and Sustainability

One of busbar's defining strengths is that it is inherently future-proofed. Installations are ready to be extended, and tap-offs can be added at later dates. This has clear sustainability benefits.

• Reusability: run components, feed units, and tap-offs disconnect easily, so they can be redeployed on another installation or relocated within the same facility if layouts change.

• Expandability: new compatible parts are easily added to an existing run after removing the end caps, often mixing older and newer busbar.

• Tap-off flexibility: depending on the bar’s size and rating, tap-off units can reach high amperages, expanding the network onto other busbars, machines, or final loads with minimal work.

• Recyclability: busbar components are typically around 90 to 95% recyclable across suppliers.

Busbar also comes with product environmental profiles, sometimes called product environmental passports, which detail the materials within an installation and its carbon footprint across purchase, installation, and use. This level of environmental transparency is not easily obtained with cable, and is becoming an increasingly important part of specification decisions.

Conclusion

Busbar has evolved from a niche alternative into a mainstream choice for electrical distribution across a wide range of sectors. Its modular, engineered nature delivers faster installation, reduced labour, significant space savings, and a level of flexibility that traditional cabling struggles to match. Combined with strong fire and safety performance, built-in connectivity and monitoring, and clear sustainability credentials, it offers a compelling case wherever reliable, adaptable power distribution is required. For contractors and specifiers weighing up cable against busbar, the decision increasingly comes down to the number of connection points, the likelihood of future change, and the value placed on a system that can be reconfigured, extended, and reused over its lifetime.
