Architects and specifiers will appreciate the aesthetically pleasing finish of Onix, a new range of floor boxes and power grommets for installation in hard floor surfaces such as stone, marble, wood or ceramic tiles which has been launched by Ackermann:
To be used in conjunction with Ackermann’s screed trunking systems, these new products are designed for use in high profile public areas such as airports, shopping malls, HQ reception areas, and hotel foyers. The Onix range also includes floor boxes which are sealed against water ingress and can be used in areas where the floors are wet washed.
The range includes Onix square floor boxes, which have a recessed lid to accommodate whichever floor finish is used. The lid requires a floor tile lifter to gain access, making them ideal for use in areas where some security against unauthorised access to power and data services is needed.
Three versions:
Three versions of these square floor boxes are available - the first has no cord outlet, it being used to allow access to junction boxes and cabling, or to cover services not in use; the second has a cord outlet on the edge of the tile to allow access to power and data services. It is suitable for wooden floors but not for areas washed down with water. The last in this series has a unique central cord outlet design that allows access to power and data services even in 'wet wash' environments.

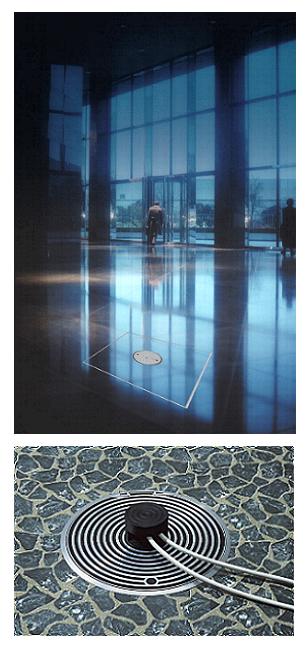

The central cord outlet design is used in the Onix round metal floor box. Manufactured in aluminium, this floor box has a lid with a ribbed finish that provides a strong, wear-resistant, slip-proof surface. With the cable outlet in the down position the unit is completely sealed against water ingress, thus allowing the floor to be mopped or hosed down.
The product is tested to withstand the floor being covered in water to a depth of 10mm. When the cable outlet is in use it is safe to mop the floor, but not to use water jets.
The new power grommets included in the Onix range can be used with any floor covering - including marble, wood and carpet, and are available with standard finishes of either nickel or antiquated brass - chrome and antiquated coppers are available on request. Switched and unswitched 13A socket outlet versions are available.
Ackermann Ltd.,
(Novar IBS)
Michigan Drive, Tongwell, Milton Keynes MK15 8HQ
Tel: 01908 611780
Fax: 01908 618066
Web: www.ackermann.co.uk
