Distribution Boards & Devices

As part of the Siemens family Wylex benefits from the Siemens global manufacturing network by sourcing circuit protection devices ‘in house’ meaning you can be sure of the quality and the performance of the product

Wylex

Distribution Boards & Devices

Published: 17 February 2025 · Category: Product Catalogues & Brochures

As part of the Siemens family Wylex benefits from the Siemens global manufacturing network by sourcing circuit protection devices ‘in house’ meaning you can be sure of the quality and the performance of the product

From this document

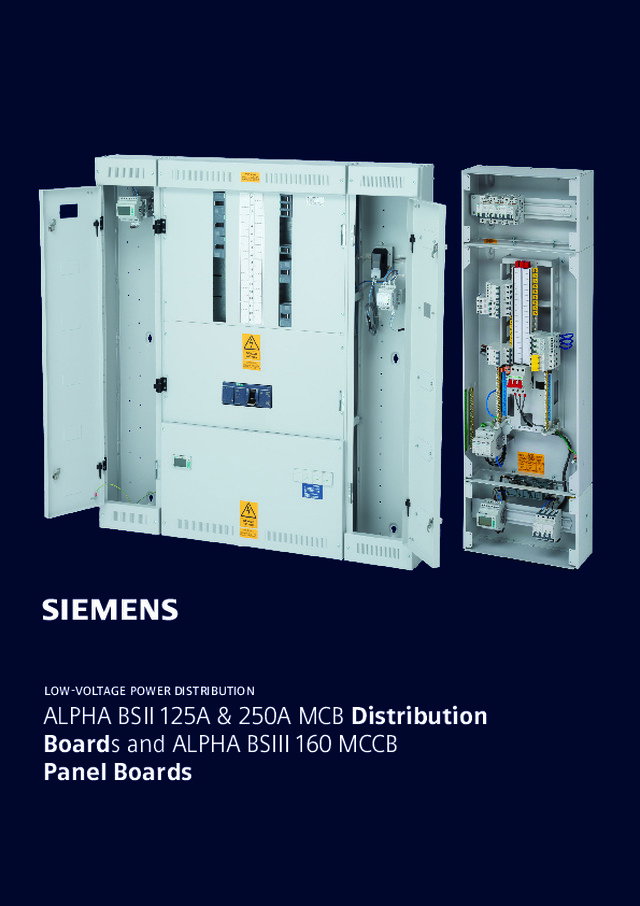

LOW-VOLTAGE POWER DISTRIBUTION ALPHA BSII 125A & 250A MCB Distribution Boards and ALPHA BSIII 160 MCCB Panel Boards Safe and Intelligent power distribution ALPHA BSII. Totally Integrated Power Distribution. Features • Designed and manufactured in the UK • Type tested and certified in the UK in our ASTA approved laboratories • Fully supported by our UK based technical services team • Modular construction • 1mm sheet steel enclosure painted in RAL 7035 light grey • Degree of protection: IP3X • 10kA for 0.1 second short circuit rating • Utilises 5SL & 5SY MCB, 5SU RCBO, and 5SV AFDD technologies Sivacon S4 Switchboard. 800A to 3200A. 2 ALPHA BSII Distribution Boards from 125A to 250A Alpha BSIII Panel Boards 250A to 800A 3 Specification Highlights 125A Extension enclosures for DIN devices Modular construction Accepts MCBs up to 80A–250A DBs only Accommodates 1 module wide 10kA miniature AFDDs RCBOs with extra-long neutral lead Fully type tested to IEC/BS EN 61439-3 Integral Type 2 surge protection kits Integral & Add-on meter options. Standard or MID Removable gland plates for top and bottom cable entry exit 4 Specification Highlights 250A Suitable Applications • Offices • Tall Buildings • Hotels • Campuses • Entertainment and Leisure • Healthcare • Mixed-use developments 5 Featured Product Miniature 10kA AFDD/RCBO conforms to BS EN 62606 • Full 10kA short circuit rating • Single module 'miniature' MCB sized device • 6A to 32A overload ratings • B and C tripping characteristic...

Open the PDF
