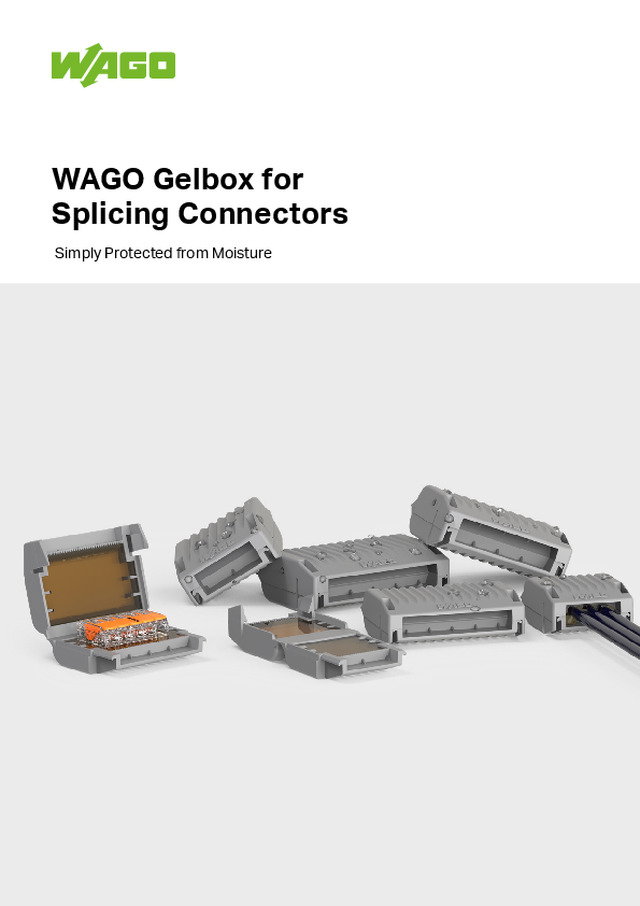

WAGO Gelbox for Splicing Connectors
Wago

WAGO Gelbox for Splicing Connectors

Installation and Advantages

Wago

WAGO Gelbox for Splicing Connectors

Published: 9 July 2021 · Category: Product Catalogues & Brochures

Installation and Advantages

From this document

WAGO Gelbox for Splicing Connectors Simply Protected from Moisture Installation and Advantages 2 Easy Installation Fast Installation ▪ Space-saving, compact design ▪ Gain even more junction box space because several connectors can be used in one Gelbox ▪ Easy to use through innovative design ▪ Readily extend circuits – thanks to fast re-accessibility ▪ Time-saving thanks to direct commissioning, no mixing and hardening of gel mass is necessary ▪ Always ready for use thanks to gel-filled boxes that can be stored indefinitely Open the Gelbox at the side latches. Place the wired connector in the Gelbox. Close the Gelbox. Simply extend circuits: Open the Gelbox, remove gel from the connector, open the connector and connect new components to the cable. Safe Applications Versatile Applications ▪ Complete system consisting of Gelbox and WAGO 221/2273 Series Connectors has been VDE-tested and IPX8-certified ▪ Excellent protection when Gelbox is only combined with 221/2273 Series Connectors; always the perfect gel displacement for safe installation ▪ IPX8 level of protection against moisture and water ingress ▪ Label-free Cellpack quality gel ▪ Stability thanks to a robust housing ▪ No conductor damage thanks to the flexible sealing lip ▪ Can be used in all branches of industry due to silicone-free gel ▪ Can be used in the low-voltage range with additional housing (double insulation) Compact housing VDE tested Suitable for indefinite storage IPX8 Robust housing Silicone-free gel...

Open the PDF
