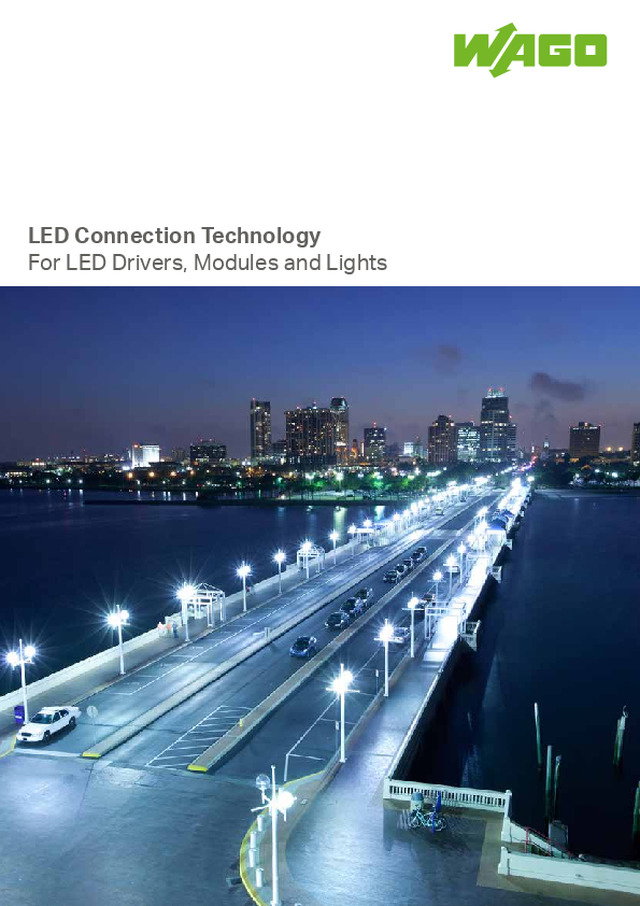

LED Connection Technology

Wago

LED Connection Technology

Published: 9 July 2021 · Category: Product Catalogues & Brochures

From this document

LED Connection Technology For LED Drivers, Modules and Lights SMD PCB TERMINAL BLOCKS for LED Modules and Drivers 2059 Series – For the Smallest Sizes 2065 Series – Reduced to the Essentials • Conductor range: 26 … 20 AWG (0.14 … 0.5 mm2)*, solid • Low profile of just 2.7 mm minimizes shadowing • Push-in termination of solid conductors • Easy conductor removal via operating tool • Side-by-side assembly without pole loss • Conductor range: 0.2 … 0.75 mm² (24 … 18 AWG) • Maximum conductor size, minimum installation space • Compact design minimizes on-board LED shadowing • A reliable alternative to wire soldering • Push-in termination of solid conductors • Easily terminate/remove all conductor types via operating tool 2060 Series – For Manual and Automated Wiring Systems • Conductor range: 0.2 … 0.75 mm2 (24 … 18 AWG) • Low profile of just 4.5 mm minimizes shadowing • Push-in termination of solid conductors • Push-buttons simplify insertion/removal of all conductor types • Board-to-board links simplify in-line connection of LED modules • Side-by-side assembly without pole loss • Ideal for automated wiring systems 2061 Series – For Direct Power System Feed-In • Conductor range: 0.5 … 1.5 mm2 (20 … 16 AWG) • Push-in termination of solid conductors • Push-buttons simplify insertion/removal of all conductor types • Ideal for automated wiring systems • Side-by-side assembly without pole loss www.wago.com/SMD *0.5 mm² / 20 AWG “sol”: Please observe the usage and installation notes...
