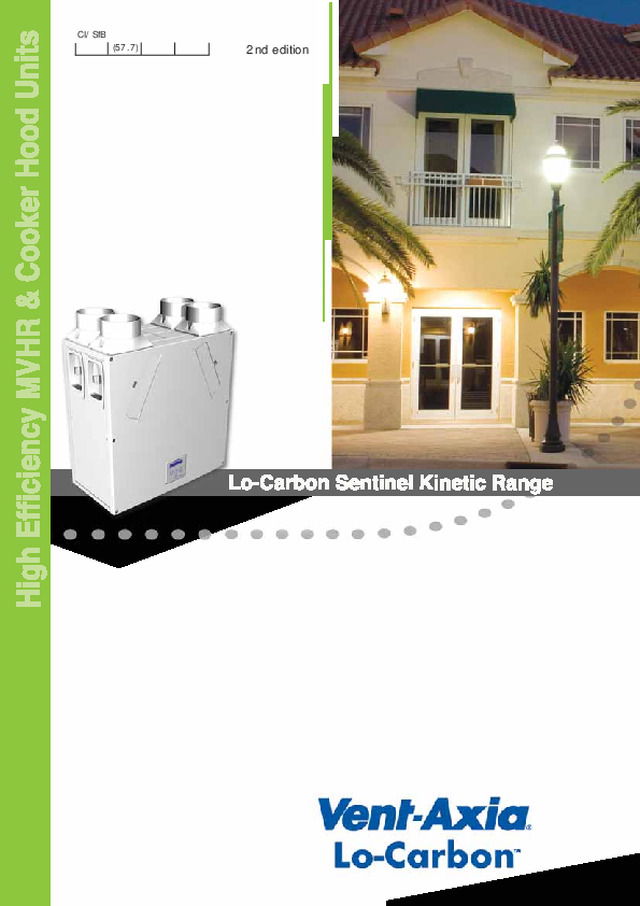

Vent-Axia - Lo-Carbon Sentinel Kinetic Range

(57.7) CI/SfB 2nd edition

VENT-AXIA CONTACT NUMBERS Free technical, installation and sales advice is available Sales Centre: Domestic & Commercial  Sales Tel: 0844 856 0590 Sales Fax: 01293 565169 Tech Support Tel:   0844 856 0594 Tech Support Fax:  01293 539209 Industrial Sales Tel: 0844 856 0591 Sales Fax:  01293 534898 Tech Support Tel:   0844 856 0595 Tech Support Fax:  01293 455197 Web: www.vent-axia.com Email:  [email protected] Supply & Service A ll sales made by Vent-Axia Limited are made only upon the terms of the Company's Conditions of Sale, a copy of whichmay be obtained on request. As part of the policy of continuous product improvement Vent-Axia reserves the rightto alter specifications without notice. By Appointment to H.M. The Queen Suppliers of Unit Ventilation Equipment Vent-Axia, Crawley, West Sussex 402240/2011

Vent-Axia Sentinel ® Kinetic Range Mechanical Ventilation with Heat Recovery Lo-Carbon Energy saving Ventilation solutions  The Sentinel Kinetic Range incorporates:A wholehouse heat recovery system with up to 92% energy efficiency. An easily accessible heat recovery cube protected bytwo removable EU3 filters. Two Lo-Carbon Energy Saving EC DCfans ensure long life (typically over double the life of AC motors)and lowest possible energy use. Fully insulated construction withbuilt in condensation drain. Specifically designed for new buildconstructions with a high level of insulation. Lo-Carbon Sentinel Kinetic  meets the latest requirements of the Building Regulations Document F 2010 for wholehouse system ventilation: System 4. Continuous mechanical supply and extract withheat recovery. The Lo-Carbon Sentinel Kinetic models have 3 fullyadjustable speeds and a purge setting - maximum. On the front ofthe unit is a digital controller that can be used to pre-set the speedsto any required air-flow within the performance range.  Integral Humidity sensor The integral humidity sensor increases speed in proportion torelative humidity levels, saving energy and reducing noise.The sensor also reacts to small but rapid increases in humidity, even ifthe normal trigger threshold is not reached. This unique featureensures adequate ventilation, even for the smallest wet-room.Night time relative humidity setback feature suppresses nuisancetripping as humidity gradually increases with falling temperature.Acoustically lined - low noise levels from only 20dB(A) @3m Model Stock Ref Kinetic V (non-summer bypass) 438342 Kinetic B (with summer bypass) 438222 Kinetic BH (with summer bypass & humidity sensor) 443319  Kinetic CW L (with white Cooker Hood)  441483 Kinetic CS L (with Brushed Aluminium Cooker Hood) 441484 Kinetic CW R (with white Cooker Hood) 441485 Kinetic CS R (with Brushed Aluminium Cooker Hood) 441486 Kinetic Plus BH (with Summer bypass and humidity sensor) 443028 Optional Controls Wired Remote Controller with 15 metre cable 443283 Wireless enable kit (includes one switch) 441865 Additional wireless switch (max 3 switches) 437827 Vent-Wise Controller (also requires sensors) 441780 Optional F5 supply filters Kinetic V 444199 Kinetic B, BH & Cooker Hoods 444200 Kinetic Plus range 444201 1 Sentinel Kinetic Range

2 Multiple control options: Five Volt-free pairs of switch terminals for sensor inputs allow boosting from a full range of Vent-Axia controllers –humidistats, PIR, timers. Two terminals with 0-24V outputs allow 0V to 10V proportionalcontrol by sophisticated controllers such as CO 2 sensors and  proportional humidistats. The optional Vent-Wise controller senses temperature rise in abath/shower hot water supply and/or current in a cooker/hobelectrical circuit to activate boost, ensuring additional ventilation when needed. Switched-live for boosting via light switches (220-240 V AC) ormanual Normal/Boost switches. This connection has the advantage of Delay-On and Delay-Off facility. Delay-On enables you to prevent the Boost airflow between 0 and10 minutes, after a light switch has been activated.Delay-Off allows the Boost airflow to continue after a light switchis turned off to ensure effective clearance of humidity. This timer isadjustable between 0 and 25 minutes. Purge setting: The unit can be set to maximum flow (100%) bypressing and holding the Boost button on the unit itself or optionalwireless controller for 5 seconds. Purge willcontinue for two hours unless cancelled by pressing the Boost button again. Summer Bypass  An internal damper is activated when the outside temperature isless than the room temperature. The damper opens allowingcooler fresh air to bypass the Heat Recovery Cell and reduce theinternal temperature towards the pre-set ‘Comfort Temperature’.When the inside air temperature reaches the pre set ‘Comfort temperature’ the bypass damper closes.Anti-frost protection: In cold climates there is a possibility of frostbuilding up on the intake side of the heat exchanger. In order toprevent damage, the Kinetic reduces supply flow while maintaining extract flow at temperatures below 0 O C. Cooker Hood System range System canopy hoods are a motorless hood with extract being provided by the MVHR unit. When the boost button on the canopyis activated, the MVHR unit goes to boost setting and the summerbypass opens preventing cooking by-products entering the heatexchanger cell. Wired Remote Controller (option) Supplied with 15 metres of cable (max length), the Wired RemoteController duplicates all the features of the on-board control panel,allowing commissioning, diagnosis and user control. Flush mounting, suitable for a single gang patrass box 16mm deep. Features and Benefits • Manufactured in the UK• Building Regulations Part F compliant• SAP Appendix Q Eligible• Energy Savings Trust best practice compliant• Up to 92% heat recovery whilst controlling condensation• Programmable Summer bypass• Left or right hand installation• Horizontal and/or vertical duct outlets• Integrated digital controller for simple and accurate  commissioning • Light-weight for easy installation• External condensate connection• Plug and play controls; Humidistat, Vent-Wise, Wireless remote• BMS connectivity• LS inputs/(Light Switch)• Volt-free inputs• Self diagnosis for simplified fault finding• Adjustable delay on/delay off timer

Supply to dwelling From  atmosphere Extract  from dwelling To  atmosphere Supply to dwelling From  atmosphere Extract  from dwelling To  atmosphere Performance LH RH(supplied) Sound Data Octave band, Hz, dB SWL SPL Flow, l/s Test mode 63 125 250 500 1K 2K 4K 8K dBA@ 3m 10 Supply 47.8 40.2 38.0 31.1 28.2 22.1 23.6 30.9 21.4 Extract 47.0 38.7 36.0 29.9 25.0 22.4 23.3 30.8 20.6 Breakout 43.6 36.2 37.4 30.9 27.4 23.3 24.2 31.4 18.6 20 Supply 54.0 46.6 50.2 44.5 44.4 38.3 28.8 31.9 31.2 Extract 46.8 40.5 34.6 34.2 34.6 25.9 23.7 30.3 22.9 Breakout 45.9 39.9 40.6 35.7 33.5 28.4 25.3 31.2 21.3 30 Supply 58.1 54.5 57.6 52.2 51.7 47.6 38.6 35.8 38.5 Extract 47.6 46.2 38.7 41.3 42.8 33.9 26.4 30.5 28.4 Breakout 45.2 42.4 48.2 40.8 37.7 35.2 30.0 31.1 25.2 40 Supply 65.2 58.4 62.3 58.0 56.5 52.5 44.1 41.4 43.6 Extract 53.5 53.0 44.0 47.7 48.1 39.7 31.5 31.5 33.5 Breakout 50.9 47.6 47.4 48.1 42.5 40.8 36.3 34.4 29.3 50 Supply 66.4 63.2 66.3 62.5 61.7 57.4 50.0 47.8 48.3 Extract 64.2 55.2 48.0 50.9 52.1 44.5 35.9 35.0 37.2 Breakout 55.0 51.0 51.3 51.6 46.9 46.0 42.0 38.3 33.2 Tested according to BS848.  Breakout quoted spherical, Supply and Extract quoted hemispherical. Fan speeds are fully adjustable within the performance range 3 0 50 100 150 200 250 300 350 400 450 0 15 30 45 60 75 0 50 100 150 200 250 100% 80% 60% 40% 20% 49 26 12 89 118 54 18 25 38 97 75 Volume l/s        m 3 /hr        Static P ressure (P a) 0 50 100 150 200 250 300 350 400 450 0 Volume l/s        15 30 45  60 75 90 53 96 27 13 13 20 30 44 58 128 82 107 100% 80% 60% 40% 20% 0 m 3 /hr        50 100 150 200 250 300 Static P ressure (P a) Example system curves - vertical spigots Example system curves -    horizontal spigots xx wattage (both motors) Vent-Axia Sentinel ® Kinetic  compact & Cooker Hood MVHR xx wattage (both motors)

Easy Installation The Sentinel Kinetic models can be mounted vertically in a roof space, and are suitable forwall mounting or within a kitchen cupboard. Whenmounted in an unheated area ducting should be insulated. Ducting can be attached to the unit horizonally, vertically or both. Minimum internal depthof kitchen cupboard: V&B models 290mm. CW models 300mm V&B Models LLeefftt  oorr  rriig ghhtt  hha annd d  iinnsstta alllla attiioonn. The unit is supplied with duct spigots to outside on the right hand side. Thesecan be reversed onsite by simply removing the controlpanel, rotating the unit 180 degrees and re-attachingthe control panel.  H Hoorriizzoonntta all  a annd d  vveerrttiicca all  ssp piig goottss:: The combination of spigot options allows installation in confined locations.If vertical and horizontal connection is required on the same outlet/inlet, additional spigots can be supplied. Condensate drain can be taken out through the back,or bottom of the unit. Using the fittings supplied,the final condensate connection is made outside theunit and can be completed after installation.  Cooker Hood Unit The Sentinel Kinetic Cooker Hood is designed to fit ina 600mm aperture above a hob. The telescopic hood incorporates two flat removable metal grease filters,low energy light bulbs and is  available with White orBrushed Aluminium front trim.The hood contains an integral fire damper in accordance with BRE Digest 398 and is connected tothe heat recovery unit by a galvanised steel duct withaccess for cleaning. When the hood is opened, theheat recovery unit goes to boost speed and the summer bypass automatically opens to prevent cookingby-products entering the heat recovery cell. As an additional safety feature, the duct alsocontains a thermal cut-out fuse which turns off the MVHRunit in the event of excessive temperature in the airway.Cooker Hood units cannot be handed on-site and mustbe purchased as left hand or right hand models. 4 Dimensions (mm)With and without Cooker Hood Compact V, B and C models SAP Appendix Q Performance SSp peecciiffiicc  FFa ann   TThheerrm ma all   PPoow weerr  ((W W/ /ll/ /ss)) EEffffiicciieennccyy K+1 0.72 92% K+2 0.74 91% K+3 0.81 90% K+4 0.93 88% K+5 1.07 87% G  H  A  B  E  C  D  Weight : V&B 15kg: C 27kg Minimum clearance from the bottom of the unit to the top of the hob must be:Gas: 750mmElectric: 650mm F Features and Benefits •  SAP Appendix Q eligible• Ultra quiet• Light-weight for easier installation (V&B models 15kg)• Horizontal duct option for space-saving installations• V&B models fit within a 290mm deep kitchen cupboard• Cooker Hood models fit within a 600mm wide aperture  (300mm deep) • Integrated digital controller for simple and accurate  commissioning • Plug and play controls; Humidistat, Vent-Wise, Wireless remote• BMS connectivity• LS inputs/(Light Switch)• Volt-free inputs• Self diagnosis for simplified fault finding• Adjustable delay on/delay off timer A B C D E F G H J 590 710 295 316 598 90 140 360 125 K L M G J H 550 550 285 140 125 360 Dimensions (mm) Kinetic V&B Kinetic CookerHood SAP Appendix Q Performance J  Ø L  K M

Vent-Axia Sentinel ® Kinetic Plus Technical Features 5 Performance Fan speeds are fully adjustable within the performance range Horizontal and Vertical Spigots Sound Data Octave band, Hz, dB SWL SPL dB(A) Flow, l/s Unit setting (%) Test mode 63 125 250 500 1k 2k 4k 8k at 3m 50 20% Supply 46.5 54.3 46.4 44.8 36.2 28.5 24.5 31.2 28.5 Extract 46.0 52.2 42.3 38.7 27.6 24.2 24.0 31.7 25.0 Breakout 48.5 42.6 43.3 38.9 35.8 29.3 23.8 30.7 22.8 78 40% Supply 50.3 59.1 54.5 56.5 47.0 39.9 26.3 31.7 38.0 Extract 46.8 51.6 47.8 44.4 32.7 27.4 24.4 31.7 28.0 Breakout 48.4 51.2 53.4 46.0 41.0 34.6 25.0 30.3 28.5 104 60% Supply 52.4 57.2 60.4 60.9 55.8 50.3 33.1 33.9 43.6 Extract 50.0 49.8 56.8 52.4 40.2 35.9 33.4 39.8 35.2 Breakout 55.0 49.6 59.7 54.5 46.9 39.9 33.6 39.2 34.9 127 80% Supply 54.9 60.7 67.4 66.6 61.8 56.0 39.6 37.7 49.5 Extract 50.4 52.0 61.2 56.6 45.1 39.6 34.2 40.2 39.1 Breakout 53.5 53.4 60.8 59.1 53.0 45.3 36.0 40.1 38.7 137 100% Supply 54.7 61.7 70.5 69.9 62.7 57.5 42.1 38.3 52.0 Extract 54.4 55.1 65.8 57.5 46.9 40.6 33.7 40.0 41.8 Breakout 56.6 54.6 60.5 60.7 54.7 45.9 36.5 39.6 40.0 Tested according to BS848.  Breakout quoted spherical, Supply and Extract quoted hemispherical.  Volume  l/s  0  14 28 42 56 70  84 97 112  125  139  m 3 /hr 0  50  100 150 200 250  300 350  400 450 500 700 600 500 400 300 200 100 0 Static P ressure (P a) Example system curves x    wattage (both motors) 21 42 83 140 173 147 86 33w 19w

Increased Performance The Kinetic Plus benefits from the latest high efficiency,backward curved impeller design, ensuring the lowestpossible energy consumption, ultra quiet operation andan exceptional performance range covering small onebed apartments to the largest of houses. Care Homes and Student Accommodation The Kinetic Plus is ideal for larger homes and multipleoccupancy units such as nursing homes and studentaccommodation. Capable of 400m 3 /hr at 150Pa, the unit can extract from up to ten bathrooms and acommunal kitchen while still achieving almost 90% heatrecovery. The fully automatic capability of the Kineticrange means that adequate ventilation is always achieved. The Kinetic’s BMS capability is also ideal for these commercial applications where landlords or property managers want to monitor and optimise building performance and maintenance. The Kinetic BMS can provide status information and it’s self diagnosticscan report if any fault is found. Spigot Options In addition to horizontal and vertical spigot positions,the Kinetic Plus has 150mm spigot connections as standard with the option of 180mm or 200mmspigot connections. In installations where very high airflows are expected, the larger spigots can reduceresistance, lowering noise and energy consumption. 180mm/200mm spigots can also simplify connectionin commercial installations where larger diameter ductwork has been used. Quick Change filter As many systems are placed within cupboards theunique filter design folds as you remove it to ensureeasy access in restricted spaces. 6 A D B C SAP Appendix Q Performance SSp peecciiffiicc  FFa ann   TTeem mp peerra attuurree PPoow weerr  ((W W/ /ll/ /ss)) EEffffiicciieennccyy  % % K+1 0.56 92% K+2 0.49 92% K+3 0.52 91% K+4 0.57 90% K+5 0.62 90% K+6 0.70 89% K+7 0.80 89% Features and Benefits •  SAP Appendix Q eligible• Ultra quiet• Horizontal duct option for space-saving installations•  High airflow and ideal for student accommodation clusters • Unique folding filter for removal when access is restricted• Integrated digital controller for simple and accurate  commissioning • Light-weight for easy installation • Plug and play controls; Humidistat, Vent-Wise, Wireless remote• BMS connectivity• LS inputs/(Light Switch)• Volt-free inputs• Self diagnosis for simplified fault finding• Adjustable delay on/delay off timer Dimensions (mm) A B C D Ø F G 785 632 722 526 150 520 275  Dimensions (mm) Kinetic Plus F G Ø
