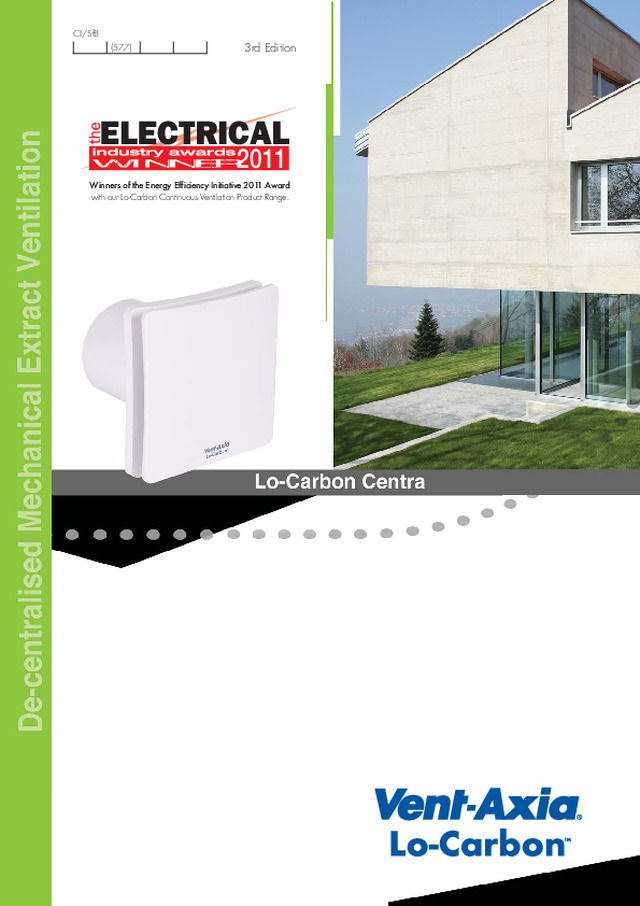

Vent-Axia - Lo-Carbon Centra

3rd Edition (57.7) CI/SfB WINNER 2011 Winners of the Energy Efficiency Initiative 2011 Award  with our Lo-Carbon Continuous Ventilation Product Range.

 T:     0844 856 0590 Lo-Carbon Centra  Allowing you to help the environment by reducing your carbon footprint Features & Benefits Part F compliant, System 3 Continuous mechanical extract.SAP Appendix Q eligible - Low SFP on SAP Q.Quietest dMEV available.Discreet, tasteful styling.Single fan for use in all applications. IPX4 rated - IPX7 rated (SELV)Constant volume option.Normal and Boost speeds.Lo-Carbon motor offering 90% energy savings and long life.5 Year Motor GuaranteeSuitable for wall, ceiling, panel  and window mounting.SELV Models - Supplied with a remote transformer.SELV Models Suitable for ‘Zone 1’ installation What is de-centralised MEV (dMEV) The Building Regulations Part F gives examples of four main methods of ventilation, System 3, Continuous mechanical extract ventilation can be achieved using a single centralised extract unit such as the Sentinel Multivent ducted to ‘wet’ rooms (kitchen, bathroom, en-suite and WC) or by decentralised individual fans in the ‘wet’ rooms. The fans run continuously at near silent levels providing a simple and effective form of ventilation. SELV (Safety Extra Low Voltage is designed for areas where a fan can be installed within Zone 1 in a room where there is a fixed bath or shower. Ingress Protected (IP) to IPX7 Lo-Carbon Centra SELV can be fitted safely within the spray area. The separate transformer can be mounted away from the spray zone and out of reach from the bath or shower. The Lo-Carbon Centra meets the latest requirements of the Building Regulations Document F 2010 for wholehouse system ventilation. Selection of the two normal flow rates (6l/s or  9l/s) is via a simple  ‘jumper’ on the control board. Different methods are available for operating boost speed from a simple switched live to integral humidistat or CO 2  sensor. See individual models for  further details. The attractive and discreet styling of the Vent-Axia Lo-Carbon Centra will complement the décor of any new home while virtually silent operation ensures optimum ventilation is achieved without intrusive noise. Lo-Carbon Centra The SAP Appendix Q eligible Lo-Carbon Centra has a specific fan power of only 0.18 w/l/s in through-the-wall kitchen applications. Models Lo-Carbon CentraOptional Constant Volume. The integral digital air velocity sensor will monitor the airflow and maintain the preset extract flow rate of either 6l/s, 9l/s or 15l/s, minimising energy use and noise.Stock Ref  441782     Lo-Carbon Centra/SELV T (Timer)Ideal for bathroom and toilet applications, this unit runs continuously on trickle setting and may be boosted by the switched live input which activates the timer (adjustable up to 30 minutes).Model Stock  Ref  T  442954   SELV T  443175 Lo-Carbon Centra/SELV TP (Timer/Pullcord)For bathroom/toilet applications, the continuous running TP model is boosted by the pullcord or by a switched live input which activates the timer (adjustable up to 30 minutes).Model Stock  Ref  TP  447127 SELV TP    447128   Lo-Carbon Centra/SELV HT(Humidistat/Timer)For bathroom/toilet applications, the continuous running HT model is automatically boosted by the built-in humidistat or by a switched live input which activates the timer (adjustable up to 30 minutes).Model   Stock Ref HT   442955 SELV HT   443176   Lo-Carbon Centra/SELV HTP (Humidistat/Pullcord)For bathroom/toilet applications, the continuous running HTP model is automatically boosted by the built-in humidistat or by the pullcord which activates the timer (adjustable up to 30 minutes).Model Stock  Ref  HTP  443045 SELV HTP    443177   Lo-Carbon Centra CO 2  and Humidity Continuous running, automatically boosted with integral CO 2  and humidistat sensor. Stock Ref  444672    150mm Conversion Kit   Stock Ref       443334

Lo-Carbon Energy saving ventilation solutions Developers choice The Vent-Axia Centra has adjustable ‘Normal’ running speeds making it  suitable for continuous extract in kitchens, bathrooms, en-suites and utility  areas. This means the developer requires only one fan type for any dwelling. The 100mm spigot is common with traditional intermittent extract fans,  simplifying the specification process. Safety first – IPX4 rated for installation in bathrooms. Flow rates are safe with  open flued appliances. Switched Live input allows the fan to be boosted by a range of Vent-Axia  switches and sensors, or a single light switch. Installers choice One fan for all residential applications means a simplified stock profile  and repeatable common installations. 6l/s or 9 l/s for normal speed and          15 l/s on boost. Selection of the two normal flow rates is via a simple ‘jumper’ on the control  board. Can be installed with Vent-Axia range of 110 x 54 flat ducting, 100mm  circular or flexible duct and accessories for internal room applications. Carbon Benefits in SAP The new Centra extract fan from Vent-Axia incorporates our latest Lo-Carbon motor and control technology  delivering the lowest specific fan powers available for a SAP appendix Q Eligible dMEV system. Applying  dMEV in SAP and using the SFP listed, significant reductions in dwelling emission rates are achievable. With near  silent operation, a fresh design and reducing the requirement for trickle ventilators, it not only helps reduce DER’s  in SAP, but fits discreetly in modern homes and is simple to design in.

   W:     www.vent-axia.com Lo-Carbon Residential Fans Homeowners choice The attractive and discreet styling of the Vent-Axia Centra will complement  the décor of any new home. Virtually silent operation ensures optimum ventilation is achieved without  intrusive noise. With Lo-Carbon motors energy bills will be reduced - less than £1.50 a  year to run.  The Environment Long life motors – 5 years warranty means fewer replacements. Low energy use – Lo-Carbon motors and computer designed impellers  means up to 90% savings over traditional motors. One size fits all – no components to dispose of at installation stage – again  reducing wastage. Plastic components are 100% recyclable. WINNER 2011 Winners of the Energy Efficiency Initiative 2011 Award  with our Lo-Carbon Continuous Ventilation Product Range.

   W:     www.vent-axia.com Lo-Carbon Residential Fans Performance Guide Dimensions (mm) Accessories Model Stock  Ref Wall fitting kit – white   254102 Wall fitting kit – brown   254100 150mm to 100mm diameter adaptor  443334 Easy Fix 100mm Window Fitting Kit   442947 Ceiling adaptor   443800 Transformer (W x H x D) 87 x 87 x 33 Extract Performance (l/s) Power consumption (Watts) Sound dB(A)@ 3m Trickle  Trickle Trickle  Trickle Trickle  Trickle  Model low high Boost low high Boost low high Boost Lo-Carbon Centra 6 9 15 1.4 1.6 2.4 10.8 15.5 25.2 Lo-Carbon Centra/SELV T 6 9 15 1.4 1.6 2.4 10.8 15.5 25.2    Lo-Carbon Centra/SELV TP 6 9 15 1.4 1.6 2.4 10.8 15.5 25.2 Lo-Carbon Centra/SELV HT 6 9 15 1.4 1.6 2.4 10.8 15.5 25.2 Lo-Carbon Centra/SELV HTP 6 9 15 1.4 1.6 2.4 10.8 15.5 25.2 Lo-Carbon Centra CO 2 6 9 15 1.4 1.6 2.4 10.8 15.5 25.2 Systems With Rigid Ductwork, Flexible Or Mixed Ductwork Installation Unit Configuration Location Fan Speed Setting Specific Fan Power (W/l/s) In Room (Ducted) Kitchen  High 0.32 In Room (Ducted) Wet Room 9 L/s 0.28 Through Wall  Kitchen  High 0.18 Through Wall Wet Room 9 L/s 0.20 SAP Appendix Q Performance 160 160 160 160 35 115 90Ø 115 35 99 Ø WINNER 2011 Winners of the Energy Efficiency Initiative 2011 Award  with our Lo-Carbon Continuous Ventilation Product Range.

VENT-AXIA CONTACT NUMBERS Free technical, installation  and  sales advice is available Sales Centre: Domestic & Commercial     Sales Tel:  0844 856 0590   Sales Fax:  01293 565169   Tech Support Tel:  0844 856 0594   Tech Support Fax:   01293 539209 Industrial   Sales Tel:  0844 856 0591   Sales Fax:   01293 534898   Tech Support Tel:  0844 856 0595   Tech Support Fax:  01293 455197   Web: www.vent-axia.com   Email:  [email protected] By Appointment to H.M. The Queen Suppliers of Unit Ventilation Equipment Vent-Axia, Crawley, West Sussex 402216/1111 Supply & Service All sales made by Vent-Axia Limited are made only upon  the terms of the Company’s Conditions of Sale, a copy of  which may be obtained on request. As part of the policy of  continuous product improvement Vent-Axia reserves the right  to alter specifications without notice.
