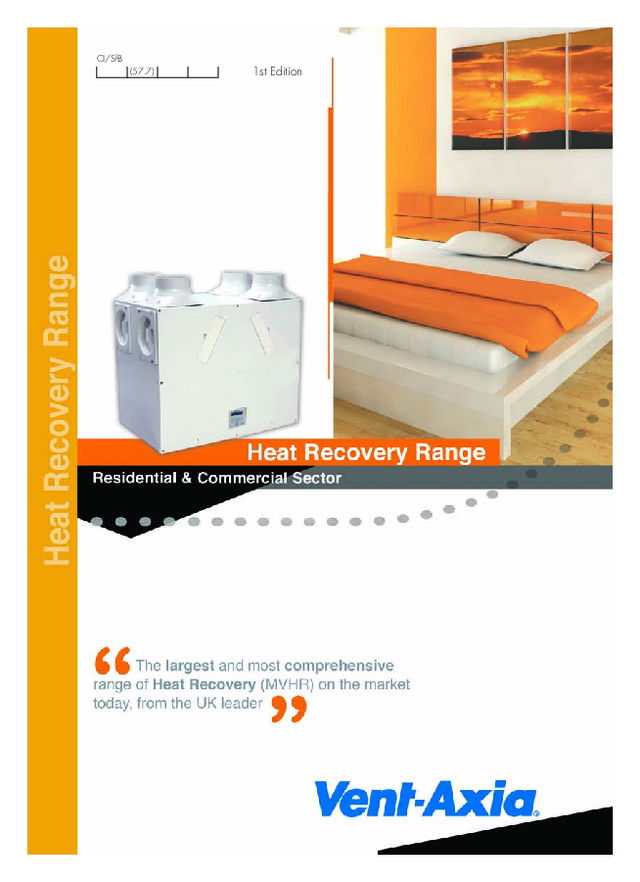

Vent-Axia - Heat Recovery Range

1st Edition (57.7) CI/SfB Heat Recovery Range - 1st Editio1   1 14/6/10   09:15:25

Live and breathe the difference As  our  market  continues  to  evolve,  the top manufacturers in the sector must raise their  game  and  provide  the  product, sales  and  technical  support  you  need to  succeed.  And,  as  the  UK’s  premier domestic,  commercial,  and  industrial ventilation company, that’s precisely what Vent-Axia is all about. We are therefore please to present an overview of our heat recovery range which we believe is the most  comprehensive  offer  anywhere  in the world. What is heat recovery?Mechanical ventilation with heat recovery (MVHR) is a method of ventilating a  building  and  recovering  the  heat  that  would  otherwise  be  exhausted  to atmosphere. Air that is extracted from the building is passed through a heat exchanger which can capture over 90% of the heat. Fresh replacement air is then bought through the heat exchanger recovering that heat and bringing it back into the building. It can be either through a central ducted unit or a single room unit (dMVHR), but the principle is the same. Why is it needed?New  Building  Regulations  across  Europe  are  now  requiring  tighter,  better insulated  homes  and  buildings.  As  they  become  more  efficient  greater importance is placed on ventilating them effectively and efficiently and MVHR provides one of the best ways of providing it. Why Us?With  an  unsurpassed  product  offer,  including  centralised  systems  all  the way  from  a  small  apartment  up  to  and  including  commercial  an  industrial applications, Vent-Axia have a solution. This overview shows the continued investment in products and services we are specifically making in our comprehensive range.  Vent-Axia  is  here  to  help  you  right  through  the  design,  specification  and installation  process,  whatever  your  application.  Backed  by  a  UK  wide  70 strong sales team and an unrivalled technical support group based here in Crawley,  we  also  have  developed  a  comprehensive  network  of  overseas distributors and continue to seek other overseas opportunities.  Our commitment to quality and service runs right through the core of the business, and through our supply chain to you, our customers.  Vent-Axia – the First Name in Ventilation. Ronnie GeorgeManaging Director Employing  over  800  people  across  4  manufacturing  sites,  we  continue  to invest in UK manufacturing. Being in control of manufacture of the component parts including motors and mouldings all within the UK, we reduce our lead times as well as our carbon footprint.  Swindon   -  LoWatt  DC  Motor  manufacture 80,000 sq ft factoryOver 1 million motors supplied into  the  HVAC  market  every yearThe key provider of our LoWatt technology Reading   -  Plastic  Moulding  and  extrusion manufacture 50,000  sq  ft  injection  and extrusion  factory  running  24 hours a day Over 30 injection moulding machines 5 extrusion lines for rigid and flexible duct Dudley  - Systems and Industrial manufacture Our largest site with 120,000 sq feet of manufacturing and  warehousing spaceManufacturing base for our metal products including Sentinel     Demand Ventilation and Sentinel TotusAlso the home of our heat recovery (MVHR) and Multivent (MEV)  products Crawley  - Unitary plastic fan manufacture Manufacture of plastic ventilation ranges Design and test facilities for rigorous product testing including safety,  airflow and climate chambers – BEAB approvedHead  Office  functions  including  Sales  Office, Customer  Services,  Technical  Support  and Marketing New Building Regulation and the Lo-Carbon RangeThe  new  building  regulation  consultations  covering Part  F  and  L  continue  to  drive  energy  efficiency  and now state minimum energy efficiency for all ventilation systems. This includes for the first time a specific fan power  (watts  per  l/s)  for  intermittent  fans  for  both  refurbishment  and  new build. •• • • •• • • • •• • Heat Recovery Range - 1st Editio2   2 14/6/10   09:15:28

At  Vent-Axia  we  have  a  history  of  innovation.  When  you  look  at  our  heritage,  it  soon  becomes  clear  we  have been the First name in Ventilation  since our inception 1936 – Maritime engineer Joe Akester  invented  the  unitary  extractor  fan  ‘Silent 6’ made from Bakelite material.  The  original  products  featured  DC  motors.  1945 – Following the Second World War, Sir Winston Churchill bought two Silent 6 fans  for his Chartwell home. A copy of the cheque for £28.19s 8p is in Vent-Axia’s reception  area at Crawley.  1953  –  The  ‘X  type’  fan  was  produced  in  4  sizes  and  the  unique  ‘R  type’  controller  enabled the fans to be reversed for the first time. 1961  –  Vent-Axia  Standard  Range  was  launched  and  applications  became  more  varied with the first dedicated models for roof and wall mounting and even a model for  commercial and military vehicles. 1975  –  The  Universal  fan  range  featured  the  first  ‘centrifugal’  shutter  mechanism  that  allowed the shutters to operate in both directions without pull-cords. 1985 – The T Series’ product range featured a patented DC solenoid shutter and offered  unique applications like In-Line and Dark Room models. Accessories like the Direct Mount  Spigot and wall terminations also enabled the fans to be used with ducting as a complete  installation kit. 1985 – Vent-Axia was the first, (in fact the only) fan company to be awarded the Royal  Warrant by the Queen for supplying unit ventilation to Royal Households. 1992 – The 16th edition of IEE regulations ‘on site guide’ was issued and Vent-Axia  launched  the  first  Safety  Extra  Low  Voltage  fan  to  meet  the  requirements  for  electrical  safety in bathrooms. 1994 – The patented LuminAire became the first fan and light combination and its IP57  protection made the unit electrically safe for shower installation.  1997 – Domestic energy efficient ventilation began with the launch of the LoWatt range  featuring a DC motor and patented shutter system that used no additional power.  2002  -  Commercial  fans  became  energy  efficient  with  LoWatt  T  Series  launched  at  Interbuild in Birmingham.  2006 – The Sentinel range was developed as the first ‘demand’ ventilation system with  energy efficient EC/DC motors. 2007  –  Vent-Axia  launched  the  first  complete  Lo-Carbon  ventilation  range  featuring  Residential Fans, MEV, MVHR and Commercial Energy Efficient products.  2008 – As part of the Sentinel family, Totus Demand Energy Recovery became the first  low  energy  commercial  ventilation  system  with  a  90%  efficient  energy  recovery  and  EC/DC motor. 2009 – Sentinel Kinetic becomes the first Lo-Carbon heat recovery with 90% heat recovery  and cooker hood facility. Vent-Axia  Firsts t:  0844 856 0590  e:  [email protected]  w:  www.vent-axia.com Heat Recovery Range - 1st Editio3   3 14/6/10   09:15:32

MVHR SYSTEMS Part F compliant, System 4 continuous Mechanical Ventilation with Heat Recovery Normal, Boost & Purge speeds LoWatt motor offering 90% energy savings and long life • • • Astra Controls condensation and odours Up to 70% heat recovery Eliminates mould growth Prevents noise ingress • • • • HR204   Building Regulations Part F compliant Ideal for small apartments Built in cooker hood Up to 92% heat recovery whilst controlling condensation • • • • Kinetic Hood SAP Q Eligible - specific fan powers down to 0.49 and 92% efficient Light weight for easy installation Easy access filters Ideal for Student Accommodation • • • • Kinetic Plus Up to 3 Bed House or Flat Up to 3 Bed House or Flat SAP Q Eligible - specific fan powers down to 0.72 Compact and quiet. Light weight for easy installation. Easy access filters. • • • • Kinetic Up to 4 Bed House or Flat Up to 4 Bed House or Flat Up to 7 Bed House, Flat or Commercial Powered heat recovery unit for smaller residential or commercial applications up to 160m 3 Up to 70% heat recovery Meets new Building Regulations Extremely quiet on low speed • • • • Integra Up to 3 Bed House or Light Commercial Heat Recovery Range - 1st Editio4   4 14/6/10   09:15:45

8 unit sizes Up to 1m 3 /s Up to 65% heat recovery (EN308) Inbuilt summer bypass  • • • • Verto  coming soon Passive - no fans Up to 70% heat recovery Lightweight Polymeric heat exchanger Spigots to suit 150mmØ ducting and accessories • • • • HRX4 3 unit sizes covering 500-2000m 3 /h Sentinel demand ventilation control Low energy EC/DC motors Ideal for schools & for reducing heating demand Up to 90% heat recovery (EN308) • • • • • Totus Powered heat recovery module for smaller   commercial applications Up to 70% heat recovery With 150mm duct connection Quiet operation • • • • HR200V Powered heat recovery unit for larger residential or commercial applications Up to 70% heat recovery 3 speed control Quiet operation • • • • Integra Plus Large House, Flat or Commercial  Commercial  Up to 3 Bed House or Light Commercial Commercial  Commercial  Balanced supply and extraction Up to 70% Heat Recovery Spigots to suit 150mm Ducting Lightweight Polymeric construction • • • • HR300RW6 Commercial  t:  0844 856 0590  e:  [email protected]  w:  www.vent-axia.com Heat Recovery Range - 1st Editio5   5 14/6/10   09:15:51

Single room heat recovery ventilation unit 3 speed motor Integral washable filter • • • HR200WK Single Room Residential & Commercial D-MVHR  - single room  Fits in 100mm diameter hole – ideal for refurbishments Up to 70% heat recovery Reduces your carbon footprint Summer bypass • • • • Tempra Single Room Residential Reduces your carbon footprint Designed for installations in bathrooms, toilets and utility areas 84% temperature based heat recovery Up to 90% energy saving • • • • HR25 Single Room Residential   Controls condensation and odours - saves energy Eliminates mould growth Up to 70% Heat Recovery Extremely quiet operation. • • • • HR100RS Single Room Residential Single room domestic heat recovery ventilation unit Saves energy - controls condensation Up to 60% heat recovery Extremely quiet trickle ventilation mode • • • • HR100S Single Room Residential Single room domestic heat recovery ventilation unit Up to 70% heat recovery Meets new Building Regulations Humidistat version • • • • HR100W/WH Single Room Residential Heat Recovery Range - 1st Editio6   6 14/6/10   09:15:57

Accessories t:  0844 856 0590  e:  [email protected]  w:  www.vent-axia.com Designed for continuous operation, providing up to 70% heat recovery Controls condensation and eliminates mould Speed controllable • • • HR300 Single Room Commercial HumidistatsPIRTimersAir Quality SensorsTrickle / Boost Switches  and RelaysCO 2  sensors •••••• Controls   Full range of ducting with bends, connectors and ancillaries  204 x 60 and 110 x 50 ideal for installation in ceiling voids Made from recycled plastic  • • • Rigid Ducting Fast fix semi rigid ducting  Integrated gasketed mechanical sealing system Low air leakage simplifying installation  • • • Fast Duct Self-contained unit with integral fans Up to 70% heat recovery Compatible with 315, 250 and 200mmØ, ducting and accessories External wall mounting • • • • HR500 Single Room Commercial Heat Recovery Range - 1st Editio7   7 14/6/10   09:16:06

VENT-AXIA CONTACT NUMBERS Free technical, installation and sales advice is available Sales Centre: Domestic & Commercial     Sales Tel:  0844 856 0590   Sales Fax:  01293 565169   Tech Support Tel:  0844 856 0594   Tech Support Fax:   01293 539209 Industrial   Sales Tel:  0844 856 0591   Sales Fax:   01293 534898   Tech Support Tel:  0844 856 0595   Tech Support Fax:   01293 455197   Web:  www.vent-axia.com   Email:   [email protected] Supply & Service All  sales  made  by  Vent-Axia  Limited  are  made  only  upon  the  terms  of  the  Company’s  Conditions  of  Sale,  a  copy  of  which may be obtained on request. As part of the policy of  continuous product improvement Vent-Axia reserves the right to  alter specifications without notice. By Appointment to H.M. The Queen Suppliers of Unit Ventilation Equipment Vent-Axia, Crawley, West Sussex 402214/0510 Heat Recovery Range - 1st Editio8   8 14/6/10   09:16:12
